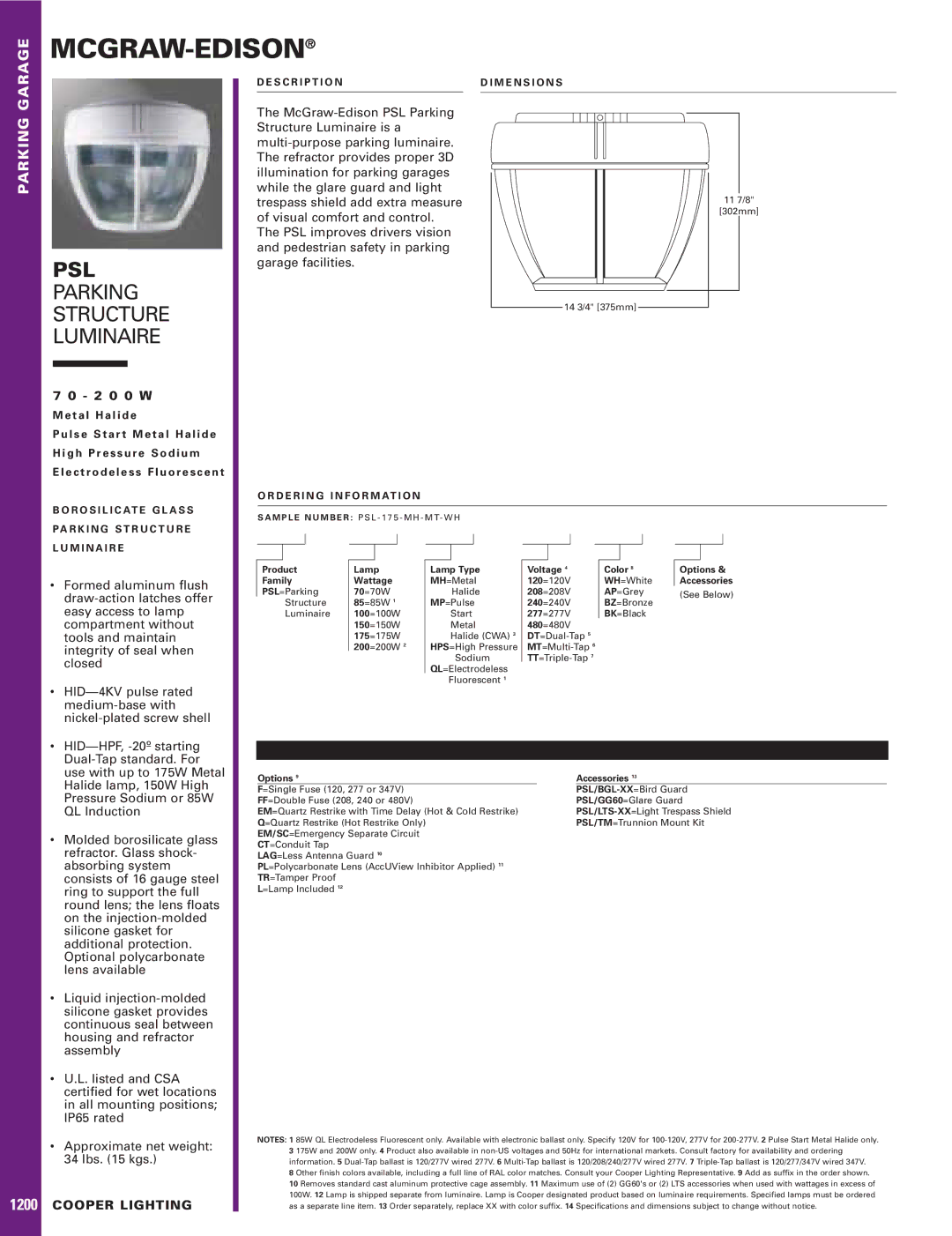

PARKING

PSL

PARKING

STRUCTURE

LUMINAIRE

7 0 - 2 0 0 W M e t a l H a l i d e

P u l s e S t a r t M e t a l H a l i d e H i g h P r e s s u r e S o d i u m

E l e c t r o d e l e s s F l u o r e s c e n t

The McGraw-Edison PSL Parking Structure Luminaire is a multi-purpose parking luminaire. The refractor provides proper 3D illumination for parking garages while the glare guard and light trespass shield add extra measure of visual comfort and control.

The PSL improves drivers vision and pedestrian safety in parking garage facilities.

11 7/8"

[302mm]

14 3/4" [375mm]

B O R O S I L I C AT E G L A S S PA R K I N G S T R U C T U R E L U M I N A I R E

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : P S L - 1 7 5 - M H - M T- W H

•	Formed aluminum flush
	draw-action latches offer
	easy access to lamp
	compartment without
	tools and maintain
	integrity of seal when
	closed
•	HID—4KV pulse rated
	medium-base with
	nickel-plated screw shell
•	HID—HPF, -20º starting
	Dual-Tap standard. For
	use with up to 175W Metal

Product

Family

PSL=Parking

Structure

Luminaire

Lamp Wattage 70=70W

85=85W 1

100=100W

150=150W

175=175W

200=200W 2

Lamp Type

MH=Metal

Halide

MP=Pulse

Start

Metal

Halide (CWA) 3

HPS=High Pressure

Sodium

QL=Electrodeless

Fluorescent 1

Voltage 4

120=120V

208=208V

240=240V

277=277V

480=480V

DT=Dual-Tap 5 MT=Multi-Tap 6 TT=Triple-Tap 7

Color 8

WH=White

AP=Grey

BZ=Bronze

BK=Black

Options & Accessories

(See Below)

1200

	Halide lamp, 150W High
	Pressure Sodium or 85W
	QL Induction
•	Molded borosilicate glass
	refractor. Glass shock-
	absorbing system
	consists of 16 gauge steel
	ring to support the full
	round lens; the lens floats
	on the injection-molded
	silicone gasket for
	additional protection.
	Optional polycarbonate
	lens available
• Liquid injection-molded
	silicone gasket provides
	continuous seal between
	housing and refractor
	assembly
• U.L. listed and CSA
	certified for wet locations
	in all mounting positions;
	IP65 rated
•	Approximate net weight:
	34 lbs. (15 kgs.)

COOPER LIGHTING

Options 9	Accessories 13
F=Single Fuse (120, 277 or 347V)		PSL/BGL-XX=Bird Guard
FF=Double Fuse (208, 240 or 480V)	PSL/GG60=Glare Guard
EM=Quartz Restrike with Time Delay (Hot & Cold Restrike)	PSL/LTS-XX=Light Trespass Shield
Q=Quartz Restrike (Hot Restrike Only)	PSL/TM=Trunnion Mount Kit
EM/SC=Emergency Separate Circuit
CT=Conduit Tap
LAG=Less Antenna Guard 10
PL=Polycarbonate Lens (AccUView Inhibitor Applied) 11
TR=Tamper Proof
L=Lamp Included 12

NOTES: 1 85W QL Electrodeless Fluorescent only. Available with electronic ballast only. Specify 120V for 100-120V, 277V for 200-277V. 2 Pulse Start Metal Halide only. 3 175W and 200W only. 4 Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 5 Dual-Tap ballast is 120/277V wired 277V. 6 Multi-Tap ballast is 120/208/240/277V wired 277V. 7 Triple-Tap ballast is 120/277/347V wired 347V.
