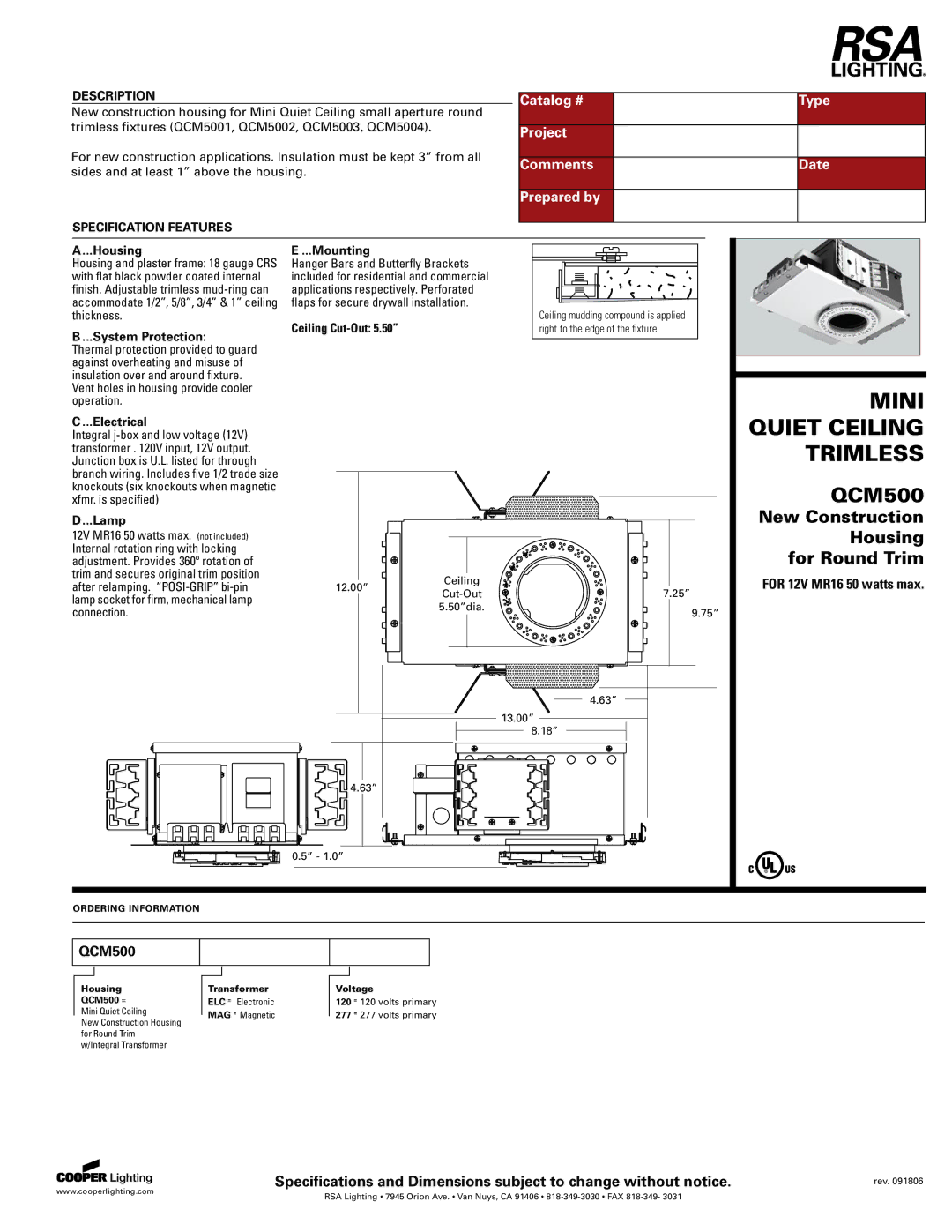

DESCRIPTION



































































Catalog #





















Type

New construction housing for Mini Quiet Ceiling small aperture round





















































trimless fixtures (QCM5001, QCM5002, QCM5003, QCM5004).























































Project



























































For new construction applications. Insulation must be kept 3” from all























































Comments





















Date

sides and at least 1” above the housing.

















































































































































Prepared by

























SPECIFICATION FEATURES

















































































































































































A....Housing

E....Mounting









































































































Housing and plaster frame: 18 gauge CRS

Hanger Bars and Butterfly Brackets





















































with flat black powder coated internal

included for residential and commercial





















































finish. Adjustable trimless mud-ring can

applications respectively. Perforated

















































































































































































































accommodate 1/2”, 5/8”, 3/4” & 1” ceiling

flaps for secure drywall installation.









































































































thickness.

Ceiling Cut-Out: 5.50”





Ceiling mudding compound is applied















B....System Protection:





right to the edge of the fixture.









































































Thermal protection provided to guard



























































against overheating and misuse of



























































insulation over and around fixture.





















































































































Vent holes in housing provide cooler























































MINI

operation.























































Integral j-box and low voltage (12V)





















































QUIET CEILING

C....Electrical























































TRIMLESS

Junction box is U.L. listed for through























































transformer . 120V input, 12V output.



























































branch wiring. Includes five 1/2 trade size





















































































































knockouts (six knockouts when magnetic























































QCM500

xfmr. is specified)













































































































D....Lamp







New Construction

12V MR16 50 watts max. (not included)







Housing

Internal rotation ring with locking







for Round Trim

adjustment. Provides 360º rotation of







trim and secures original trim position



Ceiling



FOR 12V MR16 50 watts max.

after relamping. “POSI-GRIP” bi-pin

12.00”

7.25”

Cut-Out

lamp socket for firm, mechanical lamp







5.50”dia.





connection.





9.75”













4.63”









13.00”









8.18”





4.63”









0.5” - 1.0”







ORDERING INFORMATION









QCM500

__

__

Housing

QCM500 = Mini Quiet Ceiling

New Construction Housing for Round Trim w/Integral Transformer

Transformer

ELC = Electronic

MAG = Magnetic

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1
