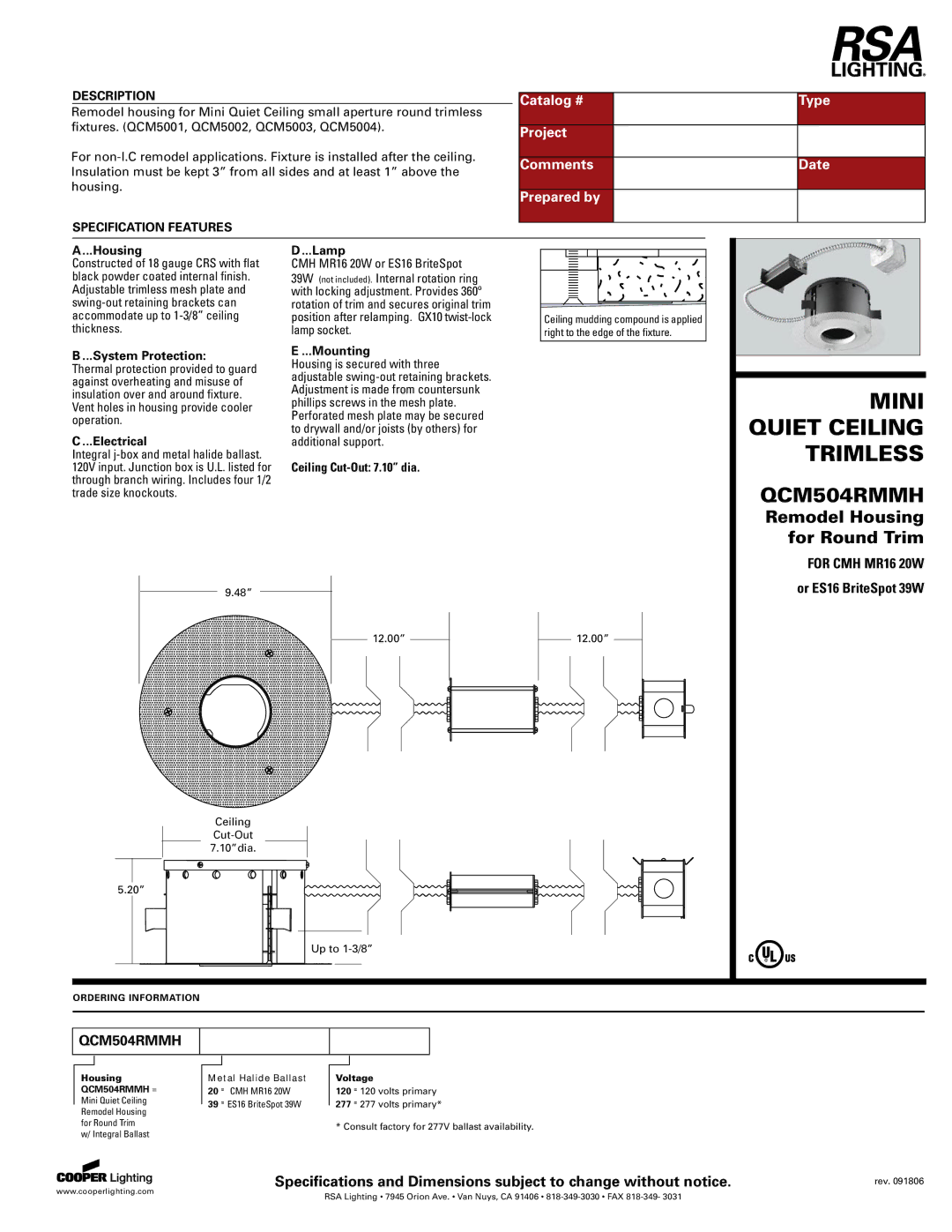

DESCRIPTION

















































Catalog #















Type

Remodel housing for Mini Quiet Ceiling small aperture round trimless







































fixtures. (QCM5001, QCM5002, QCM5003, QCM5004).









































Project



















































For non-I.C remodel applications. Fixture is installed after the ceiling.









































Comments















Date

Insulation must be kept 3” from all sides and at least 1” above the























































housing.

















































Prepared by



















































SPECIFICATION FEATURES







































































































































A....Housing

D....Lamp







































Constructed of 18 gauge CRS with flat

CMH MR16 20W or ES16 BriteSpot







































black powder coated internal finish.

39W (not included). Internal rotation ring































































































































































































Adjustable trimless mesh plate and

with locking adjustment. Provides 360º































































































































































































swing-out retaining brackets can

rotation of trim and secures original trim



















































































































accommodate up to 1-3/8” ceiling

position after relamping. GX10 twist-lock





Ceiling mudding compound is applied











thickness.

lamp socket.





right to the edge of the fixture.











B....System Protection:

E....Mounting













































































Housing is secured with three







































Thermal protection provided to guard







































adjustable swing-out retaining brackets.







































against overheating and misuse of













































































Adjustment is made from countersunk







































insulation over and around fixture.



































MINI

phillips screws in the mesh plate.



































Vent holes in housing provide cooler



































operation.

Perforated mesh plate may be secured

































QUIET CEILING

to drywall and/or joists (by others) for

































C....Electrical

































additional support.



































TRIMLESS

Integral j-box and metal halide ballast.

Ceiling Cut-Out: 7.10” dia.



































120V input. Junction box is U.L. listed for







































through branch wiring. Includes four 1/2





































QCM504RMMH

trade size knockouts.

















































































Remodel Housing













































for Round Trim















































FOR CMH MR16 20W















































or ES16 BriteSpot 39W





9.48”





















































































12.00”

12.00”

Ceiling

Cut-Out

7.10”dia.

5.20”

Up to 1-3/8”

ORDERING INFORMATION

QCM504RMMH

__

__

Housing QCM504RMMH = Mini Quiet Ceiling Remodel Housing for Round Trim

w/ Integral Ballast

Metal Halide Ballast

20 = CMH MR16 20W

39 = ES16 BriteSpot 39W

Voltage

120 = 120 volts primary

277 = 277 volts primary*

* Consult factory for 277V ballast availability.

Specifications and Dimensions subject to change without notice.

rev. 091806

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
