DESCRIPTION









Catalog #

Type

Insulated ceiling AirTite housing for Quiet Ceiling round trimless fixtures.







For 12V MR16 50 watts max.









Project









For insulated ceiling applications. Rated for direct contact with insulation









Comments

Date

material.









Prepared by

SPECIFICATION FEATURES







A....Housing







Housing and plaster frame: 18 gauge CRS







with flat black powder coated internal







finish. Adjustable trimless mud-ring can







accommodate 1/2”, 5/8”, 3/4” & 1” ceiling







thickness.



Ceiling mudding compound is applied



B....System Protection:



right to the edge of the fixture.









Thermal protection provided.







C....Electrical







Integral j-box and electronic or magnetic





QUIET CEILING

input, 12V output. Junction box is





low voltage transformer . 120V or 277V





TRIMLESS

Includes five 1/2 trade size knockouts





U.L. listed for through branch wiring.







(six knockouts when magnetic xfmr. is







specified).





QCT902IC

D....Lamp









Insulated Ceiling

12V MR16 71 watts max. (not included)





Internal rotation ring with locking





AirTite Housing

adjustment. Provides 360º rotation of





for Round Trim

trim and secures original trim position





after relamping. “POSI-GRIP” bi-pin







lamp socket for firm, mechanical lamp

Ceiling



FOR 12V MR16 50W max.

connection.

Cut-Out

8.25”







5.50”dia.

10.75”



E....Mounting

Hanger Bars and Butterfly Brackets included for residential and commercial applications respectively. Perforated flaps for secure drywall installation.

Ceiling Cut-Out: 5.50” dia.

14.13”



7.50”

0.5” - 1.0”

17.13”

ORDERING INFORMATION

QCT902IC

Housing

QCT902IC =

Quiet Ceiling

Insulated Ceiling Housing AirTite for Round Trim w/ Integral Low Voltage Transformer

Transformer

ELC = Electronic

MAG = Magnetic

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev. 030108

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1

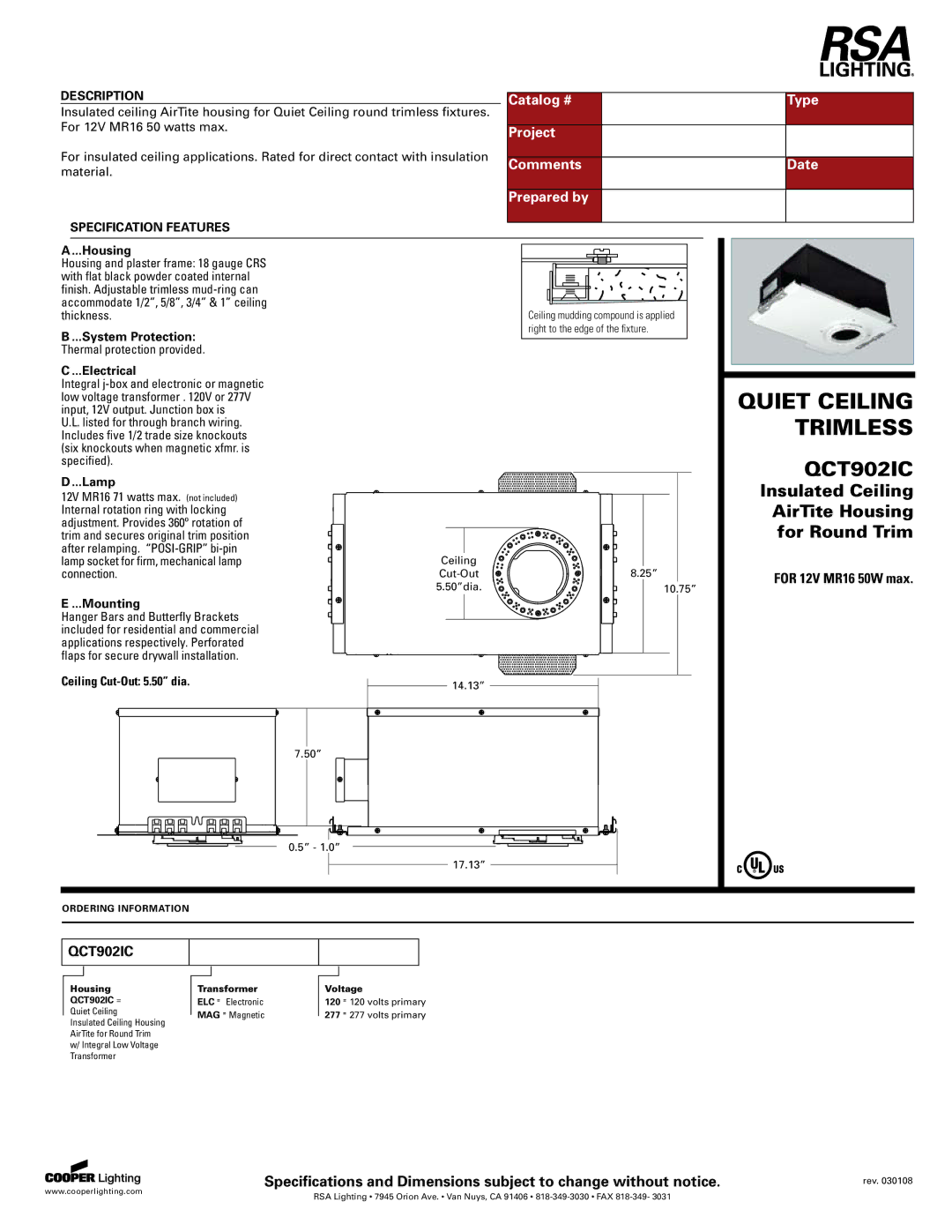

Image 1
