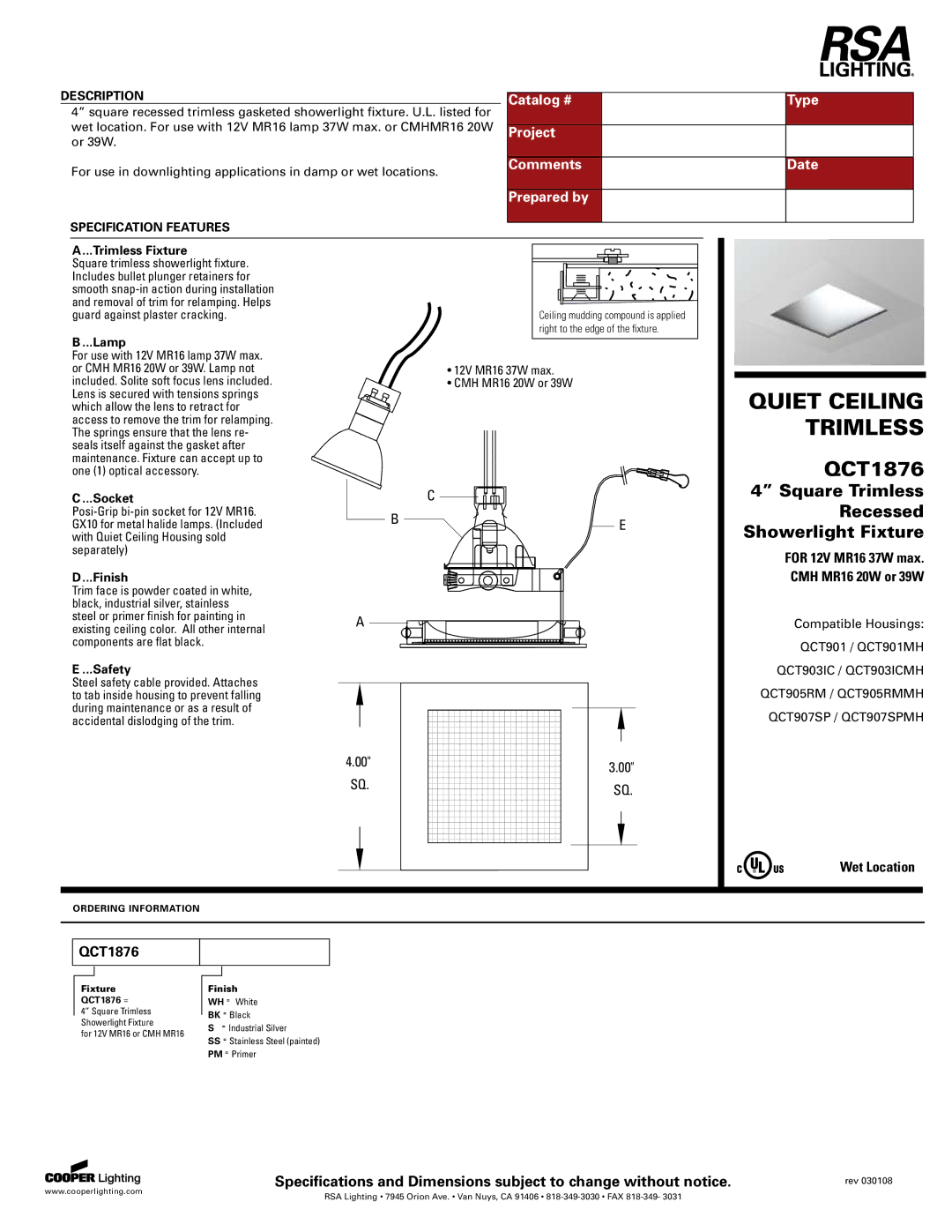

| DESCRIPTION |
| Catalog # | Type |
4” square recessed trimless gasketed showerlight fixture. U.L. listed for |
| ||
wet location. For use with 12V MR16 lamp 37W max. or CMHMR16 20W Project |
| ||
or 39W. |
|
|
|
For use in downlighting applications in damp or wet locations. | Comments | Date | |
|
| ||
|
| Prepared by |
|
| SPECIFICATION FEATURES |
|
|
|
| A....Trimless Fixture |
|
|
|
Square trimless showerlight fixture. |
|
|
|
Includes bullet plunger retainers for |
|
|
|
smooth |
|
|
|
and removal of trim for relamping. Helps |
|
|
|
guard against plaster cracking. |
| Ceiling mudding compound is applied |
|
| B....Lamp |
| right to the edge of the fixture. |
|
|
|
| |
For use with 12V MR16 lamp 37W max. |
|
|
|
or CMH MR16 20W or 39W. Lamp not |
| • 12V MR16 37W max. |
|
included. Solite soft focus lens included. |
| • CMH MR16 20W or 39W |
|
Lens is secured with tensions springs |
|
| QUIET CEILING |
which allow the lens to retract for |
|
| |
access to remove the trim for relamping. |
|
| TRIMLESS |
The springs ensure that the lens re- |
|
| |
seals itself against the gasket after |
|
|
|
maintenance. Fixture can accept up to |
|
| QCT1876 |
one (1) optical accessory. |
|
| |
| C....Socket | C |
| 4” Square Trimless |
B |
| Recessed | |
GX10 for metal halide lamps. (Included | E | Showerlight Fixture | |
with Quiet Ceiling Housing sold |
|
| |
separately) |
|
| FOR 12V MR16 37W max. |
|
|
| |
| D....Finish |
|
| CMH MR16 20W or 39W |
Trim face is powder coated in white, |
|
|
|
black, industrial silver, stainless |
|
|
|
steel or primer finish for painting in | A |
| Compatible Housings: |
existing ceiling color. All other internal |
| ||
|
|
| |
components are flat black. |
|
| QCT901 / QCT901MH |
|
|
| |
| E....Safety |
|
| QCT903IC / QCT903ICMH |
Steel safety cable provided. Attaches |
|
| QCT905RM / QCT905RMMH |
to tab inside housing to prevent falling |
|
| |
during maintenance or as a result of |
|
| QCT907SP / QCT907SPMH |
accidental dislodging of the trim. |
|
| |
| 4.00" | 3.00" |
|
|
|
| |
| SQ. | SQ. |
|
|
|
| |
Wet Location
ORDERING INFORMATION
QCT1876
Fixture
QCT1876 =
4” Square Trimless
Showerlight Fixture
for 12V MR16 or CMH MR16
Finish
WH = White
BK = Black
S= Industrial Silver
SS= Stainless Steel (painted) PM = Primer
Specifications and Dimensions subject to change without notice.
rev 030108
