DESCRIPTION

Catalog #

Type

4” round recessed trimless gasketed showerlight fixture. U.L. listed for



wet location. For use with 12V MR16 lamp 37W max. or CMHMR16 20W Project



or 39W.





For use in downlighting applications and wet locations.

Comments

Date







Prepared by



SPECIFICATION FEATURES





A....Trimless Fixture





Round trimless showerlight fixture.





Includes bullet plunger retainers for





smooth snap-in action during installation





and removal of trim for relamping. Helps





guard against plaster cracking.

Ceiling mudding compound is applied



B....Lamp

right to the edge of the fixture.







For use with 12V MR16 lamp 37W max.





or CMH MR16 20W or 39W. Lamp not

• 12V MR16 37W max.



included. Solite soft focus lens. Lens is

• CMH MR16 20W or 39W



secured with tensions springs which



QUIET CEILING

allow the lens to retract for access



to remove the trim for relamping.



TRIMLESS

The springs ensure that the lens re-



seals itself against the gasket after





maintenance. Fixture can accept up to



QCT1976

one (1) optical accessory.









C



4” Round Trimless



B







C....Socket







Recessed







F

Posi-Grip bi-pin socket for 12V MR16.







Showerlight Fixture









GX10 for metal halide lamps. (Included









with Quiet Ceiling Housing sold









FOR 12V MR16 37W max.

separately)



D











CMH MR16 20W or 39W

D....Finish



















Trim face is powder coated in white,

A









black, industrial silver, stainless







Compatible Housings:









steel or primer finish for painting in



















existing ceiling color. All other internal









QCT900 / QCT900MH

components are flat black.



















E....Safety







QCT902IC / QCT902ICMH







QCT904RM / QCT904RMMH

Steel safety cable provided. Attaches



















to tab inside housing to prevent falling











QCT906SP / QCT906SPMH

during maintenance or as a result of











accidental dislodging of the trim.























4.00"





3.00"



DIA.



DIA.

Wet Location

ORDERING INFORMATION

QCT1976

Fixture

QCT1976 =

4” Round Trimless Showerlight Fixture for 12V MR16, CMH- MR16, or ES16MH

Finish

WH = White

BK = Black

S= Industrial Silver

SS= Stainless Steel (painted) PM = Primer

Specifications and Dimensions subject to change without notice.

rev 030108

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1

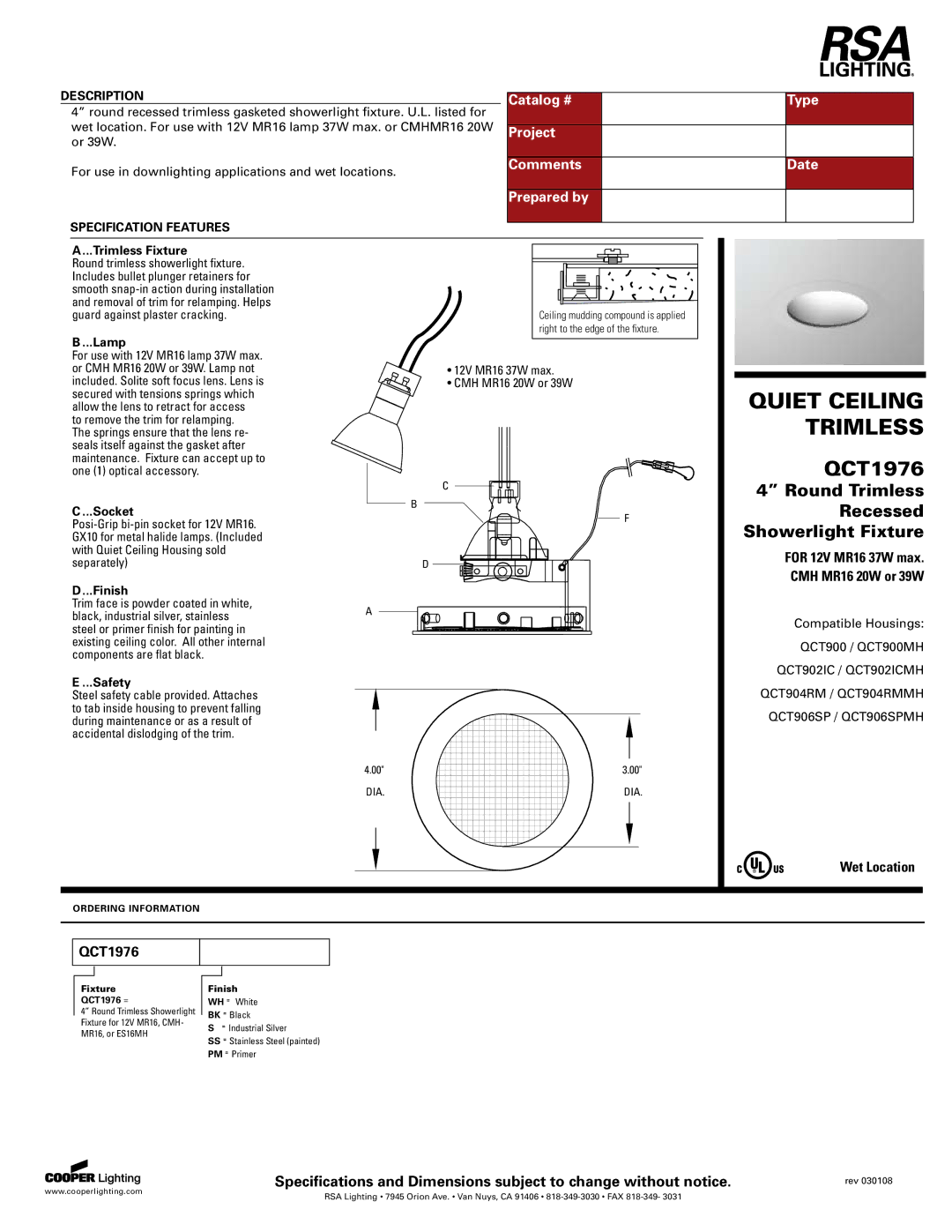

Image 1
