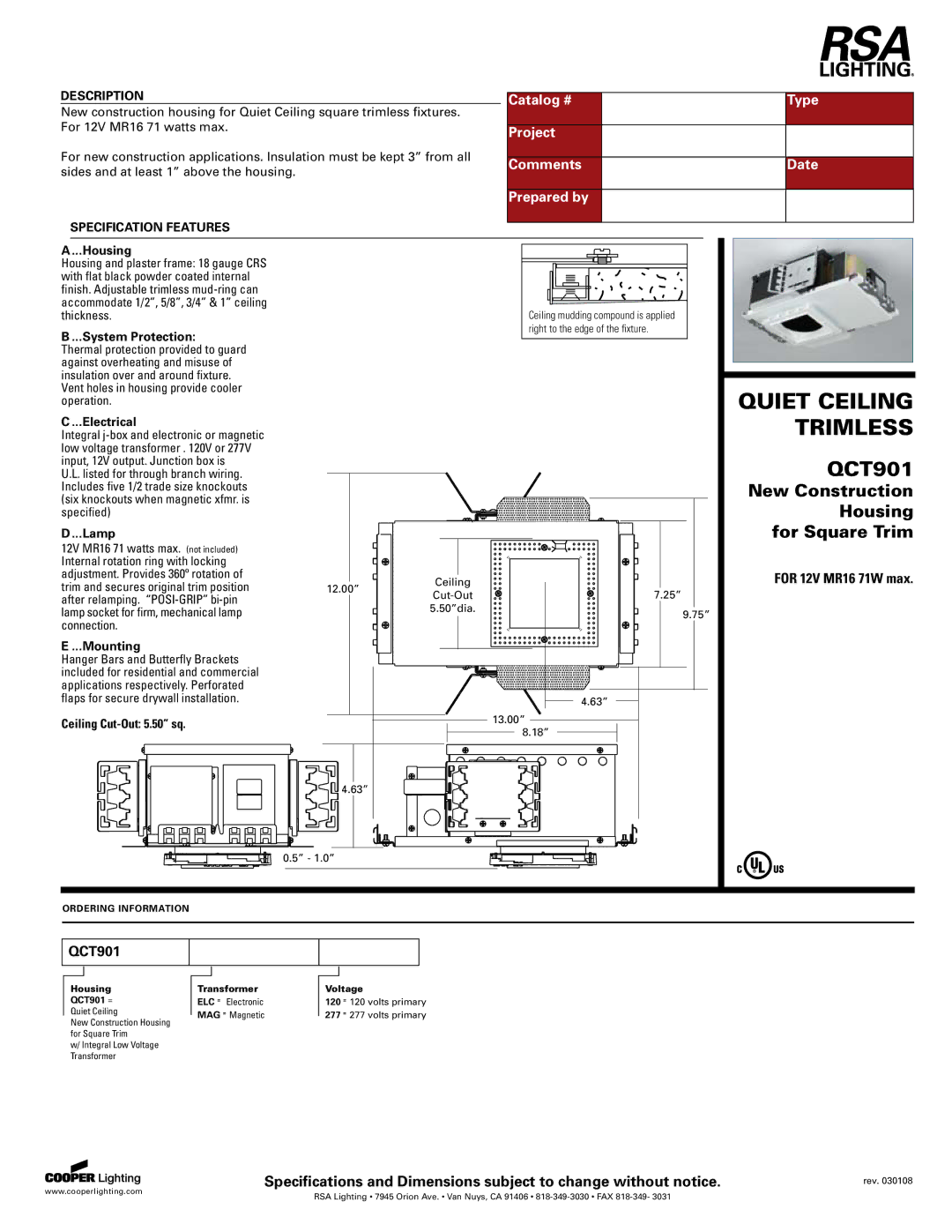

DESCRIPTION

Catalog #

Type

New construction housing for Quiet Ceiling square trimless fixtures.





For 12V MR16 71 watts max.

Project







For new construction applications. Insulation must be kept 3” from all

Comments

Date

sides and at least 1” above the housing.







Prepared by



SPECIFICATION FEATURES





A....Housing





Housing and plaster frame: 18 gauge CRS





with flat black powder coated internal





finish. Adjustable trimless mud-ring can





accommodate 1/2”, 5/8”, 3/4” & 1” ceiling





thickness.

Ceiling mudding compound is applied



B....System Protection:

right to the edge of the fixture.







Thermal protection provided to guard





against overheating and misuse of





insulation over and around fixture.





Vent holes in housing provide cooler



QUIET CEILING

operation.



Integral j-box and electronic or magnetic



TRIMLESS

C....Electrical





low voltage transformer . 120V or 277V





input, 12V output. Junction box is



QCT901

U.L. listed for through branch wiring.



Includes five 1/2 trade size knockouts



New Construction

(six knockouts when magnetic xfmr. is



Housing

specified)



D....Lamp



for Square Trim

12V MR16 71 watts max. (not included)







Internal rotation ring with locking







adjustment. Provides 360º rotation of

12.00”

Ceiling

FOR 12V MR16 71W max.

trim and secures original trim position

Cut-Out

7.25”

after relamping. “POSI-GRIP” bi-pin





5.50”dia.



lamp socket for firm, mechanical lamp



9.75”

connection.







E....Mounting







Hanger Bars and Butterfly Brackets







included for residential and commercial







applications respectively. Perforated







flaps for secure drywall installation.





4.63”

Ceiling Cut-Out: 5.50” sq.





13.00”







8.18”



4.63”







0.5” - 1.0”





ORDERING INFORMATION

QCT901

Housing

QCT901 =

Quiet Ceiling

New Construction Housing for Square Trim

w/ Integral Low Voltage Transformer

Transformer

ELC = Electronic

MAG = Magnetic

Voltage

120 = 120 volts primary

277 = 277 volts primary

Specifications and Dimensions subject to change without notice.

rev. 030108

www.cooperlighting.com

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031



Page 1
