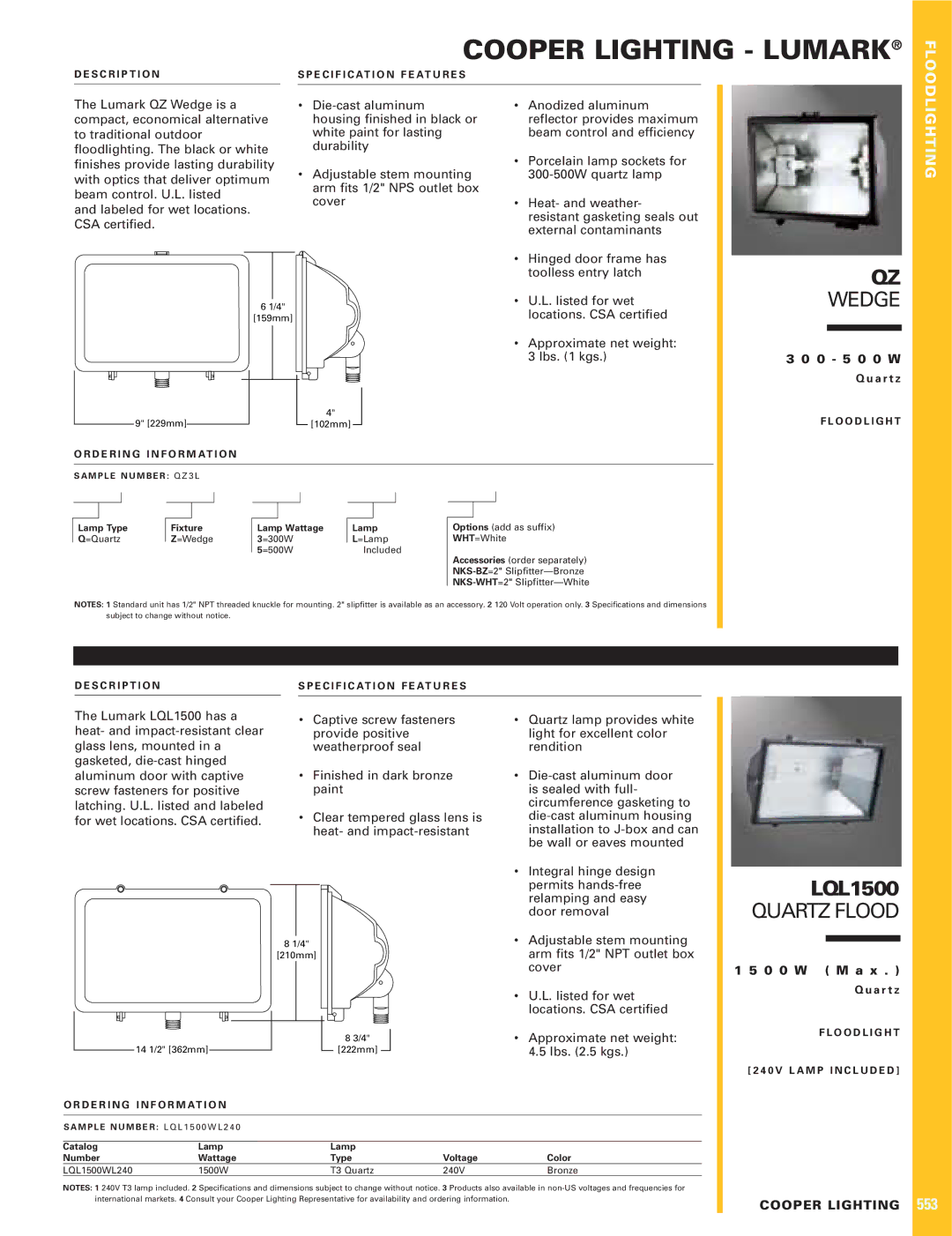

COOPER LIGHTING - LUMARK®

D E S C R I P T I O N S P E C I F I C AT I O N F E AT U R E S

The Lumark QZ Wedge is a compact, economical alternative to traditional outdoor floodlighting. The black or white finishes provide lasting durability with optics that deliver optimum beam control. U.L. listed

and labeled for wet locations. CSA certified.

•Die-cast aluminum housing finished in black or white paint for lasting durability

•Adjustable stem mounting arm fits 1/2" NPS outlet box cover

• Anodized aluminum

reflector provides maximum

beam control and efficiency

• Porcelain lamp sockets for

300-500W quartz lamp

• Heat- and weather-

resistant gasketing seals out

external contaminants

• Hinged door frame has

toolless entry latch

• U.L. listed for wet

QZ

WEDGE

9" [229mm]

61/4"

[159mm]

4"

[102mm]

locations. CSA certified

• Approximate net weight:

3 lbs. (1 kgs.)

3 0 0 - 5 0 0 W

Q u a r t z

F L O O D L I G H T

FLOODLIGHTING

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : Q Z 3 L

Lamp Type	Fixture	Lamp Wattage	Lamp	Options (add as suffix)
Q=Quartz	Z=Wedge	3=300W	L=Lamp	WHT=White
		5=500W	Included	Accessories (order separately)
				NKS-BZ=2" Slipfitter—Bronze
				NKS-WHT=2" Slipfitter—White

NOTES: 1 Standard unit has 1/2" NPT threaded knuckle for mounting. 2" slipfitter is available as an accessory. 2 120 Volt operation only. 3 Specifications and dimensions subject to change without notice.

D E S C R I P T I O N S P E C I F I C AT I O N F E AT U R E S

The Lumark LQL1500 has a heat- and impact-resistant clear glass lens, mounted in a gasketed, die-cast hinged aluminum door with captive screw fasteners for positive latching. U.L. listed and labeled for wet locations. CSA certified.

•Captive screw fasteners provide positive weatherproof seal

•Finished in dark bronze paint

•Clear tempered glass lens is heat- and impact-resistant

• Quartz lamp provides white
	light for excellent color
	rendition
• Die-cast aluminum door
	is sealed with full-
	circumference gasketing to
	die-cast aluminum housing
	installation to J-box and can
	be wall or eaves mounted
•	Integral hinge design
	permits hands-free
	relamping and easy
	door removal
•	Adjustable stem mounting

LQL1500

QUARTZ FLOOD

8 1/4"

[210mm]

	8 3/4"
14 1/2" [362mm]		[222mm]

O R D E R I N G I N F O R M AT I O N

arm fits 1/2" NPT outlet box

cover

• U.L. listed for wet

locations. CSA certified

• Approximate net weight:

4.5 lbs. (2.5 kgs.)

1 5 0 0 W ( M a x . )

Q u a r t z

F L O O D L I G H T

[ 2 4 0 V L A M P I N C L U D E D ]

S A M P L E N U M B E R : L Q L 1 5 0 0 W L 2 4 0

Catalog	Lamp	Lamp
Number	Wattage	Type	Voltage	Color
LQL1500WL240	1500W	T3 Quartz	240V	Bronze

NOTES: 1 240V T3 lamp included. 2 Specifications and dimensions subject to change without notice. 3 Products also available in non-US voltages and frequencies for international markets. 4 Consult your Cooper Lighting Representative for availability and ordering information.

COOPER LIGHTING 553
