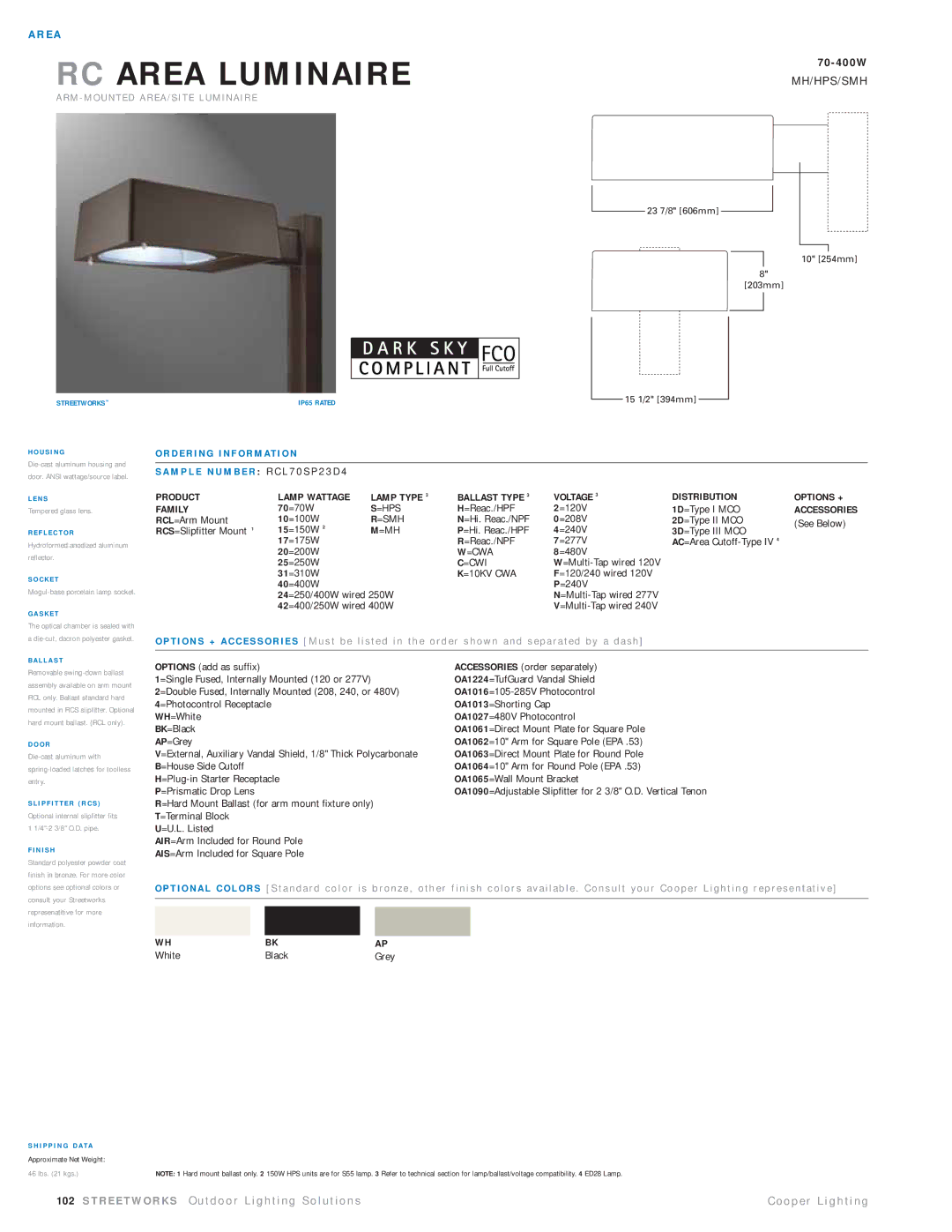

Cooper Lighting RCL70SP23D4 manual A R M - M O U N T E D A R E A / S I T E L U M I N A I R E

A R E A
RC AREA LUMINAIRE	70-400W
	MH/HPS/SMH
A R M - M O U N T E D A R E A / S I T E L U M I N A I R E

23 7/8" [606mm]

10" [254mm]

8"

[203mm]

STREETWORKS™

H O U S I N G

Die-cast aluminum housing and door. ANSI wattage/source label.

L E N S

Tempered glass lens.

R E F L E C T O R

Hydroformed anodized aluminum reflector.

S O C K E T

Mogul-base porcelain lamp socket.

G A S K E T

The optical chamber is sealed with a die-cut, dacron polyester gasket.

IP65 RATED15 1/2" [394mm]

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : R C L 7 0 S P 2 3 D 4

PRODUCT	LAMP WATTAGE	LAMP TYPE 3	BALLAST TYPE 3	VOLTAGE 3	DISTRIBUTION	OPTIONS +
FAMILY	70=70W	S=HPS	H=Reac./HPF	2=120V	1D=Type I MCO	ACCESSORIES
RCL=Arm Mount	10=100W	R=SMH	N=Hi. Reac./NPF	0=208V	2D=Type II MCO	(See Below)
RCS=Slipfitter Mount 1	15=150W 2	M=MH	P=Hi. Reac./HPF	4=240V	3D=Type III MCO
	17=175W		R=Reac./NPF	7=277V	AC=Area Cutoff-Type IV 4
	20=200W		W=CWA	8=480V
	25=250W		C=CWI	W=Multi-Tap wired 120V
	31=310W		K=10KV CWA	F=120/240 wired 120V
	40=400W			P=240V
	24=250/400W wired 250W			N=Multi-Tap wired 277V
	42=400/250W wired 400W			V=Multi-Tap wired 240V

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

B A L L A S T

Removable swing-down ballast assembly available on arm mount RCL only. Ballast standard hard mounted in RCS slipfitter. Optional hard mount ballast. (RCL only).

D O O R

Die-cast aluminum with spring-loaded latches for toolless

entry.

S L I P F I T T E R ( R C S )

Optional internal slipfitter fits 1 1/4"-2 3/8" O.D. pipe.

F I N I S H

OPTIONS (add as suffix)

1=Single Fused, Internally Mounted (120 or 277V)

2=Double Fused, Internally Mounted (208, 240, or 480V)

4=Photocontrol Receptacle WH=White

BK=Black

AP=Grey

V=External, Auxiliary Vandal Shield, 1/8" Thick Polycarbonate B=House Side Cutoff

H=Plug-in Starter Receptacle P=Prismatic Drop Lens

R=Hard Mount Ballast (for arm mount fixture only) T=Terminal Block

U=U.L. Listed

AIR=Arm Included for Round Pole AIS=Arm Included for Square Pole

ACCESSORIES (order separately) OA1224=TufGuard Vandal Shield OA1016=105-285V Photocontrol OA1013=Shorting Cap OA1027=480V Photocontrol OA1061=Direct Mount Plate for Square Pole OA1062=10" Arm for Square Pole (EPA .53) OA1063=Direct Mount Plate for Round Pole OA1064=10" Arm for Round Pole (EPA .53) OA1065=Wall Mount Bracket

OA1090=Adjustable Slipfitter for 2 3/8" O.D. Vertical Tenon

Standard polyester powder coat finish in bronze. For more color options see optional colors or consult your Streetworks represenatitive for more information.

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BK	AP
White	Black	Grey

S H I P P I N G D ATA
Approximate Net Weight:
46 lbs. (21 kgs.)	NOTE: 1 Hard mount ballast only. 2 150W HPS units are for S55 lamp. 3 Refer to technical section for lamp/ballast/voltage compatibility. 4 ED28 Lamp.

102 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s C o o p e r L i g h t i n g
