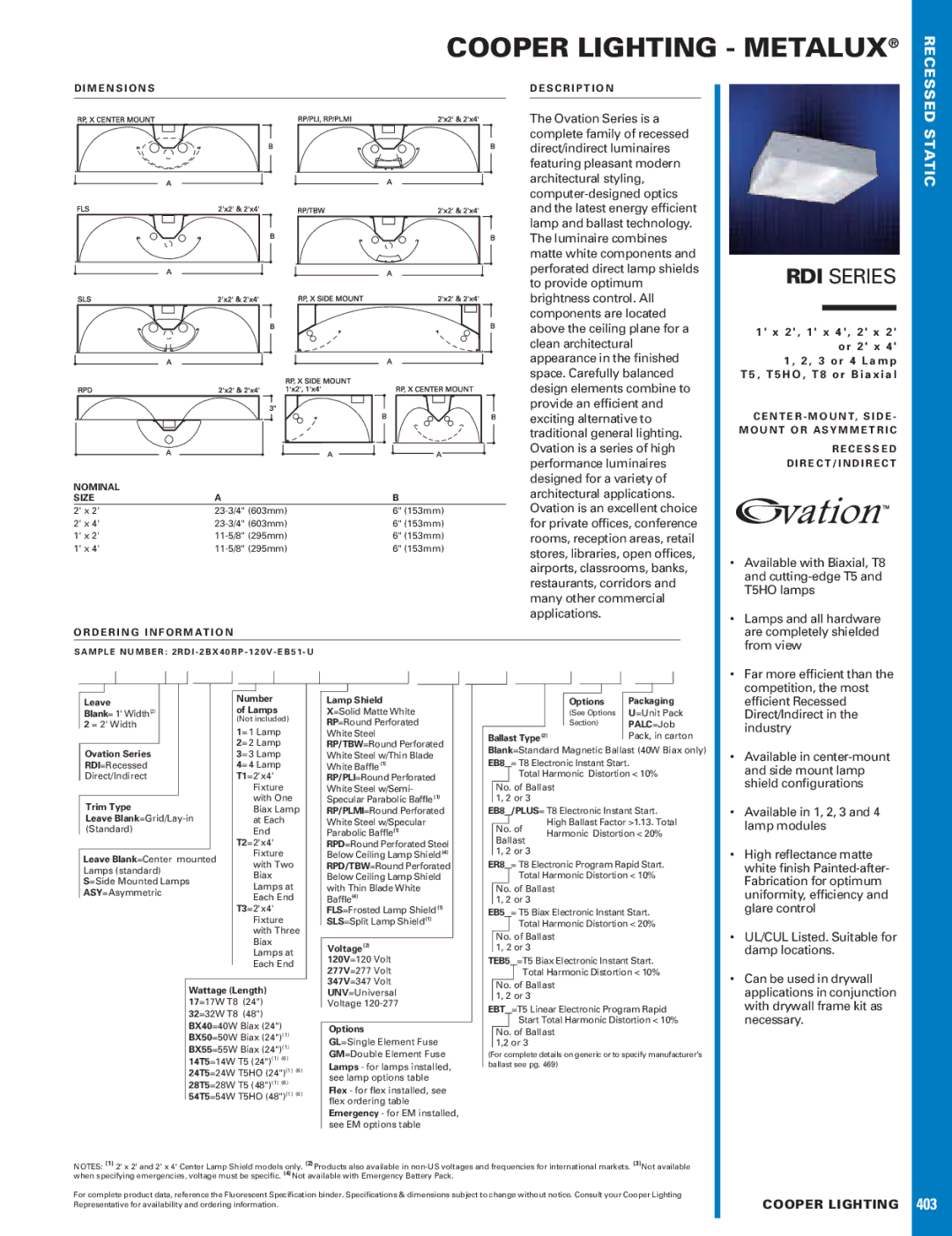

COOPER LIGHTING - METALUX®

D I M E N S I O N SD E S C R I P T I O N

RECESSED

NOMINAL





SIZE

A

B

2' x 2'

23-3/4" (603mm)

6" (153mm)

2' x 4'

23-3/4" (603mm)

6" (153mm)

1' x 2'

11-5/8" (295mm)

6" (153mm)

1' x 4'

11-5/8" (295mm)

6" (153mm)

The Ovation Series is a complete family of recessed direct/indirect luminaires featuring pleasant modern architectural styling, computer-designed optics and the latest energy efficient lamp and ballast technology. The luminaire combines matte white components and perforated direct lamp shields to provide optimum brightness control. All components are located above the ceiling plane for a clean architectural appearance in the finished space. Carefully balanced design elements combine to provide an efficient and exciting alternative to traditional general lighting. Ovation is a series of high performance luminaires designed for a variety of architectural applications. Ovation is an excellent choice for private offices, conference rooms, reception areas, retail stores, libraries, open offices, airports, classrooms, banks, restaurants, corridors and many other commercial applications.

RDI SERIES

1 ' x 2 ' , 1 ' x 4 ' , 2 ' x 2 ' o r 2 ' x 4 ' 1 , 2 , 3 o r 4 L a m p

T 5 , T 5 H O , T 8 o r B i a x i a l

C E N T E R - M O U N T, S I D E - M O U N T O R A S Y M M E T R I C

R E C E S S E D

D I R E C T / I N D I R E C T

•

Available with Biaxial, T8



and cutting-edge T5 and



T5HO lamps

•

Lamps and all hardware

STATIC

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : 2 R D I - 2 B X 4 0 R P - 1 2 0 V - E B 5 1 - U

are completely shielded

from view

• Far more efficient than the

competition, the most

Leave

Blank= 1' Width(2)

2 = 2' Width

Ovation Series

RDI=Recessed

Direct/Indirect

Trim Type

Leave Blank=Grid/Lay-in (Standard)

Leave Blank=Center mounted Lamps (standard)

S=Side Mounted Lamps ASY=Asymmetric

Number

of Lamps

(Not included)

1= 1 Lamp

2= 2 Lamp

3= 3 Lamp

4= 4 Lamp

T1=2'x4' Fixture with One Biax Lamp at Each End

T2=2'x4' Fixture with Two Biax Lamps at Each End

T3=2'x4' Fixture with Three Biax Lamps at Each End

Lamp Shield

X=Solid Matte White

RP=Round Perforated White Steel RP/TBW=Round Perforated White Steel w/Thin Blade White Baffle (1) RP/PLI=Round Perforated White Steel w/Semi- Specular Parabolic Baffle(1) RP/PLMI=Round Perforated White Steel w/Specular Parabolic Baffle(1) RPD=Round Perforated Steel Below Ceiling Lamp Shield(4) RPD/TBW=Round Perforated Below Ceiling Lamp Shield with Thin Blade White Baffle(4)

FLS=Frosted Lamp Shield(1) SLS=Split Lamp Shield(1)

Voltage (2)

120V=120 Volt

277V=277 Volt























































Options



Packaging







(See Options



U=Unit Pack







Section)



PALC=Job







Ballast Type(2)



Pack, in carton



Blank=Standard Magnetic Ballast (40W Biax only) EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start. High Ballast Factor >1.13. Total

No. of

Harmonic Distortion < 20%

Ballast



1, 2 or 3



ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB5 = T5 Biax Electronic Instant Start. Total Harmonic Distortion < 20%

No. of Ballast 1, 2 or 3

TEB5 =T5 Biax Electronic Instant Start. Total Harmonic Distortion < 10%

efficient Recessed

Direct/Indirect in the

industry

• Available in center-mount

and side mount lamp

shield configurations

• Available in 1, 2, 3 and 4

lamp modules

• High reflectance matte

white finish Painted-after-

Fabrication for optimum

uniformity, efficiency and

glare control

• UL/CUL Listed. Suitable for

damp locations.

Wattage (Length)

17=17W T8 (24")

32=32W T8 (48")

BX40=40W Biax (24")

BX50=50W Biax (24")(1)

BX55=55W Biax (24")(1)

14T5=14W T5 (24")(1) (6)

24T5=24W T5HO (24")(1) (6)

28T5=28W T5 (48")(1) (6)

54T5=54W T5HO (48")(1) (6)

347V=347 Volt

UNV=Universal

Voltage 120-277

Options

GL=Single Element Fuse GM=Double Element Fuse Lamps - for lamps installed, see lamp options table Flex - for flex installed, see flex ordering table Emergency - for EM installed, see EM options table

No. of Ballast 1, 2 or 3

EBT =T5 Linear Electronic Program Rapid Start Total Harmonic Distortion < 10%

No. of Ballast 1,2 or 3

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

• Can be used in drywall

applications in conjunction

with drywall frame kit as

necessary.

NOTES: (1) 2' x 2' and 2' x 4' Center Lamp Shield models only. (2)Products also available in non-US voltages and frequencies for international markets. (3)Not available when specifying emergencies, voltage must be specific. (4)Not available with Emergency Battery Pack.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.
