COOPER LIGHTING - SURE-LITES®

D E S C R I P T I O ND I M E N S I O N S

FBP/CONVERSION

RKRC SERIES

L E D L i t e S t i x ™ E x i t R e t r o f i t K i t

E X I T L I G H T I N G

RKRI SERIES

L E D L i t e S t i x ™ E x i t R e t r o f i t K i t

E X I T L I G H T I N G

The Sure-Lites LED LITE STIXLED Retrofit Kit for Exits offers the latest technology in exit lighting available today. The Patent Pending design of the LED LITE STIXprovides superior illumination of exit lettering at a fraction of the costs associated with typical incandescent lamps. Each kit is provided with two lamps which come in two different base styles to suit nearly every application. Installation is easy since the lamps simply screw into the existing incandescent lamp sockets. The long life characteristic of the LEDs is protected by an integral MOV (Metal Oxide Varistor) surge protection device which is designed to protect the lamp in the event of an electrical surge. Practically any stencil face incandescent exit fixture can be retrofitted with the Sure-Lites LED LITE STIXLED Retrofit Kit for Exits, yielding significant energy savings and eliminating the lamp maintenance associated with incandescent lamps. The kit is suitable for use with either single or double face exit fixtures.

No special provisions required for installation:

1.Disconnect AC power and open exit fixture

2.Remove existing AC incandescent lamps

3.Screw-in LED LITE STIX™

4.Close exit fixture and reconnect AC power

Damp Location Listed

UL 924 Classified for Sure-Lites Exits, Life Safety NFPA 101, CSA Certified, NEC/OSHA, Most state and local codes

Suitable for use with single- or double-face exit fixtures

Eliminates lamp replacement costs and maintenance labor

Trilingual instructions included (English, Spanish, and French)

Diffuser can also be used to convert green exits to red

5 1/2" max.

5 1/2" max.

(140mm)

(140mm)

3/4"

3/4"

(19mm)

(19mm)

Candelabra Base

Intermediate Base

120 VAC, 60 Hz input voltage

Long-life, high-output LEDs

Consumes less than 1 watt per lamp (2W per kit)

MOV (Metal Oxide Varistor) surge protected

Patent pending

LEDs (Light Emitting Diodes) are encapsulated in a standard T-6 1/2 glass lamp envelope

Super-clear glass and super-bright LEDs combine for optimum light output

Available in two base styles: candelabra and intermediate

Simple screw-in installation - no special adapters or messy rewiring

Direct replacement for up to 20W incandescent lamps

Two lamps provided per kit

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : R K R C

RK





















Family



Lamp Color

Base Style



Accessories (order separately)

RK=LED LITE



R=Red

C=Candelabra



RKLR=Diffuser - Red - 13" x 9"





STIXLED









I=Intermediate





















Retrofit Kit



















E n e r g y D a t a

RKRC, RKRI (per 2-lamp kit)

Input Power:

120V = 2.0W

Input Current (Max.): 120V = .09A Power Factor:

120V = >.19 T.H.D.:

120V = <19%

670

COOPER LIGHTING

Page 1

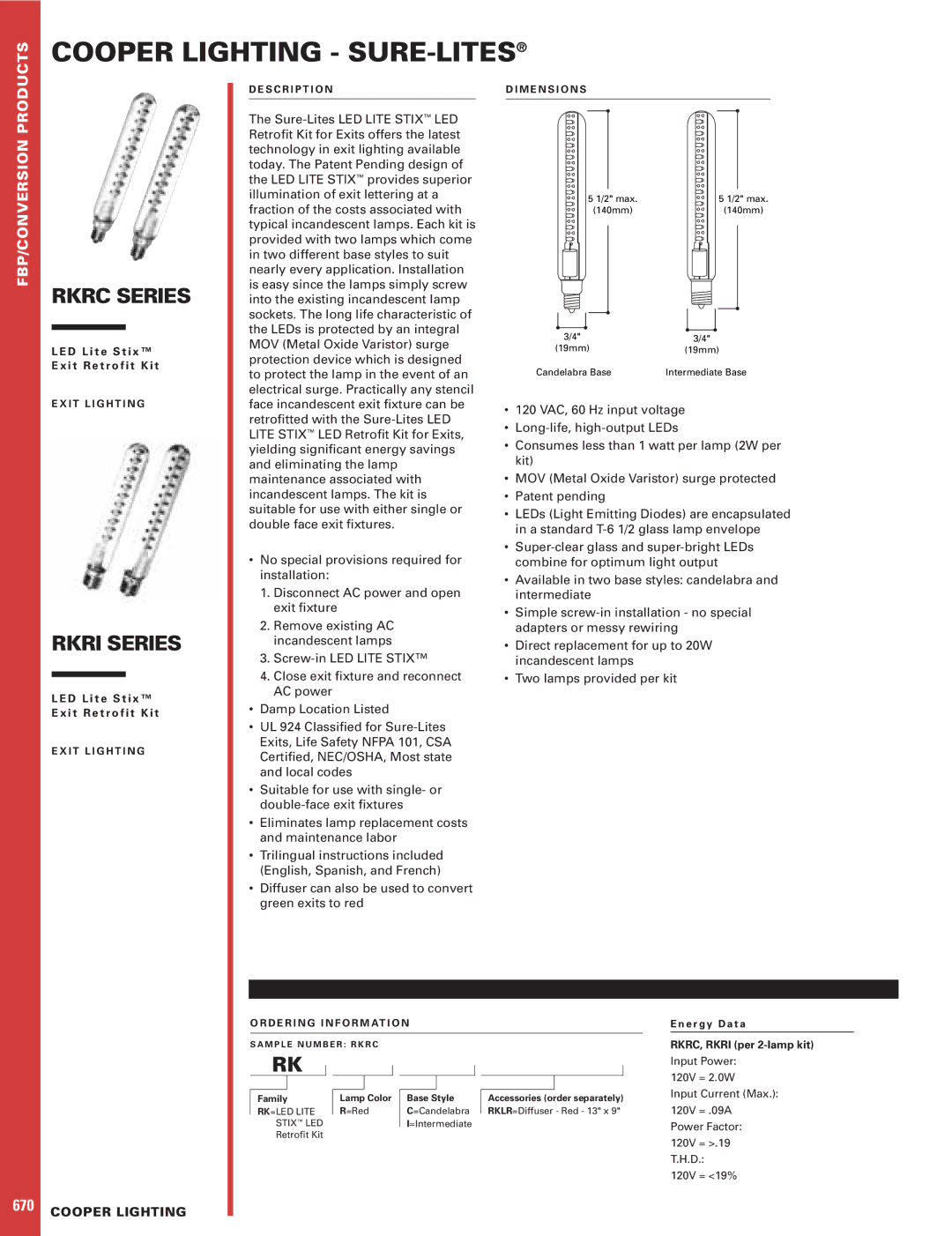

Image 1
