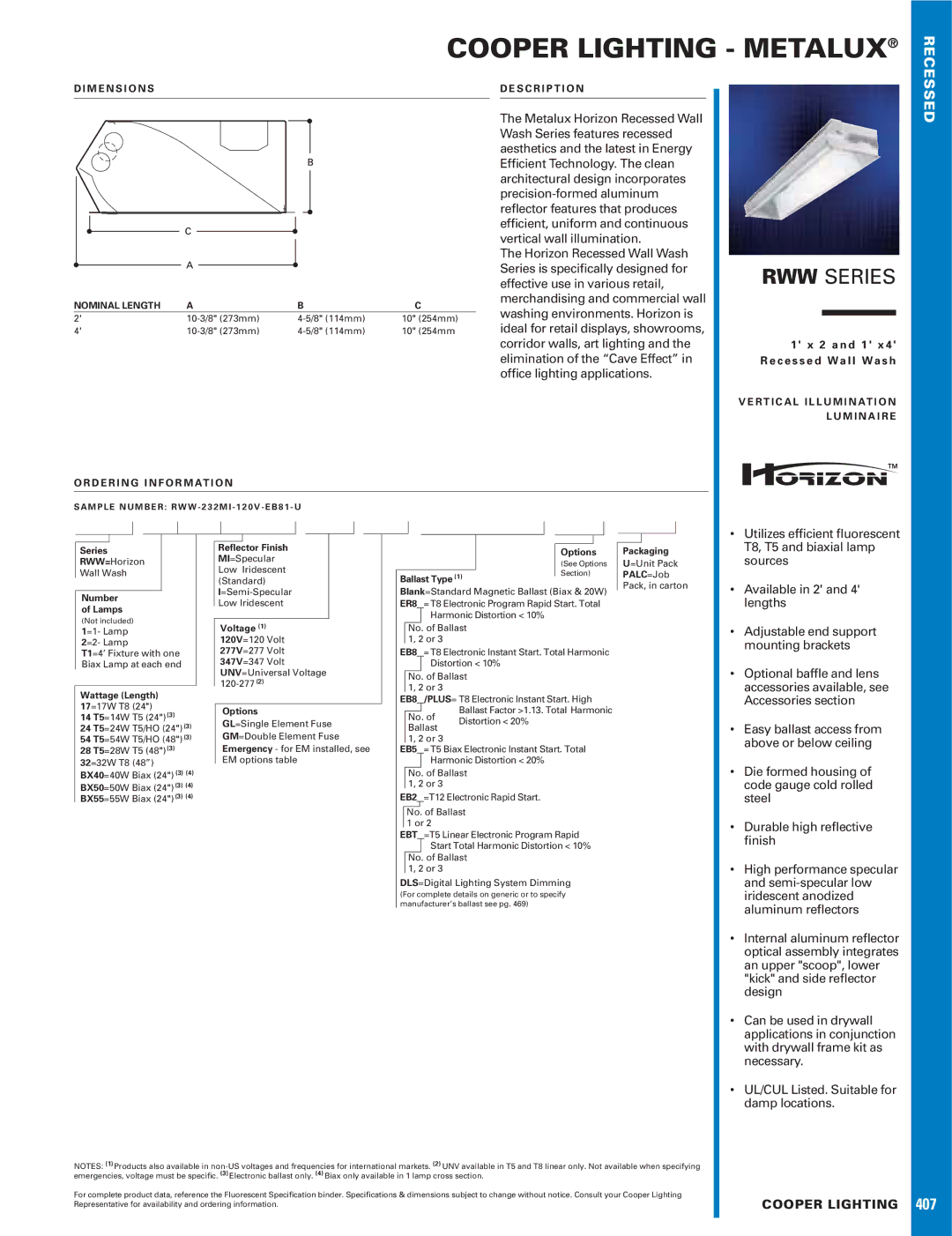

COOPER LIGHTING - METALUX®

RECESSED

D I M E N S I O N S

NOMINAL LENGTH



A

B





C

2'









10-3/8" (273mm)

4-5/8" (114mm)

10" (254mm)

4'









10-3/8" (273mm)

4-5/8" (114mm)

10" (254mm



























































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































D E S C R I P T I O N

The Metalux Horizon Recessed Wall Wash Series features recessed aesthetics and the latest in Energy Efficient Technology. The clean architectural design incorporates precision-formed aluminum reflector features that produces efficient, uniform and continuous vertical wall illumination.

The Horizon Recessed Wall Wash Series is specifically designed for effective use in various retail, merchandising and commercial wall washing environments. Horizon is ideal for retail displays, showrooms, corridor walls, art lighting and the elimination of the “Cave Effect” in office lighting applications.

RWW SERIES

1 ' x 2 a n d 1 ' x 4 ' R e c e s s e d W a l l W a s h

V E R T I C A L I L L U M I N AT I O N L U M I N A I R E

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : R W W - 2 3 2 M I - 1 2 0 V - E B 8 1 - U

Series

RWW=Horizon Wall Wash

Reflector Finish MI=Specular Low Iridescent (Standard)

Ballast Type (1)

Options

(See Options Section)

Packaging

U=Unit Pack

PALC=Job Pack, in carton

• Utilizes efficient fluorescent

T8, T5 and biaxial lamp

sources

Number

of Lamps

(Not included)

1=1- Lamp

2=2- Lamp

T1=4’ Fixture with one Biax Lamp at each end

Wattage (Length)

17=17W T8 (24")

14T5=14W T5 (24") (3)

24T5=24W T5/HO (24") (3)

54T5=54W T5/HO (48") (3)

28T5=28W T5 (48") (3)

32=32W T8 (48”)

BX40=40W Biax (24") (3) (4) BX50=50W Biax (24") (3) (4) BX55=55W Biax (24") (3) (4)

I=Semi-Specular

Low Iridescent

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277 (2)

Options

GL=Single Element Fuse

GM=Double Element Fuse Emergency - for EM installed, see EM options table

Blank=Standard Magnetic Ballast (Biax & 20W) ER8 = T8 Electronic Program Rapid Start. Total

Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 = T8 Electronic Instant Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start. High

No. of

Ballast Factor >1.13. Total Harmonic

Distortion < 20%

Ballast



1, 2 or 3



EB5 = T5 Biax Electronic Instant Start. Total

Harmonic Distortion < 20%

No. of Ballast

1, 2 or 3



EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

EBT =T5 Linear Electronic Program Rapid Start Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

DLS=Digital Lighting System Dimming

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

• Available in 2' and 4'



lengths

•

Adjustable end support



mounting brackets

• Optional baffle and lens



accessories available, see



Accessories section

• Easy ballast access from



above or below ceiling

• Die formed housing of



code gauge cold rolled



steel

•

Durable high reflective



finish

•

High performance specular



and semi-specular low



iridescent anodized



aluminum reflectors

•

Internal aluminum reflector



optical assembly integrates



an upper "scoop", lower



"kick" and side reflector



design

• Can be used in drywall



applications in conjunction



with drywall frame kit as



necessary.

• UL/CUL Listed. Suitable for



damp locations.

NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2) UNV available in T5 and T8 linear only. Not available when specifying emergencies, voltage must be specific. (3) Electronic ballast only. (4) Biax only available in 1 lamp cross section.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.
