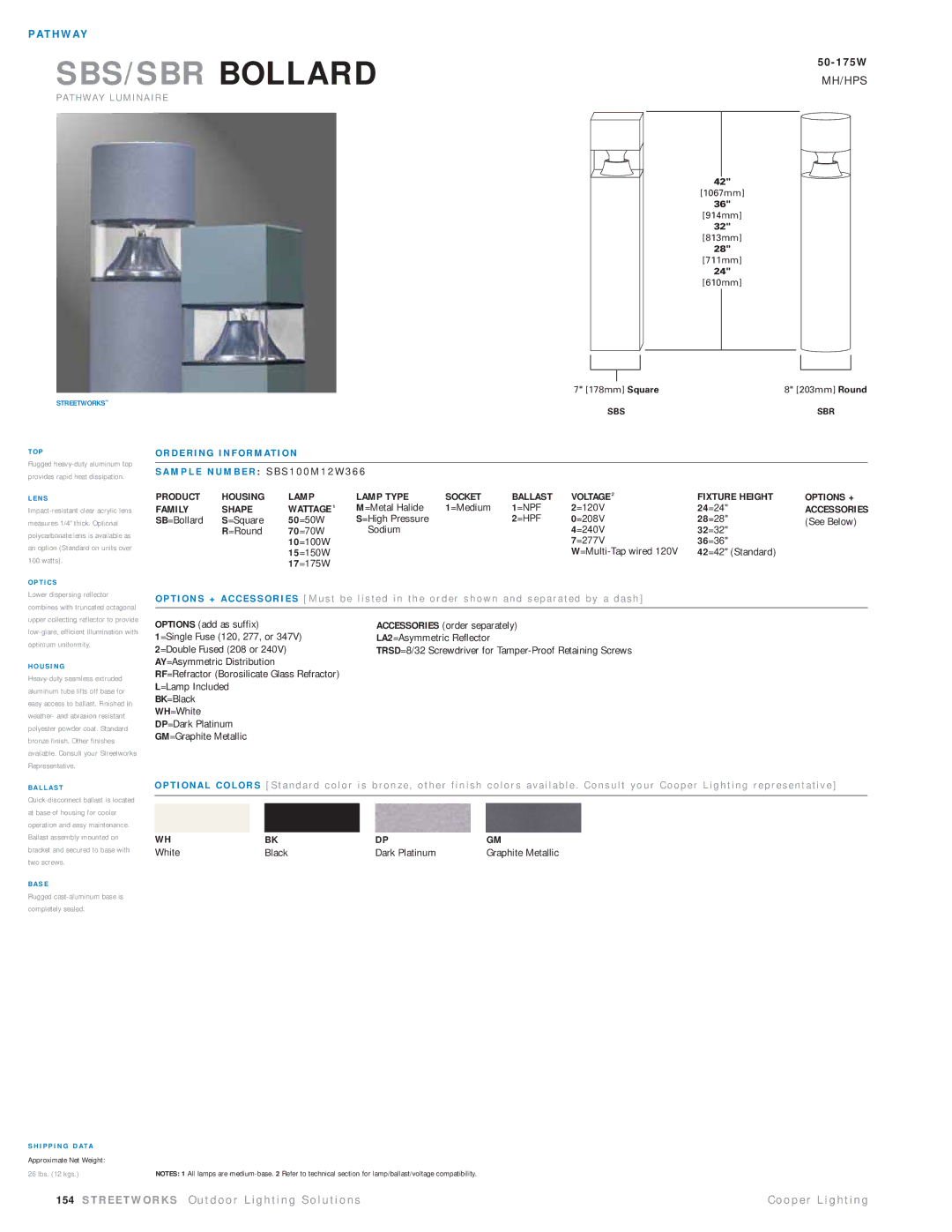

Cooper Lighting SBS100M12W366 manual O R D E R I N G I N F O R M At I O N, Sbs/Sbr Bollard

PAT H W AY
SBS/SBR BOLLARD	50-175W
	MH/HPS
PAT H WAY L U M I N A I R E

42"

[1067mm]

36"

[914mm]

32"

[813mm]

28"

[711mm]

24"

[610mm]

7" [178mm] Square 8" [203mm] Round

STREETWORKS™

T O P

Rugged heavy-duty aluminum top provides rapid heat dissipation.

L E N S

Impact-resistant clear acrylic lens measures 1/4" thick. Optional polycarbonate lens is available as an option (Standard on units over 100 watts).

SBSSBR

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : S B S 1 0 0 M 1 2 W 3 6 6

PRODUCT	HOUSING	LAMP	LAMP TYPE	SOCKET	BALLAST	VOLTAGE 2	FIXTURE HEIGHT	OPTIONS +
FAMILY	SHAPE	WATTAGE 1	M=Metal Halide	1=Medium	1=NPF	2=120V	24=24"	ACCESSORIES
SB=Bollard	S=Square	50=50W	S=High Pressure		2=HPF	0=208V	28=28"	(See Below)
	R=Round	70=70W	Sodium			4=240V	32=32"
		10=100W				7=277V	36=36"
		15=150W				W=Multi-Tap wired 120V	42=42" (Standard)
		17=175W

O P T I C S

Lower dispersing reflector combines with truncated octagonal upper collecting reflector to provide

O P T I O N S + A C C E S S O R I E S [ M u s t b e l i s t e d i n t h e o r d e r s h o w n a n d s e p a r a t e d b y a d a s h ]

low-glare, efficient illumination with optimum uniformity.

H O U S I N G

Heavy-duty seamless extruded aluminum tube lifts off base for easy access to ballast. Finished in weather- and abrasion resistant polyester powder coat. Standard bronze finish. Other finishes available. Consult your Streetworks Representative.

OPTIONS (add as suffix)

1=Single Fuse (120, 277, or 347V)

2=Double Fused (208 or 240V) AY=Asymmetric Distribution RF=Refractor (Borosilicate Glass Refractor) L=Lamp Included

BK=Black

WH=White

DP=Dark Platinum GM=Graphite Metallic

ACCESSORIES (order separately) LA2=Asymmetric Reflector

TRSD=8/32 Screwdriver for Tamper-Proof Retaining Screws

B A L L A S T

Quick-disconnect ballast is located at base of housing for cooler operation and easy maintenance. Ballast assembly mounted on bracket and secured to base with two screws.

B A S E

Rugged cast-aluminum base is

completely sealed.

O P T I O N A L C O L O R S [ S t a n d a r d c o l o r i s b r o n z e , o t h e r f i n i s h c o l o r s a v a i l a b l e . C o n s u l t y o u r C o o p e r L i g h t i n g r e p r e s e n t a t i v e ]

WH	BK	DP	GM
White	Black	Dark Platinum	Graphite Metallic

S H I P P I N G D ATA
Approximate Net Weight:
26 lbs. (12 kgs.)	NOTES: 1 All lamps are medium-base. 2 Refer to technical section for lamp/ballast/voltage compatibility.

154 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s C o o p e r L i g h t i n g
