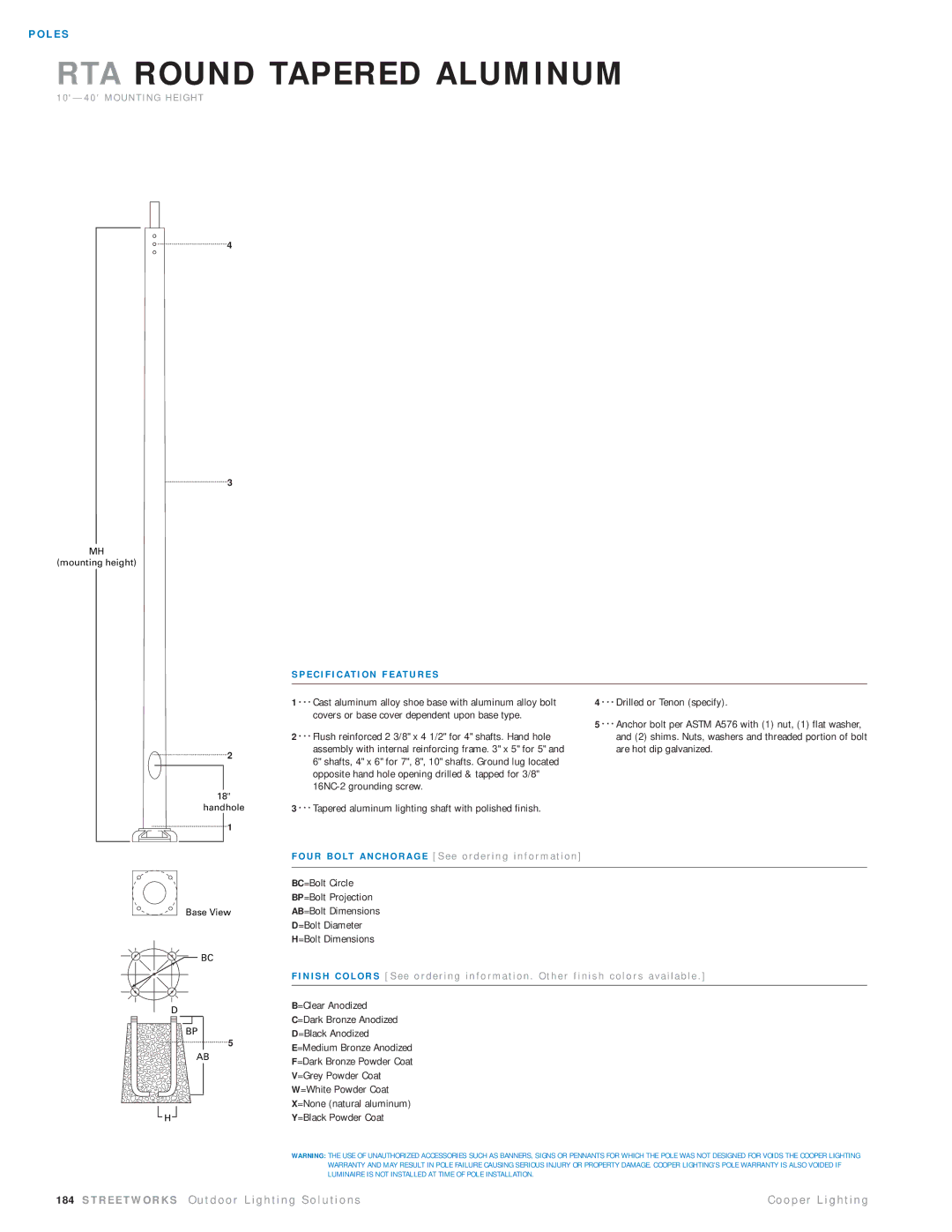

P O L E S
RTA ROUND TAPERED ALUMINUM
1 0 ' — 4 0 ' M O U N T I N G H E I G H T
4
3
MH
(mounting height)
2
18"
handhole
1
Base View
BC
D
BP
5
AB
H
S P E C I F I C AT I O N F E AT U R E S
1 . . . Cast aluminum alloy shoe base with aluminum alloy bolt | 4 . . . Drilled or Tenon (specify). | |
covers or base cover dependent upon base type. | 5 . . . Anchor bolt per ASTM A576 with (1) nut, (1) flat washer, | |
2 . . . Flush reinforced 2 3/8" x 4 1/2" for 4" shafts. Hand hole | ||
and (2) shims. Nuts, washers and threaded portion of bolt | ||
assembly with internal reinforcing frame. 3" x 5" for 5" and | are hot dip galvanized. | |
6" shafts, 4" x 6" for 7", 8", 10" shafts. Ground lug located |
| |
opposite hand hole opening drilled & tapped for 3/8" |
| |
| ||
3 . . . Tapered aluminum lighting shaft with polished finish. |
| |
F O U R B O LT A N C H O R A G E [ S e e o r d e r i n g i n f o r m a t i o n ] |
| |
|
| |
BC=Bolt Circle |
| |
BP=Bolt Projection |
| |
AB=Bolt Dimensions |
| |
D=Bolt Diameter |
| |
H=Bolt Dimensions |
|
F I N I S H C O L O R S [ S e e o r d e r i n g i n f o r m a t i o n . O t h e r f i n i s h c o l o r s a v a i l a b l e . ]
B=Clear Anodized
C=Dark Bronze Anodized
D=Black Anodized
E=Medium Bronze Anodized
F=Dark Bronze Powder Coat
V=Grey Powder Coat
W=White Powder Coat
X=None (natural aluminum)
Y=Black Powder Coat
WARNING: THE USE OF UNAUTHORIZED ACCESSORIES SUCH AS BANNERS, SIGNS OR PENNANTS FOR WHICH THE POLE WAS NOT DESIGNED FOR VOIDS THE COOPER LIGHTING WARRANTY AND MAY RESULT IN POLE FAILURE CAUSING SERIOUS INJURY OR PROPERTY DAMAGE. COOPER LIGHTING'S POLE WARRANTY IS ALSO VOIDED IF LUMINAIRE IS NOT INSTALLED AT TIME OF POLE INSTALLATION.
184 S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s | C o o p e r L i g h t i n g |
