Catalog #
Project
Comments
Prepared by
Type
Date
SPECIFICATION FEATURES
10/29/2007 2:30:18 PM
Consult your representative for additional options and finishes.
Specifications and Dimensions subject to change without notice.
ADF022662

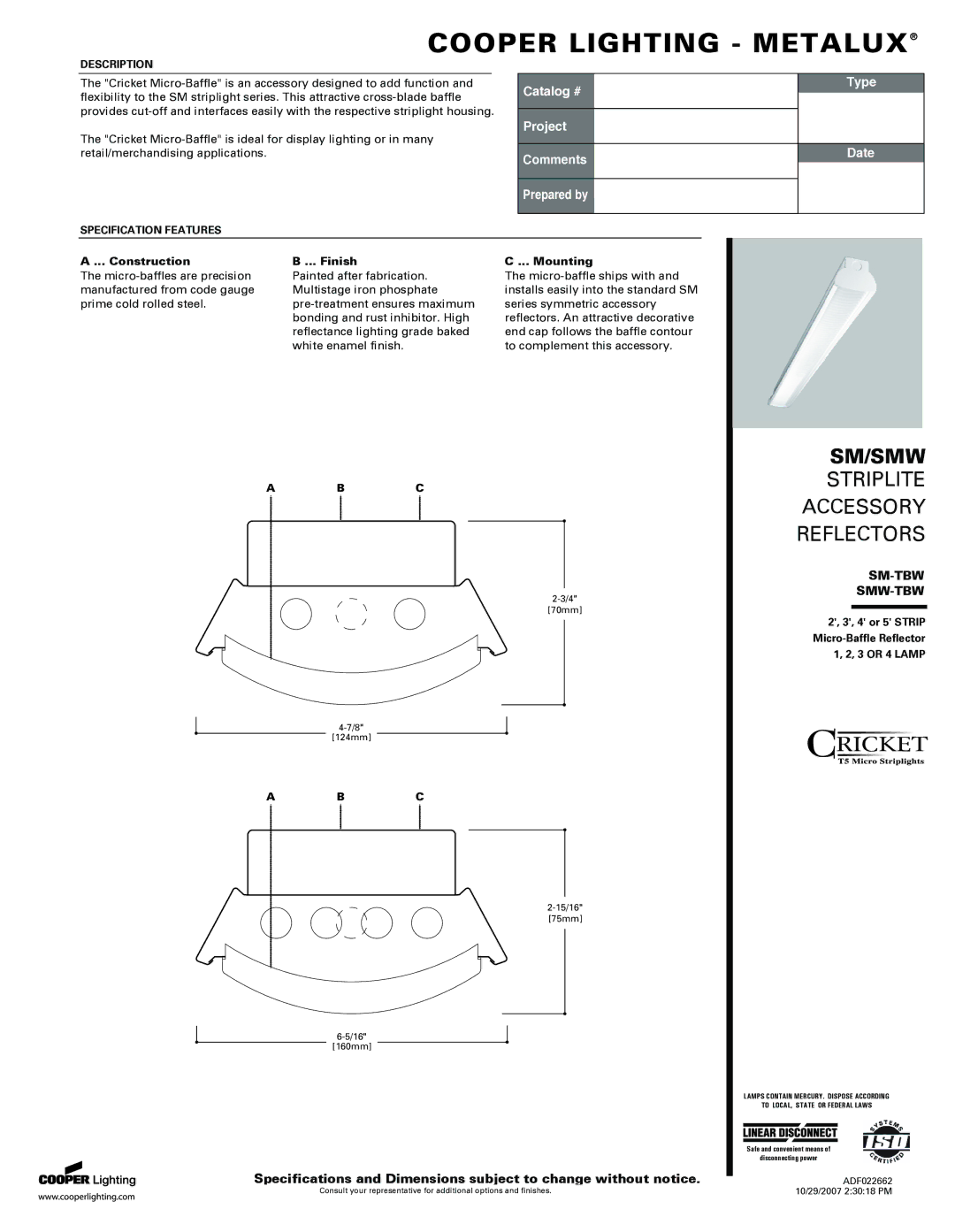

DESCRIPTION
The "Cricket Micro-Baffle" is an accessory designed to add function and
flexibility to the SM striplight series. This attractive cross-blade baffle
provides cut-off and interfaces easily with the respective striplight housing.
The "Cricket Micro-Baffle" is ideal for display lighting or in many
retail/merchandising applications.
A ... Construction
The micro-baffles are precision
manufactured from code gauge
prime cold rolled steel.
B ... Finish
Painted after fabrication.
Multistage iron phosphate
pre-treatment ensures maximum
bonding and rust inhibitor. High
reflectance lighting grade baked
white enamel finish.
C ... Mounting
The micro-baffle ships with and
installs easily into the standard SM
series symmetric accessory
reflectors. An attractive decorative
end cap follows the baffle contour
to complement this accessory.
SM/SMW
STRIPLITE
ACCESSORY
REFLECTORS
SM-TBW
SMW-TBW
2', 3', 4' or 5' STRIP
Micro-Baffle Reflector
1, 2, 3 OR 4 LAMP
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
disconnecting power
ABC
2-3/4"
[70mm]
4-7/8"
[124mm]
ABC
2-15/16"
[75mm]
6-5/16"
[160mm]
COOPER LIGHTING - METALUX®
