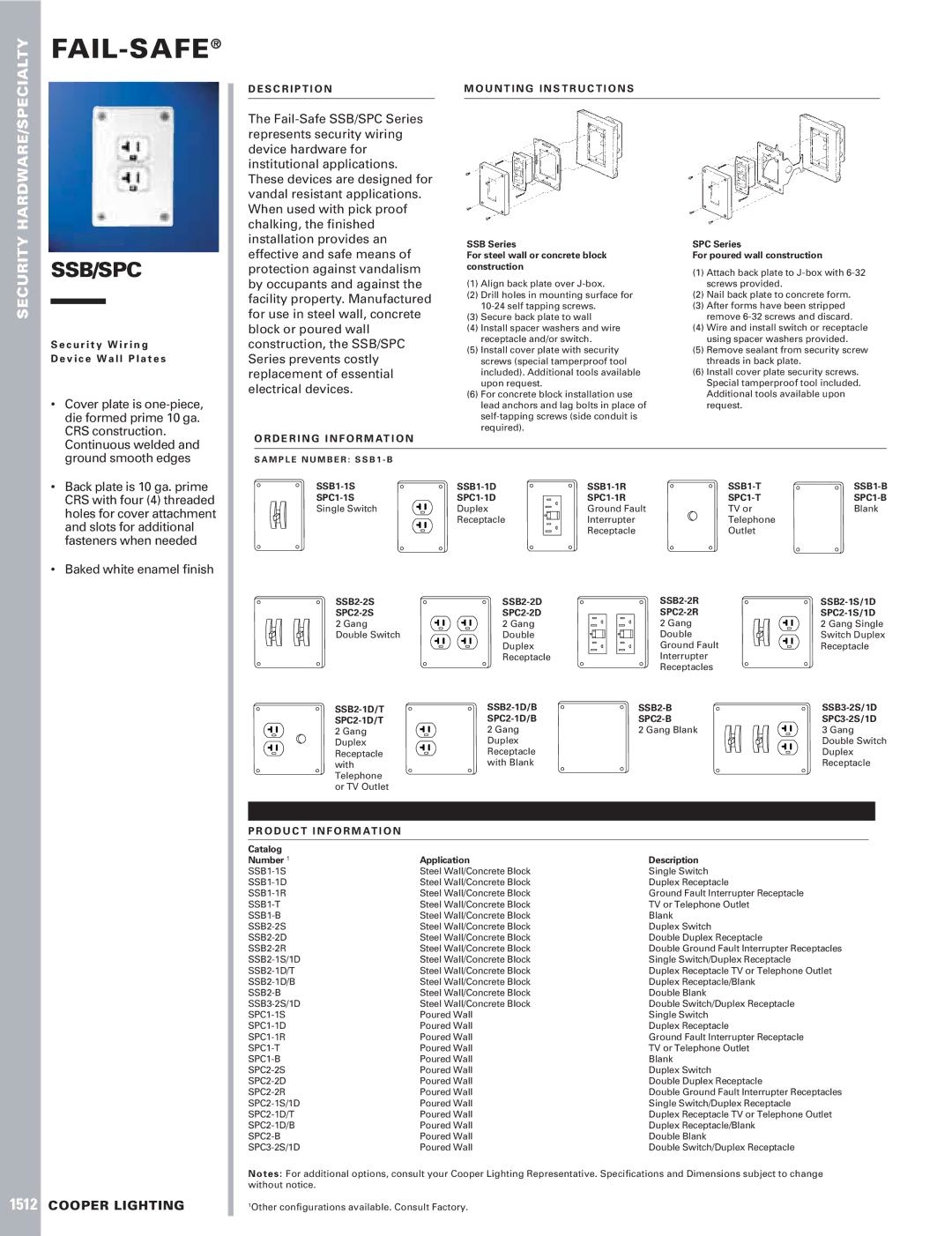

COOPER LIGHTING
FAIL-SAFE®
SECURITY HARDWARE/SPECIALTY
• Cover plate is one-piece,
die formed prime 10 ga.
CRS construction.
Continuous welded and
ground smooth edges
• Back plate is 10 ga. prime
CRS with four (4) threaded
holes for cover attachment
and slots for additional
fasteners when needed
• Baked white enamel finish
SSB/SPC
Security Wiring
Device Wall Plates
MOUNTING INSTRUCTIONS
DESCRIPTION
The Fail-Safe SSB/SPC Series
represents security wiring
device hardware for
institutional applications.
These devices are designed for
vandal resistant applications.
When used with pick proof
chalking, the finished
installation provides an
effective and safe means of
protection against vandalism
by occupants and against the
facility property. Manufactured
for use in steel wall, concrete
block or poured wall
construction, the SSB/SPC
Series prevents costly
replacement of essential
electrical devices.
PRODUCT INFORMATION
Catalog
Number 1Application Description
SSB1-1S Steel Wall/Concrete Block Single Switch
SSB1-1D Steel Wall/Concrete Block Duplex Receptacle
SSB1-1R Steel Wall/Concrete Block Ground Fault Interrupter Receptacle
SSB1-T Steel Wall/Concrete Block TV or Telephone Outlet
SSB1-B Steel Wall/Concrete Block Blank
SSB2-2S Steel Wall/Concrete Block Duplex Switch
SSB2-2D Steel Wall/Concrete Block Double Duplex Receptacle
SSB2-2R Steel Wall/Concrete Block Double Ground Fault Interrupter Receptacles
SSB2-1S/1D Steel Wall/Concrete Block Single Switch/Duplex Receptacle
SSB2-1D/T Steel Wall/Concrete Block Duplex Receptacle TV or Telephone Outlet
SSB2-1D/B Steel Wall/Concrete Block Duplex Receptacle/Blank
SSB2-B Steel Wall/Concrete Block Double Blank
SSB3-2S/1D Steel Wall/Concrete Block Double Switch/Duplex Receptacle
SPC1-1S Poured Wall Single Switch
SPC1-1D Poured Wall Duplex Receptacle
SPC1-1R Poured Wall Ground Fault Interrupter Receptacle
SPC1-T Poured Wall TV or Telephone Outlet
SPC1-B Poured Wall Blank
SPC2-2S Poured Wall Duplex Switch
SPC2-2D Poured Wall Double Duplex Receptacle
SPC2-2R Poured Wall Double Ground Fault Interrupter Receptacles
SPC2-1S/1D Poured Wall Single Switch/Duplex Receptacle
SPC2-1D/T Poured Wall Duplex Receptacle TV or Telephone Outlet
SPC2-1D/B Poured Wall Duplex Receptacle/Blank
SPC2-B Poured Wall Double Blank
SPC3-2S/1D Poured Wall Double Switch/Duplex Receptacle
ORDERING INFORMATION
SAMPLE NUMBER: SSB1-B
SSB Series
For steel wall or concrete block
construction
(1) Align back plate over J-box.
(2) Drill holes in mounting surface for
10-24 self tapping screws.
(3) Secure back plate to wall
(4) Install spacer washers and wire
receptacle and/or switch.
(5) Install cover plate with security
screws (special tamperproof tool
included). Additional tools available
upon request.
(6) For concrete block installation use
lead anchors and lag bolts in place of
self-tapping screws (side conduit is
required).
SPC Series
For poured wall construction
(1) Attach back plate to J-box with 6-32
screws provided.
(2) Nail back plate to concrete form.
(3) After forms have been stripped
remove 6-32 screws and discard.
(4) Wire and install switch or receptacle
using spacer washers provided.
(5) Remove sealant from security screw
threads in back plate.
(6) Install cover plate security screws.
Special tamperproof tool included.
Additional tools available upon
request.
SSB2-1D/T
SPC2-1D/T
2 Gang
Duplex
Receptacle
with
Telephone
or TV Outlet
SSB2-1D/B
SPC2-1D/B
2 Gang
Duplex
Receptacle
with Blank
SSB2-B
SPC2-B
2 Gang Blank
SSB3-2S/1D
SPC3-2S/1D
3 Gang
Double Switch
Duplex
Receptacle
SSB2-2S
SPC2-2S
2 Gang
Double Switch
SSB2-2D
SPC2-2D
2 Gang
Double
Duplex
Receptacle
SSB2-2R
SPC2-2R
2 Gang
Double
Ground Fault
Interrupter
Receptacles
SSB2-1S/1D
SPC2-1S/1D
2 Gang Single
Switch Duplex
Receptacle
SSB1-1S
SPC1-1S
Single Switch
SSB1-1D
SPC1-1D
Duplex
Receptacle
SSB1-1R
SPC1-1R
Ground Fault
Interrupter
Receptacle
SSB1-T
SPC1-T
TV or
Telephone
Outlet
SSB1-B
SPC1-B
Blank
Notes: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change
without notice.
1Other configurations available. Consult Factory.
