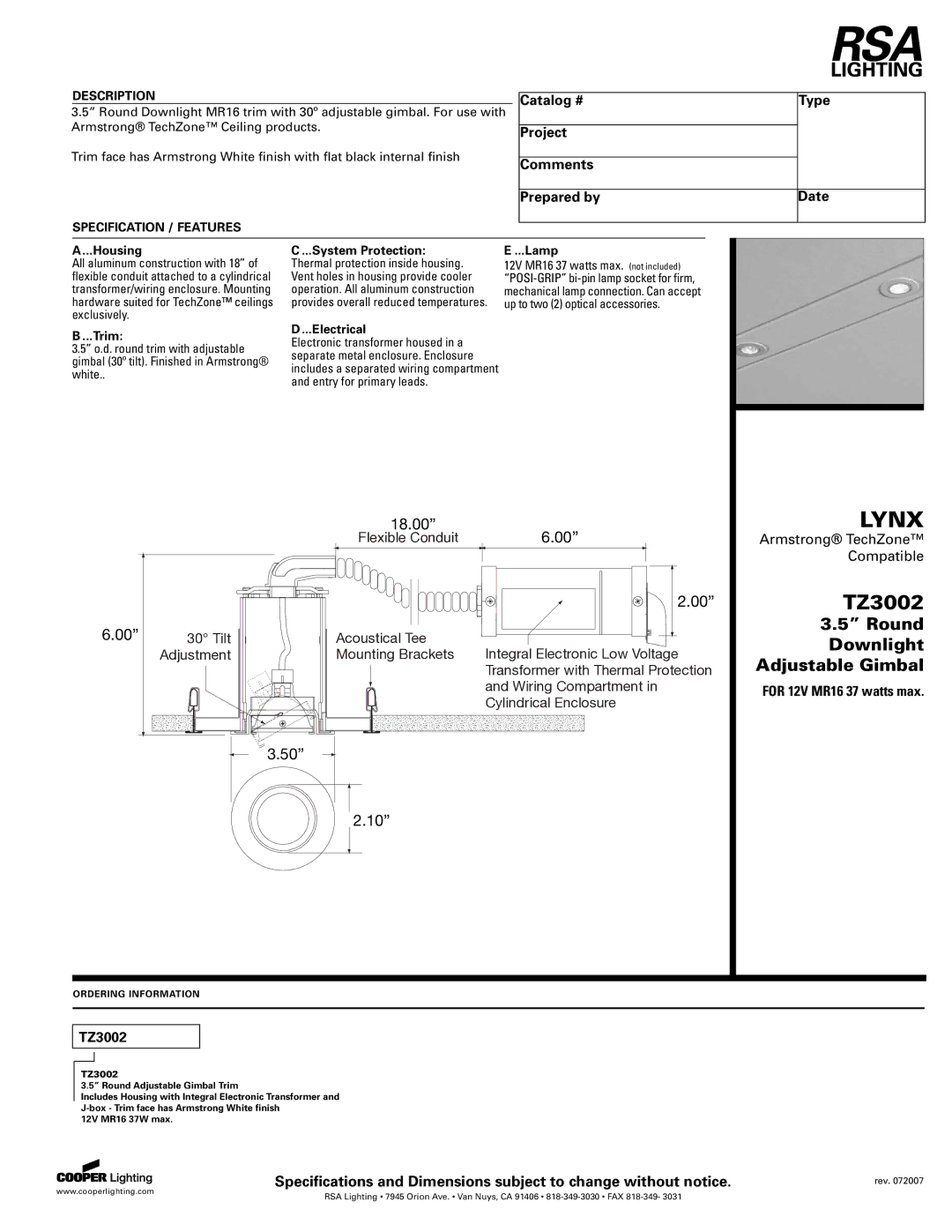

Cooper Lighting TZ3002 specifications Lynx, 3.5” Round Downlight Adjustable Gimbal, 18.00”, 6.00”

DESCRIPTION

3.5” Round Downlight MR16 trim with 30º adjustable gimbal. For use with Armstrong® TechZone™ Ceiling products.

Trim face has Armstrong White finish with flat black internal finish

SPECIFICATION / FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A....Housing

All aluminum construction with 18” of flexible conduit attached to a cylindrical transformer/wiring enclosure. Mounting hardware suited for TechZone™ ceilings exclusively.

B....Trim:

3.5” o.d. round trim with adjustable gimbal (30º tilt). Finished in Armstrong® white..

C....System Protection:

Thermal protection inside housing. Vent holes in housing provide cooler operation. All aluminum construction provides overall reduced temperatures.

D....Electrical

Electronic transformer housed in a separate metal enclosure. Enclosure includes a separated wiring compartment and entry for primary leads.

E....Lamp

12V MR16 37 watts max. (not included) “POSI-GRIP” bi-pin lamp socket for firm, mechanical lamp connection. Can accept up to two (2) optical accessories.

		18.00”	6.00”
		Flexible Conduit
			2.00”
6.00”	30° Tilt	Acoustical Tee	Integral Electronic Low Voltage
	Adjustment	Mounting Brackets
			Transformer with Thermal Protection
			and Wiring Compartment in
			Cylindrical Enclosure

LYNX

Armstrong® TechZone™ Compatible

TZ3002

3.5” Round

Downlight

Adjustable Gimbal

FOR 12V MR16 37 watts max.

3.50”

2.10”

ORDERING INFORMATION

TZ3002

TZ3002

3.5” Round Adjustable Gimbal Trim

Includes Housing with Integral Electronic Transformer and J-box - Trim face has Armstrong White finish

12V MR16 37W max.

Specifications and Dimensions subject to change without notice. rev. 072007
