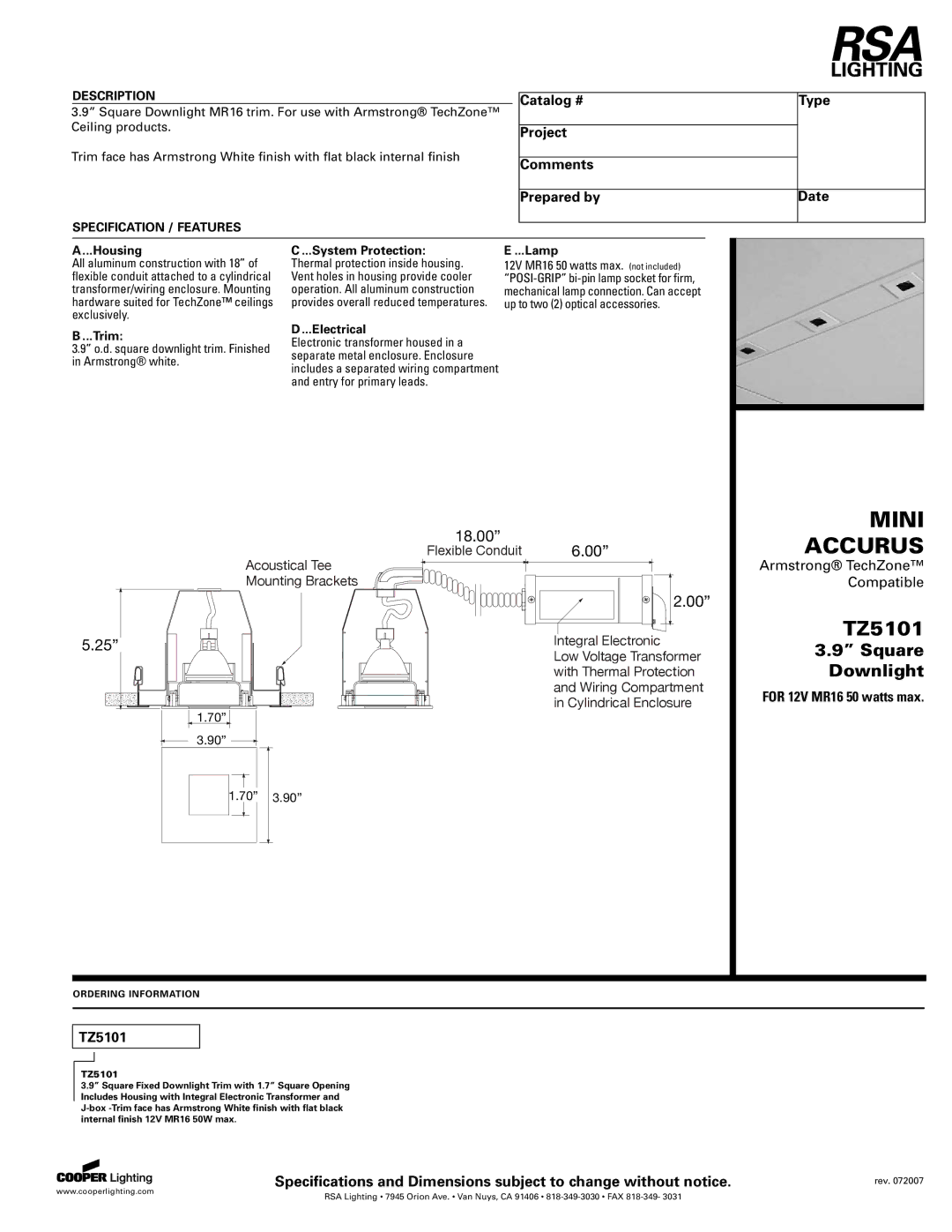

Cooper Lighting TZ5101 specifications Mini Accurus, 3.9” Square Downlight, 5.25”, 6.00” 2.00”

DESCRIPTION

3.9” Square Downlight MR16 trim. For use with Armstrong® TechZone™ Ceiling products.

Trim face has Armstrong White finish with flat black internal finish

SPECIFICATION / FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A....Housing

All aluminum construction with 18” of flexible conduit attached to a cylindrical transformer/wiring enclosure. Mounting hardware suited for TechZone™ ceilings exclusively.

B....Trim:

3.9” o.d. square downlight trim. Finished in Armstrong® white.

C....System Protection:

Thermal protection inside housing. Vent holes in housing provide cooler operation. All aluminum construction provides overall reduced temperatures.

D....Electrical

Electronic transformer housed in a separate metal enclosure. Enclosure includes a separated wiring compartment and entry for primary leads.

E....Lamp

12V MR16 50 watts max. (not included) “POSI-GRIP” bi-pin lamp socket for firm, mechanical lamp connection. Can accept up to two (2) optical accessories.

18.00” Flexible ConduitAcoustical Tee

Mounting Brackets

5.25”

1.70”

3.90”

6.00”

2.00”

Integral Electronic

Low Voltage Transformer with Thermal Protection and Wiring Compartment in Cylindrical Enclosure

MINI

ACCURUS

Armstrong® TechZone™ Compatible

TZ5101

3.9” Square

Downlight

FOR 12V MR16 50 watts max.

1.70” 3.90”

ORDERING INFORMATION

TZ5101

TZ5101

3.9” Square Fixed Downlight Trim with 1.7” Square Opening Includes Housing with Integral Electronic Transformer and J-box -Trim face has Armstrong White finish with flat black internal finish 12V MR16 50W max.

Specifications and Dimensions subject to change without notice. rev. 072007

www.cooperlighting.com RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
