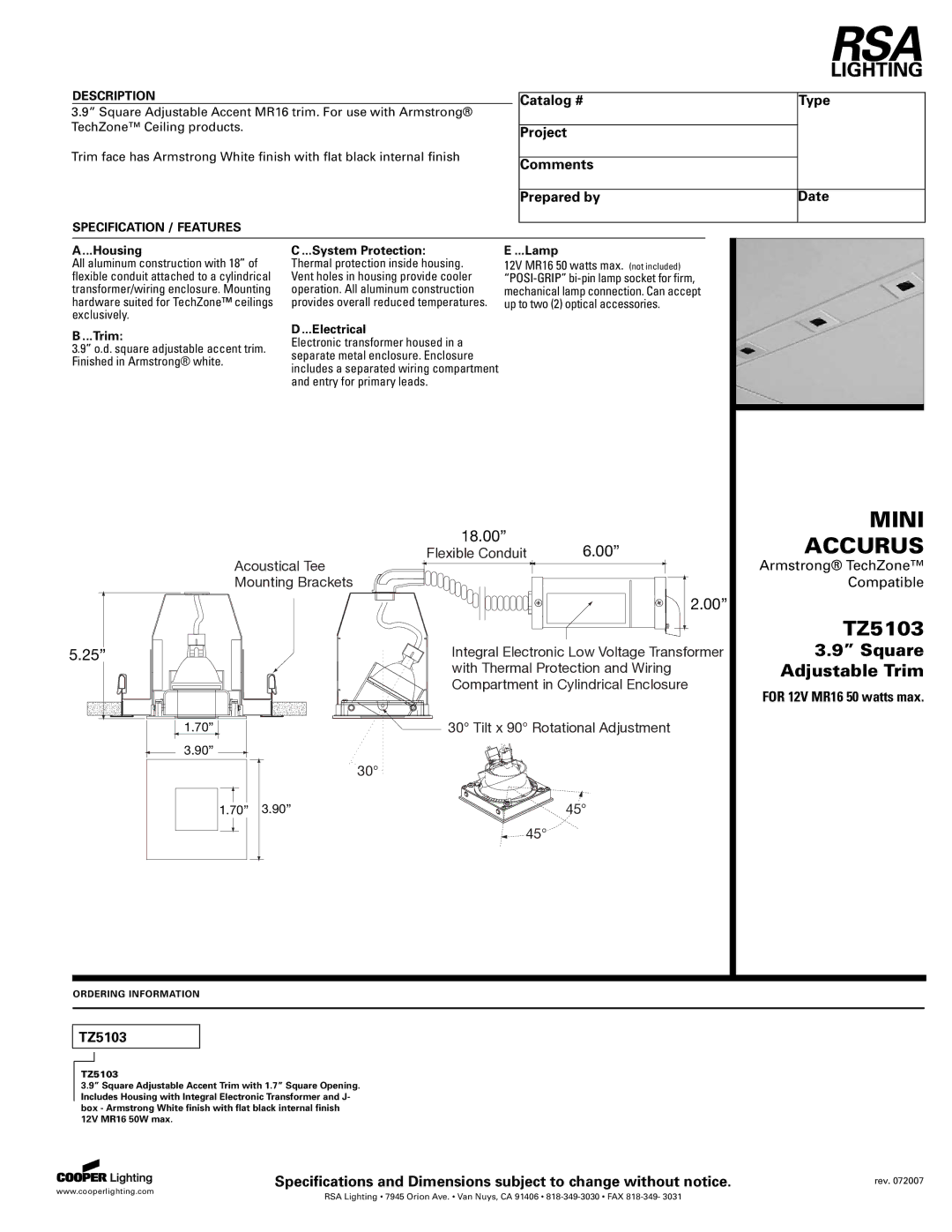

3.9” Square Adjustable Accent MR16 trim. For use with Armstrong® TechZone™ Ceiling products.
Trim face has Armstrong White finish with flat black internal finish
SPECIFICATION / FEATURESCatalog #
Project
Comments
Prepared by
Type
Date
All aluminum construction with 18” of flexible conduit attached to a cylindrical transformer/wiring enclosure. Mounting hardware suited for TechZone™ ceilings exclusively.
B....Trim:3.9” o.d. square adjustable accent trim. Finished in Armstrong® white.
Thermal protection inside housing. Vent holes in housing provide cooler operation. All aluminum construction provides overall reduced temperatures.
D....ElectricalElectronic transformer housed in a separate metal enclosure. Enclosure includes a separated wiring compartment and entry for primary leads.
12V MR16 50 watts max. (not included)
|
| 18.00” |
|
Acoustical Tee | Flexible Conduit | 6.00” | |
|
| ||
Mounting Brackets |
|
| |
|
|
| 2.00” |
5.25” |
| Integral Electronic Low Voltage Transformer | |
|
| with Thermal Protection and Wiring | |
|
| Compartment in Cylindrical Enclosure | |
1.70” |
| 30° Tilt x 90° Rotational Adjustment | |
3.90” |
|
|
|
|
| 30° |
|
1.70” | 3.90” |
| 45° |
|
| 45° |
|
MINI
ACCURUS
Armstrong® TechZone™ CompatibleTZ5103
3.9” Square Adjustable Trim
FOR 12V MR16 50 watts max.ORDERING INFORMATION
TZ5103
TZ5103
3.9” Square Adjustable Accent Trim with 1.7” Square Opening. Includes Housing with Integral Electronic Transformer and J- box - Armstrong White finish with flat black internal finish 12V MR16 50W max.
Specifications and Dimensions subject to change without notice. | rev. 072007 |
