COOPER LIGHTING - METALUX®

SURFACE

D I M E N S I O N S

LENGTH



A









B











4'









10" (254mm)









3-1/8" (79mm)



































































































































































































































































































































































































































































































































































































































































































































































































































D E S C R I P T I O N

The Ultra architectural designer modules have been designed to provide an energy efficient, low profile, low brightness luminaire that has an attractive modular styling. The Ultra Series is styled to be a luminaire with visual appeal for surface, stem or cable mounted installations. The low profile appearance of the luminaire and the door frame aesthetics blend to create an effective linear lighting system. This series can be used as a single lighting element or is an excellent choice when the specifications calls for a continuous row system for retail merchandising or commercial applications. Continuous row fixtures utilize 4' door frame sections and injection molded center mullion.

UT SERIES

4 ' o r 8 ' S u r f a c e 2 L a m p s W h i t e D o o r

F r a m e / P r i s m a t i c A c r y l i c L e n s

L O W P R O F I L E A R C H I T E C T U R A L D E S I G N E R M O D U L E S

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : U T - 2 3 2 A - 1 2 0 V - E B 8 1 - U

Die formed housing of



code gauge prime cold



rolled steel

Decorative injection

Tandem

Blank=4' Length

8T=8' Length

Housing B/W

4' Door Frame

Sections

UT=Ultra Series

Leave Blank for Single Element C=Continuous Row (In Row)

No Decorative End Plates

E=Continuous Row End (End of Row)

Decorative End Plates on one end only

Number of



Voltage (1)

Lamps



120V=120 Volt

2=2 Lamps



277V=277 Volt

(Not Included)

347V=347 Volt





UNV=Universal

Wattage (Length)

Voltage 120-277(2)

32=32W T8

(48")



Lens

A=#12 Pattern Acrylic (Standard) A125=#12 Pattern Acrylic (.125" thick)

Options

GL=Single Element Fuse

GM=Double Element Fuse Emergency - for EM installed, see EM options table

































































Options



Packaging













(See Options



U=Unit Pack









Ballast Type (1)





Section)





















ER8 = T8 Electronic Program Rapid Start.

Total Harmonic Distortion < 10%









No. of Ballast



















1, 2 or 3























EB8 = T8 Electronic Instant Start.









Total Harmonic Distortion < 10%









No. of Ballast



















1, 2 or 3























EB8 /PLUS= T8 Electronic Instant Start.









No. of

High Ballast Factor >1.13.









Total Harmonic Distortion < 20%

Ballast























1, 2 or 3























(For complete details on generic or to specify manufacturer’s ballast see pg. 469)



molded white end plate(3)

• Low profile housing design



for architectural appeal

Utilizes energy efficient



ballasts and dedicated



T8 Lamps

Door frame positively



secured by integral spring



steel clips

Softly styled, extruded



aluminum door frame with



low brightness prismatic



lens

• Surface, stem or cable



mounting accessories

NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.

(3)2 endplates provided with each fixture.

For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representative for availability and ordering information.

Durable, baked white



polyester powder finish



housing and door frame

UL/CUL Listed. Suitable for



damp locations.

I N S TA L L AT I O N D ATA

STEM

CABLE

SURFACE

MOUNTING

MOUNTING

MOUNTING

COOPER LIGHTING

417

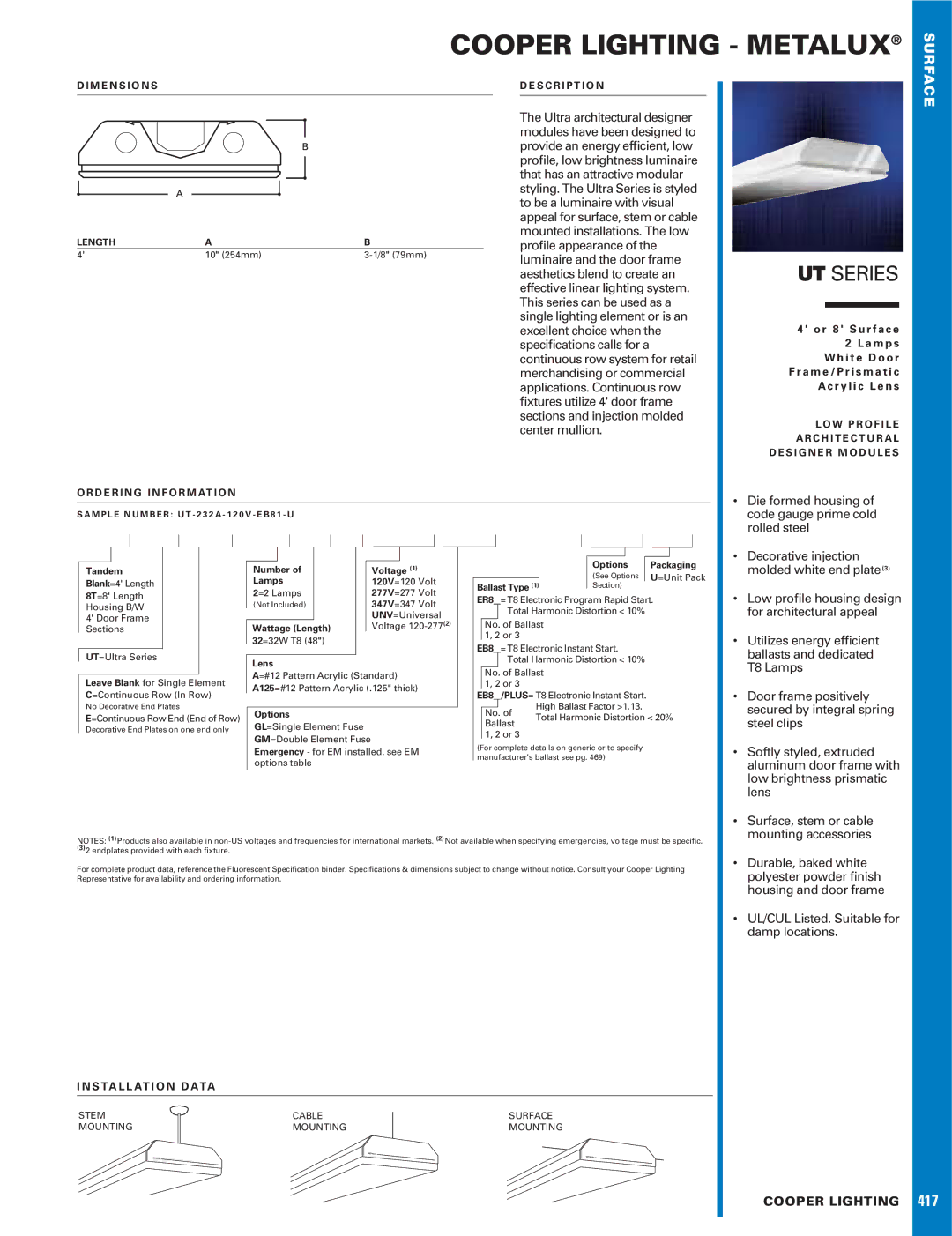

Page 1
