Cooper Lighting UX Series, UX NEMA 4X dimensions T i m a t e E x i t O n l y L f P o w e r e d

Lights

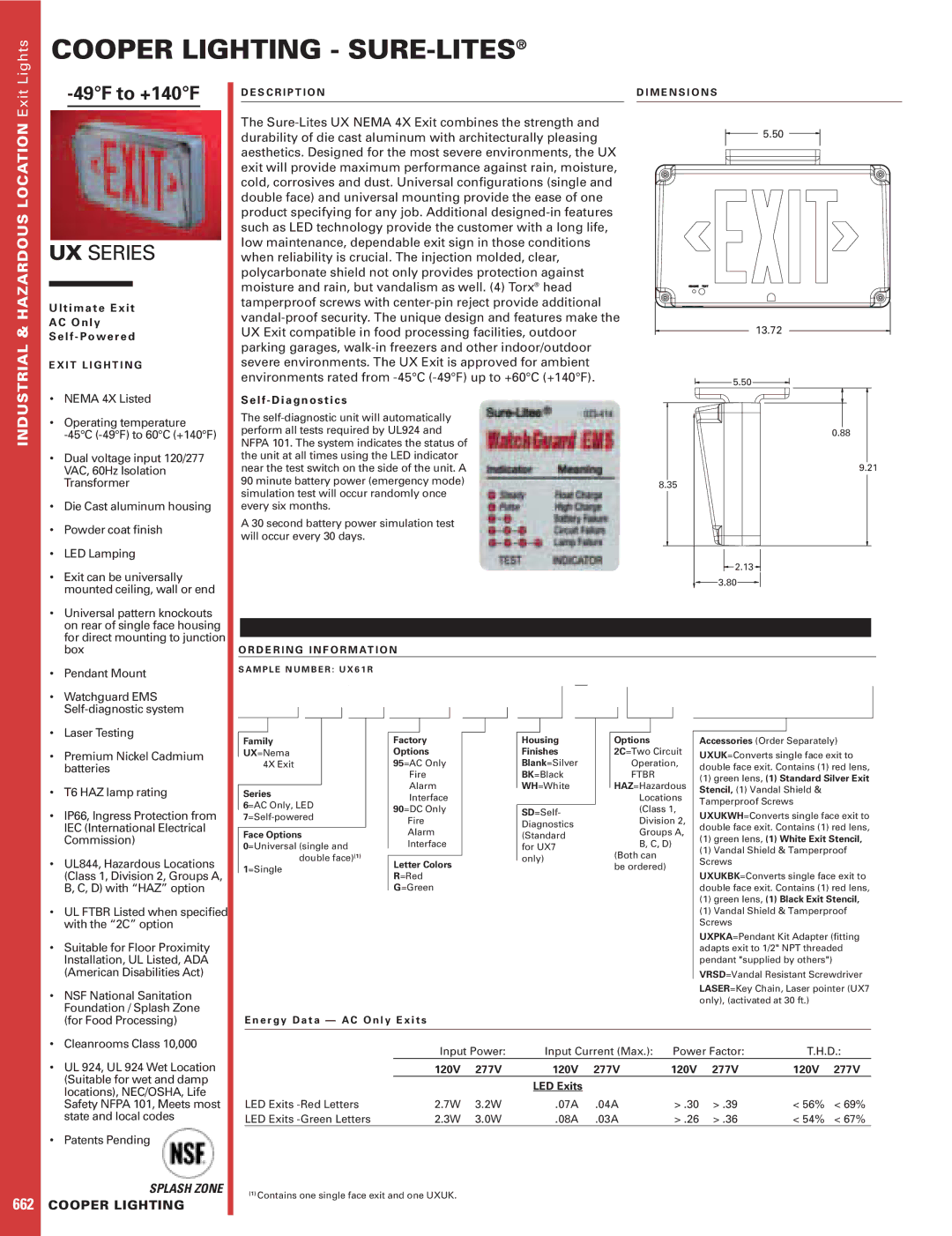

COOPER LIGHTING - SURE-LITES®

INDUSTRIAL & HAZARDOUS LOCATION Exit

-49°F to +140°F

UX SERIES

U l t i m a t e E x i t

A C O n l y

S e l f - P o w e r e d

E X I T L I G H T I N G

•	NEMA 4X Listed
•	Operating temperature
	-45°C (-49°F) to 60°C (+140°F)
• Dual voltage input 120/277
	VAC, 60Hz Isolation
	Transformer
• Die Cast aluminum housing
•	Powder coat finish
•	LED Lamping
• Exit can be universally
	mounted ceiling, wall or end
•	Universal pattern knockouts
	on rear of single face housing
	for direct mounting to junction

D E S C R I P T I O N

The Sure-Lites UX NEMA 4X Exit combines the strength and durability of die cast aluminum with architecturally pleasing aesthetics. Designed for the most severe environments, the UX exit will provide maximum performance against rain, moisture, cold, corrosives and dust. Universal configurations (single and double face) and universal mounting provide the ease of one product specifying for any job. Additional designed-in features such as LED technology provide the customer with a long life, low maintenance, dependable exit sign in those conditions when reliability is crucial. The injection molded, clear, polycarbonate shield not only provides protection against moisture and rain, but vandalism as well. (4) Torx® head tamperproof screws with center-pin reject provide additional vandal-proof security. The unique design and features make the UX Exit compatible in food processing facilities, outdoor parking garages, walk-in freezers and other indoor/outdoor severe environments. The UX Exit is approved for ambient environments rated from -45°C (-49°F) up to +60°C (+140°F).

S e l f - D i a g n o s t i c s

The self-diagnostic unit will automatically perform all tests required by UL924 and NFPA 101. The system indicates the status of the unit at all times using the LED indicator near the test switch on the side of the unit. A 90 minute battery power (emergency mode) simulation test will occur randomly once every six months.

A 30 second battery power simulation test will occur every 30 days.

D I M E N S I O N S

5.50

13.72

5.50

0.88

9.21

8.35

2.13

3.80

	box
•	Pendant Mount
•	Watchguard EMS
	Self-diagnostic system
•	Laser Testing

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : U X 6 1 R

•	Premium Nickel Cadmium
	batteries
• T6 HAZ lamp rating
• IP66, Ingress Protection from
	IEC (International Electrical
	Commission)
•	UL844, Hazardous Locations
	(Class 1, Division 2, Groups A,
	B, C, D) with “HAZ” option
• UL FTBR Listed when specified
	with the “2C” option
• Suitable for Floor Proximity
	Installation, UL Listed, ADA
	(American Disabilities Act)
•	NSF National Sanitation
	Foundation / Splash Zone

Family

UX=Nema

4X Exit

Series

6=AC Only, LED

7=Self-powered

Face Options

0=Universal (single and double face)(1)

1=Single

Factory

Options

95=AC Only

Fire

Alarm

Interface

90=DC Only

Fire

Alarm

Interface

Letter Colors

R=Red

G=Green

Housing

Finishes

Blank=Silver

BK=Black

WH=White

SD=Self- Diagnostics (Standard for UX7 only)

Options

2C=Two Circuit Operation,

FTBR HAZ=Hazardous

Locations (Class 1, Division 2, Groups A, B, C, D)

(Both can be ordered)

Accessories (Order Separately)

UXUK=Converts single face exit to double face exit. Contains (1) red lens,

(1)green lens, (1) Standard Silver Exit Stencil, (1) Vandal Shield & Tamperproof Screws

UXUKWH=Converts single face exit to double face exit. Contains (1) red lens,

(1)green lens, (1) White Exit Stencil,

(1)Vandal Shield & Tamperproof Screws

UXUKBK=Converts single face exit to double face exit. Contains (1) red lens,

(1)green lens, (1) Black Exit Stencil,

(1)Vandal Shield & Tamperproof Screws

UXPKA=Pendant Kit Adapter (fitting adapts exit to 1/2" NPT threaded pendant "supplied by others")

VRSD=Vandal Resistant Screwdriver

LASER=Key Chain, Laser pointer (UX7 only), (activated at 30 ft.)

662

	(for Food Processing)
•	Cleanrooms Class 10,000
• UL 924, UL 924 Wet Location
	(Suitable for wet and damp
	locations), NEC/OSHA, Life
	Safety NFPA 101, Meets most
	state and local codes
•	Patents Pending

SPLASH ZONE

COOPER LIGHTING

E n e r g y D a t a — A C O n l y E x i t s

	Input Power:		Input Current (Max.):		Power Factor:		T.H.D.:
	120V	277V	120V	277V	120V	277V	120V	277V
			LED Exits
LED Exits -Red Letters	2.7W	3.2W	.07A	.04A	> .30	> .39	< 56%	< 69%
LED Exits -Green Letters	2.3W	3.0W	.08A	.03A	> .26	> .36	< 54%	< 67%

(1)Contains one single face exit and one UXUK.
