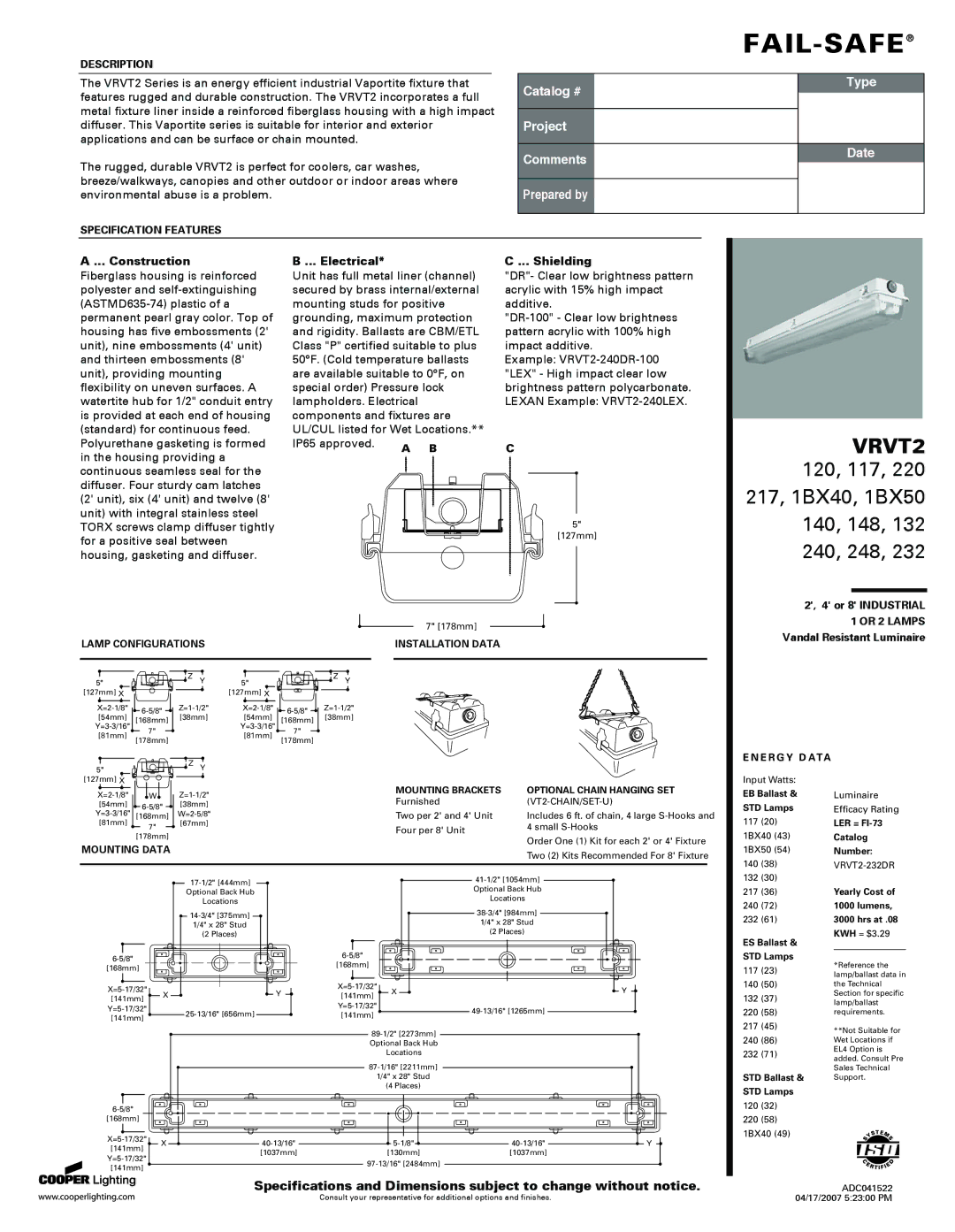

Cooper Lighting VRVT2 specifications Fail-Safe, Catalog #, Project Comments, Prepared by, Type

DESCRIPTION

The VRVT2 Series is an energy efficient industrial Vaportite fixture that features rugged and durable construction. The VRVT2 incorporates a full metal fixture liner inside a reinforced fiberglass housing with a high impact diffuser. This Vaportite series is suitable for interior and exterior applications and can be surface or chain mounted.

The rugged, durable VRVT2 is perfect for coolers, car washes, breeze/walkways, canopies and other outdoor or indoor areas where environmental abuse is a problem.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

FAIL-SAFE®

TypeDate

A ... Construction

Fiberglass housing is reinforced polyester and self-extinguishing (ASTMD635-74) plastic of a permanent pearl gray color. Top of housing has five embossments (2' unit), nine embossments (4' unit) and thirteen embossments (8' unit), providing mounting flexibility on uneven surfaces. A watertite hub for 1/2" conduit entry is provided at each end of housing (standard) for continuous feed. Polyurethane gasketing is formed in the housing providing a continuous seamless seal for the diffuser. Four sturdy cam latches (2' unit), six (4' unit) and twelve (8' unit) with integral stainless steel TORX screws clamp diffuser tightly for a positive seal between housing, gasketing and diffuser.

B ... Electrical*

Unit has full metal liner (channel) secured by brass internal/external mounting studs for positive grounding, maximum protection and rigidity. Ballasts are CBM/ETL Class "P" certified suitable to plus 50°F. (Cold temperature ballasts are available suitable to 0°F, on special order) Pressure lock lampholders. Electrical components and fixtures are UL/CUL listed for Wet Locations.**

IP65 approved. A B

C ... Shielding

"DR"- Clear low brightness pattern acrylic with 15% high impact additive.

"DR-100" - Clear low brightness pattern acrylic with 100% high impact additive.

Example: VRVT2-240DR-100 "LEX" - High impact clear low brightness pattern polycarbonate. LEXAN Example: VRVT2-240LEX.

C

5"

[127mm]

VRVT2

120, 117, 220 217, 1BX40, 1BX50 140, 148, 132 240, 248, 232

2', 4' or 8' INDUSTRIAL

7" [178mm]

LAMP CONFIGURATIONS INSTALLATION DATA

1 OR 2 LAMPS Vandal Resistant Luminaire

5"		Z	Y
[127mm] X
X=2-1/8"	6-5/8"	Z=1-1/2"
[54mm]		[38mm]
	[168mm]
Y=3-3/16"
[81mm]	7"
	[178mm]
5"		Z	Y
[127mm] X

X=2-1/8" W Z=1-1/2"

[54mm] 6-5/8" [38mm] Y=3-3/16" [168mm] W=2-5/8"

[81mm] 7" [67mm] [178mm]

MOUNTING DATA

5"		Z Y
[127mm] X
X=2-1/8"	6-5/8"	Z=1-1/2"
[54mm]		[38mm]
	[168mm]
Y=3-3/16"
[81mm]	7"
	[178mm]

MOUNTING BRACKETS	OPTIONAL CHAIN HANGING SET
Furnished	(VT2-CHAIN/SET-U)
Two per 2' and 4' Unit	Includes 6 ft. of chain, 4 large S-Hooks and
Four per 8' Unit	4 small S-Hooks
	Order One (1) Kit for each 2' or 4' Fixture
	Two (2) Kits Recommended For 8' Fixture

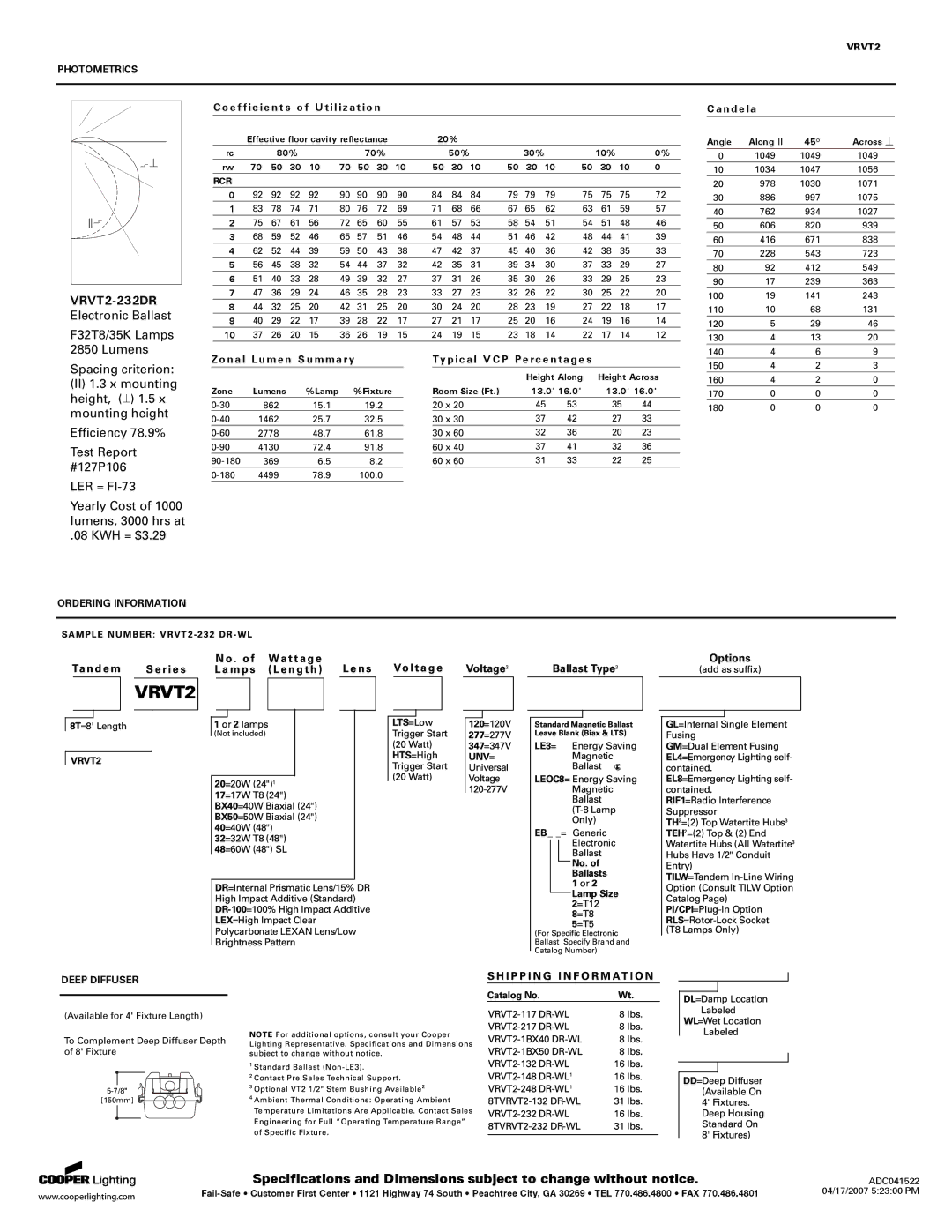

E N E R G Y D ATA

Input Watts:
EB Ballast &	Luminaire
STD Lamps	Efficacy Rating
117 (20)	LER = FI-73
1BX40 (43)	Catalog
1BX50 (54)	Number:
140 (38)	VRVT2-232DR

		17-1/2" [444mm]			41-1/2" [1054mm]
					Optional Back Hub
		Optional Back Hub
					Locations
		Locations
		14-3/4" [375mm]			38-3/4" [984mm]
					1/4" x 28" Stud
		1/4" x 28" Stud
					(2 Places)
		(2 Places)
6-5/8"			6-5/8"
			[168mm]
[168mm]
X=5-17/32"	X	Y	X=5-17/32"	X		Y
			[141mm]
[141mm]
			Y=5-17/32"
Y=5-17/32"		25-13/16" [656mm]			49-13/16" [1265mm]
			[141mm]
[141mm]
			89-1/2" [2273mm]
			Optional Back Hub
				Locations
			87-1/16" [2211mm]
			1/4" x 28" Stud
				(4 Places)
6-5/8"
[168mm]
X=5-17/32"	X	40-13/16"		5-1/8"	40-13/16"	Y
[141mm]
		[1037mm]		[130mm]	[1037mm]
Y=5-17/32"

[141mm] 97-13/16" [2484mm]

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

132 (30)
217 (36)	Yearly Cost of
240 (72)	1000 lumens,
232 (61)	3000 hrs at .08
ES Ballast &	KWH = $3.29
STD Lamps
	*Reference the
117 (23)
	lamp/ballast data in
140 (50)
	the Technical
132 (37)	Section for specific
	lamp/ballast
220 (58)
	requirements.
217 (45)	**Not Suitable for
240 (86)
	Wet Locations if
232 (71)	EL4 Option is
	added. Consult Pre
STD Ballast &	Sales Technical
	Support.

STD Lamps 120 (32)

220 (58) 1BX40 (49)

ADC041522 04/17/2007 5:23:00 PM
