TRIM

COOPER LIGHTING - METALUX®

RESIDENTIAL – WRAPAROUND OAK

WRAPAROUND OAK TRIM ENDS/SIDES

SERIES

2 ' O R 4 ' S u r f a c e 2 O R 4 L a m p s

S U R F A C E W R A PA R O U N D

White Acrylic diffuser now available

Uses two or four fluorescent lamps (not included)

Low profile

Light oak ends or ends/sides

Low brightness/extruded acrylic refractor

Lift and shift refractor for ease of re-lamping

UL/CUL Listed

D E S C R I P T I O N



D I M E N S I O N S (1, 2)

The efficient and economical Wraparound Oak Trim Ends/Sides Series is the perfect wraparound for kitchens, family rooms, dens and dining areas.

O A K T R I M E N D S

The Metalux Residential Wraparound Oak Trim Ends Series features economy and energy efficient performance. The luminaire’s characteristic clean, low profile design is both appealing and practically functional. The Oak Trim Ends Series features a decorative solid light oak wood end plate.

O A K T R I M E N D S / S I D E S

The Wraparound Oak Trim Ends/Sides Series features economy and energy efficient performance. The luminaire’s characteristic clean, low profile design is both appealing and practically functional. The Oak Trim Ends/Sides Series features a decorative solid light oak wood end plate and wood rails along the sides of the fixture housing.

O R D E R I N G I N F O R M AT I O N (4)

Catalog





Shipping

Number (3)



Description

Wt.

LIGHT OAK WRAPAROUND ENDS/SIDES WITH CLEAR LENS



W2022



2 lamp, 2', 20W T12, Light Oak Wood Ends

6 lbs. (2.7kg)

W2122



2 lamp, 2', 20W T12, Light Oak Wood Ends & Sides

6 lbs. (2.7kg)

W2024

W2024E

2 lamp, 4', 40W T12, Light Oak Wood Ends

13 lbs. (5.9kg)

W2044

W2044E

4 lamp, 4', 40W T12, Light Oak Wood Ends

20 lbs. (9kg)

W2124

W2124E

2 lamp, 4', 40W T12, Light Oak Wood Ends & Sides

13 lbs. (5.9kg)

W2144

W2144E

4 lamp, 4', 40W T12, Light Oak Wood Ends & Sides

20 lbs. (9kg)

LIGHT OAK ENDS WRAPAROUND WITH WHITE LENS



W2322



2 lamp, 2', 20W T12, Light Oak Wood Ends

6 lbs. (2.7kg)

W2324

W2324E

2 lamp, 4', 40W T12, Light Oak Wood Ends

13 lbs. (5.9kg)

W2324-REB1



2 lamp, 4', 32W T8, Light Oak Wood Ends

13 lbs. (5.9kg)

W2344

W2344E

4 lamp, 4', 40W T12, Light Oak Wood Ends

20 lbs. (9kg)

W2344-REB1



4 lamp, 4', 32W T8, Light Oak Wood Ends

20 lbs. (9kg)

496

COOPER LIGHTING

NOTE: (1) Specifications & Dimensions Subject To Change Without Notice. (2) Dimensions are listed in nominal terms. (3) “E” in catalog number means Electronic Ballast

that operates T12 lamps. (4) Consult your Cooper Lighting Representative for availability and ordering

Page 1

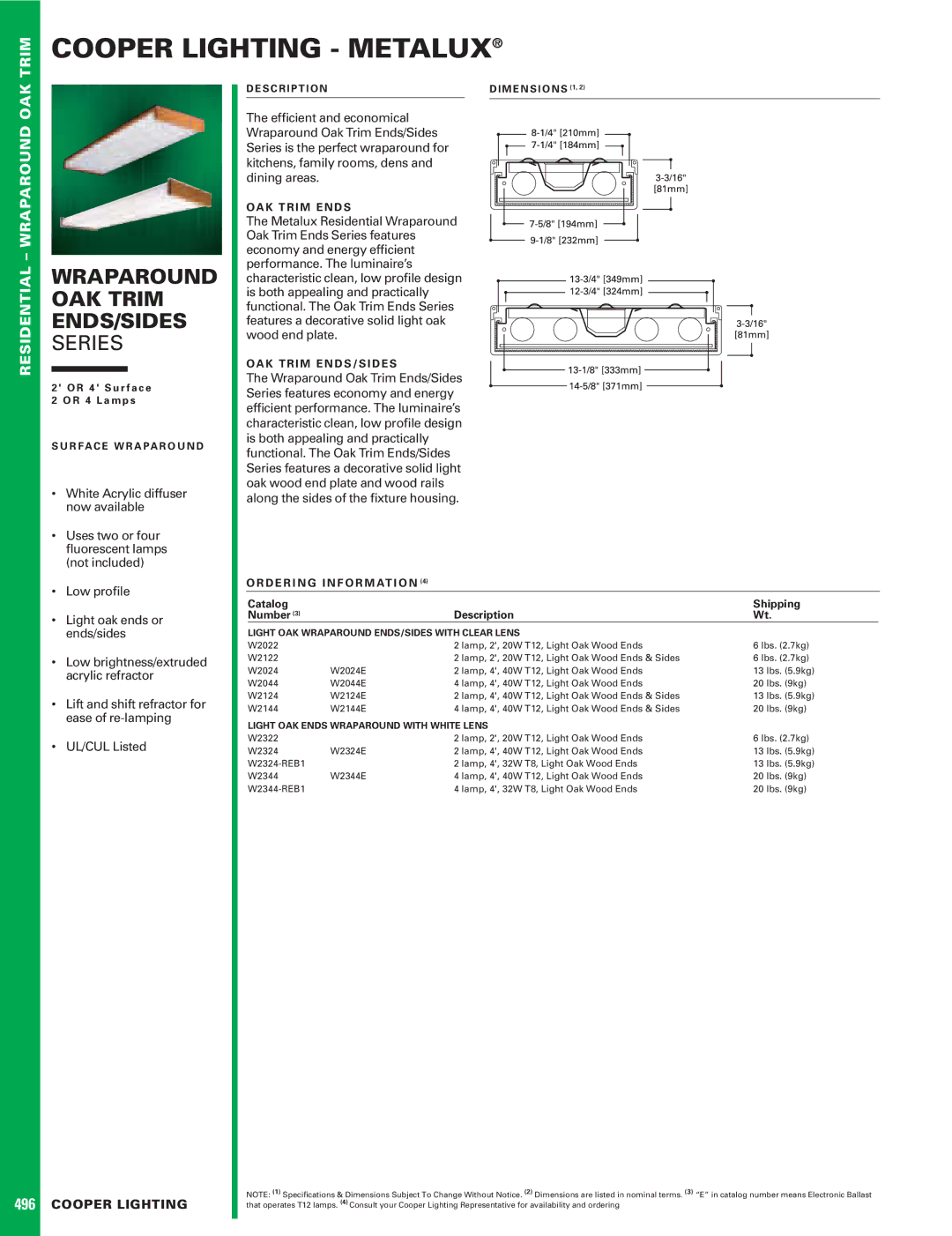

Image 1
Cooper Lighting W2022 dimensions Cooper Lighting Metalux, Wraparound OAK Trim ENDS/SIDES, Series, 496
