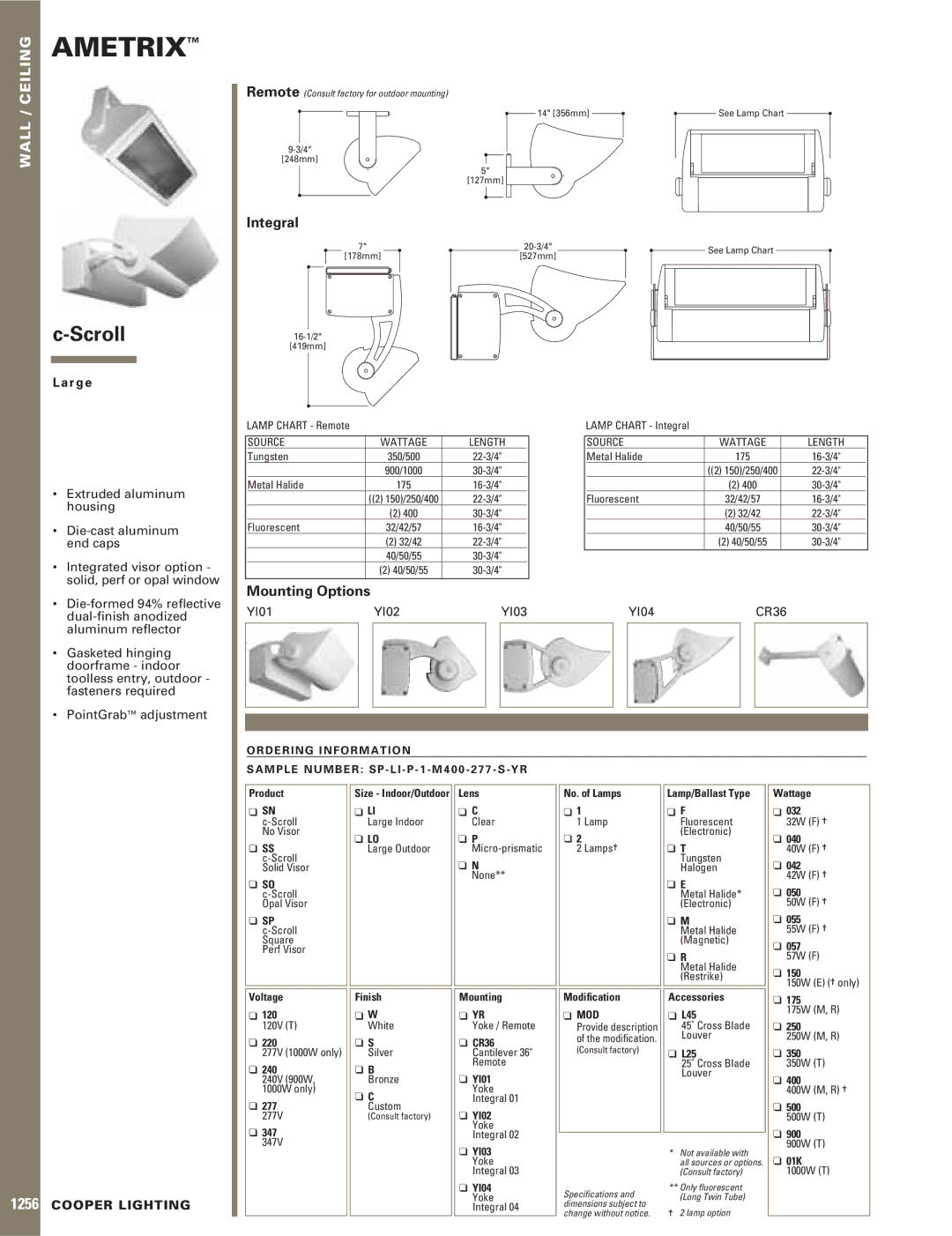

Cooper Lighting Wall/Ceiling Lighting specifications Ametrix, c-Scroll, 1256, Wall / Ceiling

WALL / CEILING

AMETRIX™

Remote (Consult factory for outdoor mounting)

14" [356mm] See Lamp Chart

9-3/4"

[248mm]

5"

[127mm]

c-Scroll

L a r g e

Integral

7"

[178mm]

16-1/2"

[419mm]

20-3/4"

[527mm]

See Lamp Chart

• Extruded aluminum

housing

• Die-cast aluminum

end caps

• Integrated visor option -

solid, perf or opal window

LAMP CHART - Remote

SOURCE	WATTAGE	LENGTH
Tungsten	350/500	22-3/4"
	900/1000	30-3/4"
Metal Halide	175	16-3/4"
	((2) 150)/250/400	22-3/4"
	(2) 400	30-3/4"
Fluorescent	32/42/57	16-3/4"
	(2) 32/42	22-3/4"
	40/50/55	30-3/4"
	(2) 40/50/55	30-3/4"

LAMP CHART - Integral

SOURCE	WATTAGE	LENGTH
Metal Halide	175	16-3/4"
	((2) 150)/250/400	22-3/4"
	(2) 400	30-3/4"
Fluorescent	32/42/57	16-3/4"
	(2) 32/42	22-3/4"
	40/50/55	30-3/4"
	(2) 40/50/55	30-3/4"

•	Die-formed 94% reflective
	dual-finish anodized
	aluminum reflector
•	Gasketed hinging
	doorframe - indoor
	toolless entry, outdoor -
	fasteners required
•	PointGrab™ adjustment

Mounting Options

YI01 YI02 YI03 YI04 CR36

O R D E R I N G I N F O R M A T I O N

S A M P L E N U M B E R : S P - L I - P - 1 - M 4 0 0 - 2 7 7 - S - Y R

1256

COOPER LIGHTING

Product

❑SN c-Scroll No Visor

❑SS c-Scroll Solid Visor

❑SO c-Scroll Opal Visor

❑SP c-Scroll Square Perf Visor

Voltage

❑120

120V (T)

❑220

277V (1000W only)

❑240

240V (900W,

1000W only)

❑277

277V

❑347

347V

Size - Indoor/Outdoor

❑LI

Large Indoor

❑LO

Large Outdoor

Finish

❑W White

❑S Silver

❑B Bronze

❑C Custom

(Consult factory)

Lens

❑C Clear

❑P Micro-prismatic

❑N None**

Mounting

❑YR

Yoke / Remote

❑CR36 Cantilever 36" Remote

❑YI01 Yoke Integral 01

❑YI02 Yoke Integral 02

❑YI03 Yoke Integral 03

❑YI04 Yoke Integral 04

No. of Lamps

❑1

1 Lamp

❑2

2 Lamps✝

Modification

❑MOD

Provide description of the modification.

(Consult factory)

Specifications and dimensions subject to change without notice.

Lamp/Ballast Type

❑F Fluorescent (Electronic)

❑T Tungsten Halogen

❑E

Metal Halide* (Electronic)

❑M

Metal Halide (Magnetic)

❑R

Metal Halide (Restrike)

Accessories

❑L45

45˚ Cross Blade Louver

❑L25

25˚ Cross Blade Louver

*Not available with

all sources or options. (Consult factory)

**Only fluorescent (Long Twin Tube)

✝2 lamp option

Wattage

❑032

32W (F) ✝

❑040

40W (F) ✝

❑042

42W (F) ✝

❑050

50W (F) ✝

❑055

55W (F) ✝

❑057

57W (F)

❑150

150W (E) (✝ only)

❑175

175W (M, R)

❑250

250W (M, R)

❑350

350W (T)

❑400

400W (M, R) ✝

❑500

500W (T)

❑900

900W (T)

❑01K

1000W (T)
