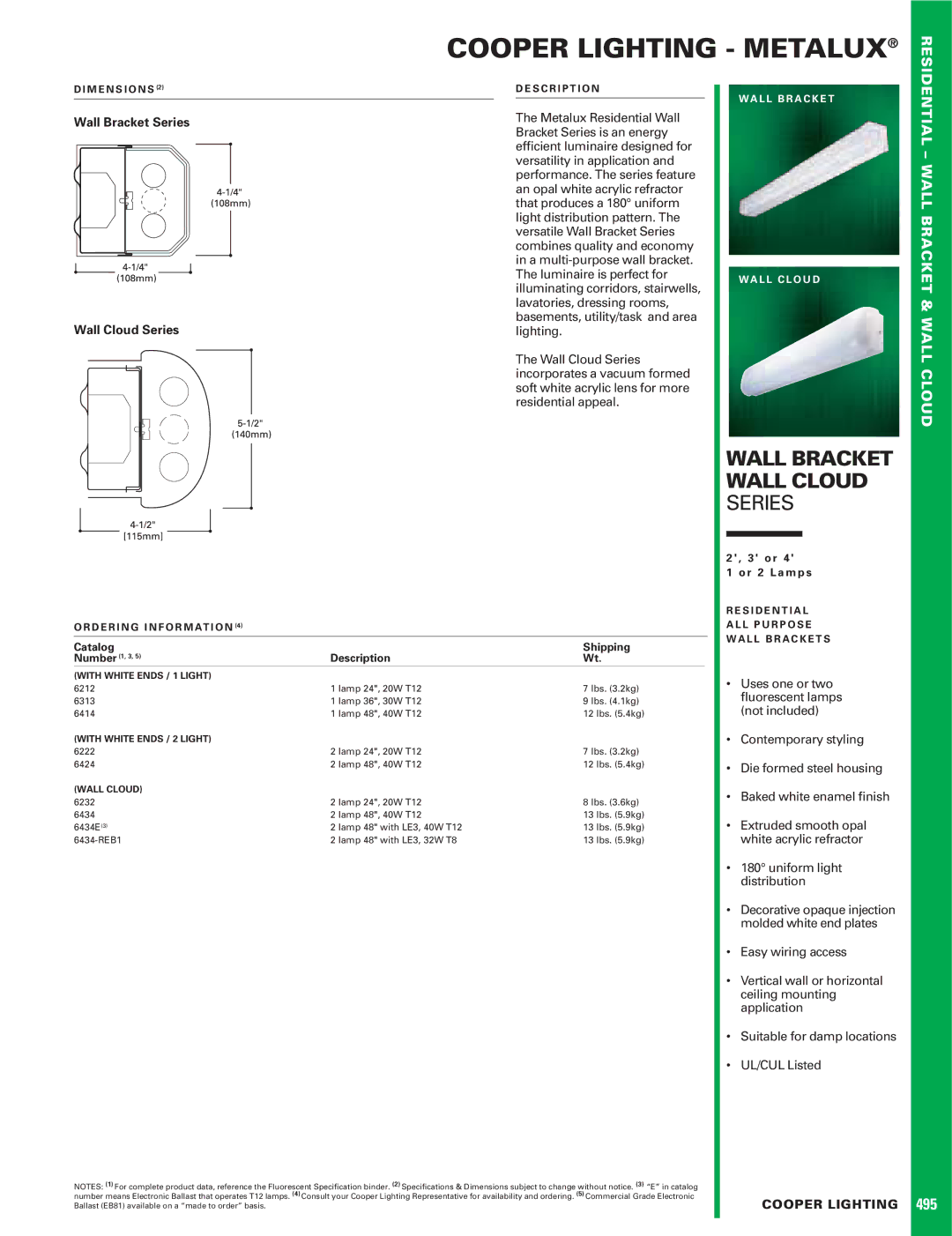

COOPER LIGHTING - METALUX®

D I M E N S I O N S (2)

Wall Bracket Series

Wall Cloud Series

O R D E R I N G I N F O R M AT I O N (4)

D E S C R I P T I O N

The Metalux Residential Wall Bracket Series is an energy efficient luminaire designed for versatility in application and performance. The series feature an opal white acrylic refractor that produces a 180° uniform light distribution pattern. The versatile Wall Bracket Series combines quality and economy in a multi-purpose wall bracket. The luminaire is perfect for illuminating corridors, stairwells, lavatories, dressing rooms, basements, utility/task and area lighting.

The Wall Cloud Series incorporates a vacuum formed soft white acrylic lens for more residential appeal.

W A L L B R A C K E T

W A L L C L O U D

WALL BRACKET WALL CLOUD SERIES

2 ' , 3 ' o r 4 '

1 o r 2 L a m p s

R E S I D E N T I A L

A L L P U R P O S E

W A L L B R A C K E T S

Catalog



Shipping

Number (1, 3, 5)

Description

Wt.

(WITH WHITE ENDS / 1 LIGHT)





6212

1 lamp 24", 20W T12

7 lbs. (3.2kg)

6313

1 lamp 36", 30W T12

9 lbs. (4.1kg)

6414

1 lamp 48", 40W T12

12 lbs. (5.4kg)

(WITH WHITE ENDS / 2 LIGHT)





6222

2 lamp 24", 20W T12

7 lbs. (3.2kg)

6424

2 lamp 48", 40W T12

12 lbs. (5.4kg)

(WALL CLOUD)





6232

2 lamp 24", 20W T12

8 lbs. (3.6kg)

6434

2 lamp 48", 40W T12

13 lbs. (5.9kg)

6434E(3)

2 lamp 48" with LE3, 40W T12

13 lbs. (5.9kg)

6434-REB1

2 lamp 48" with LE3, 32W T8

13 lbs. (5.9kg)

Uses one or two fluorescent lamps (not included)

Contemporary styling

Die formed steel housing

Baked white enamel finish

Extruded smooth opal white acrylic refractor

180° uniform light distribution

Decorative opaque injection molded white end plates

Easy wiring access

Vertical wall or horizontal ceiling mounting application

RESIDENTIAL – WALL BRACKET & WALL CLOUD

• Suitable for damp locations

• UL/CUL Listed

NOTES: (1) For complete product data, reference the Fluorescent Specification binder. (2) Specifications & Dimensions subject to change without notice. (3) “E” in catalog



number means Electronic Ballast that operates T12 lamps. (4) Consult your Cooper Lighting Representative for availability and ordering. (5) Commercial Grade Electronic

COOPER LIGHTING

Ballast (EB81) available on a “made to order” basis.

495

Page 1
Image 1
Cooper Lighting dimensions Cooper Lighting Metalux, Wall Bracket Series Wall Cloud Series

Wall Cloud, Wall Bracket specifications

Cooper Lighting has carved out a niche in the lighting industry with its innovative wall brackets, particularly the Wall Cloud series. Designed to meet the demanding needs of various environments, Wall Cloud wall brackets embody a blend of functionality, durability, and aesthetics. These fixtures cater to both residential and commercial applications, providing versatile solutions that enhance both illumination and design.

One of the standout features of the Wall Cloud wall bracket is its exceptional adaptability. Available in multiple sizes and styles, these brackets can easily be integrated into different architectural designs. Whether used in outdoor settings, hallways, or commercial spaces, Wall Cloud offers various mounting options that allow for easy installation. The versatility of these brackets ensures that they can accommodate diverse lighting needs while complementing the surrounding decor.

Another defining characteristic is the superior build quality of the Wall Cloud brackets. Constructed from robust materials, these fixtures are designed to withstand the harshest environments. Resilient to weather conditions, corrosion, and impact, the Wall Cloud series ensures long-lasting performance with minimal maintenance. This reliability makes them an ideal choice for public spaces, outdoor locations, and high-traffic areas.

In terms of technology, Cooper Lighting has integrated energy-efficient LED technology into their Wall Cloud series. LED lighting not only provides bright, clear illumination but also boasts an impressive lifespan compared to traditional light sources. With lower energy consumption, these fixtures contribute to sustainability efforts, reducing energy costs and minimizing environmental impact.

Additionally, many Wall Cloud models feature advanced optics that optimize light distribution. This technology offers uniform lighting with reduced glare, enhancing visibility and safety in various applications. The innovative design also includes adjustable settings, allowing users to customize light output according to specific needs.

The Wall Cloud wall bracket series from Cooper Lighting exemplifies a commitment to quality and innovation. With its remarkable adaptability, durable construction, energy-efficient technology, and advanced lighting optics, it stands out as a premier choice for both new installations and retrofitting projects. Whether illuminating a serene garden pathway or enhancing the ambiance of a bustling commercial space, Wall Cloud wall brackets effectively blend style and functionality, fulfilling a wide range of lighting requirements.
