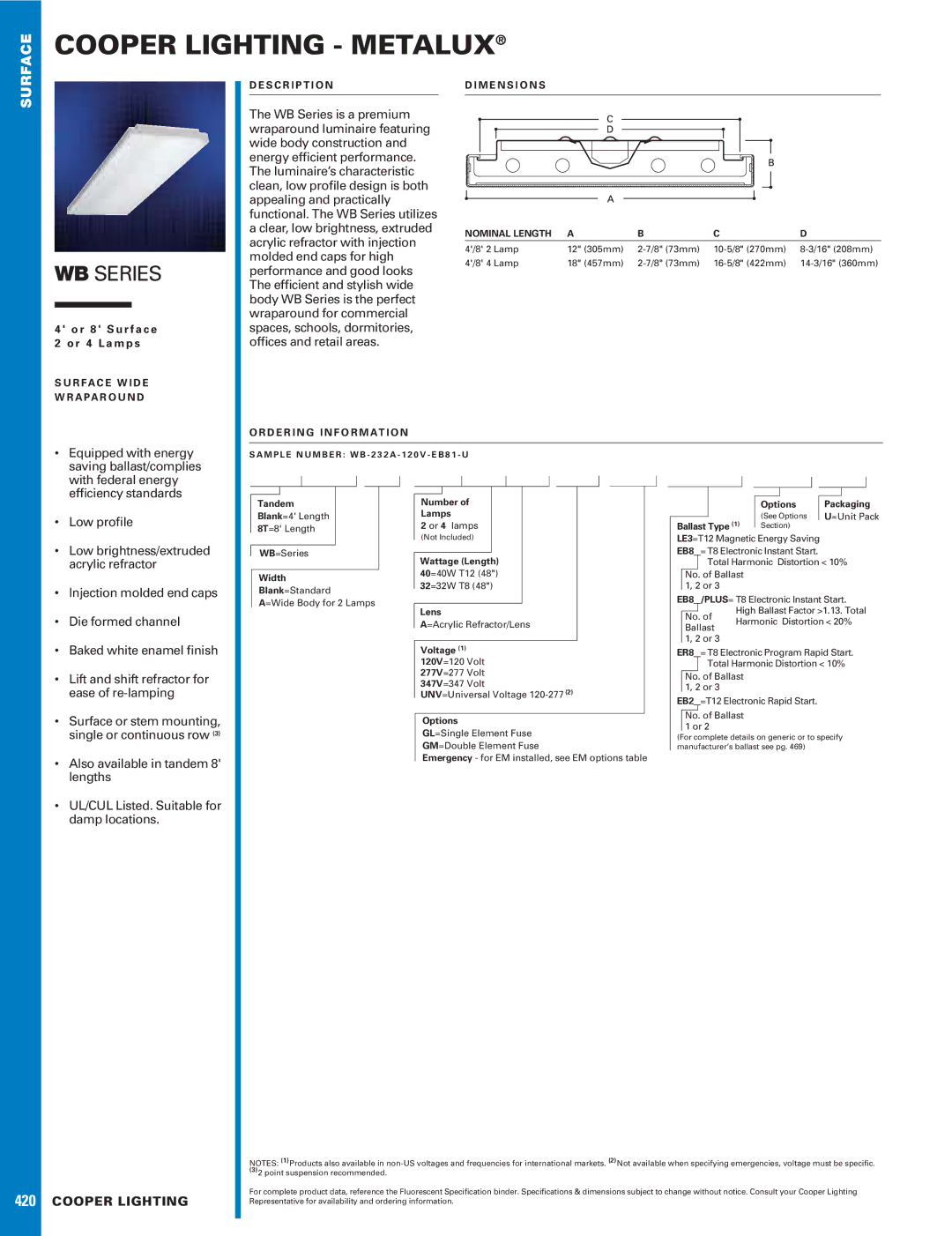

Cooper Lighting WB SERIES dimensions Cooper Lighting - Metalux, Wb Series, Surface

SURFACE

COOPER LIGHTING - METALUX®

WB SERIES

4 ' o r 8 ' S u r f a c e 2 o r 4 L a m p s

S U R FA C E W I D E W R A PA R O U N D

D E S C R I P T I O N

The WB Series is a premium wraparound luminaire featuring wide body construction and energy efficient performance. The luminaire’s characteristic clean, low profile design is both appealing and practically functional. The WB Series utilizes a clear, low brightness, extruded acrylic refractor with injection molded end caps for high performance and good looks The efficient and stylish wide body WB Series is the perfect wraparound for commercial spaces, schools, dormitories, offices and retail areas.

D I M E N S I O N S

NOMINAL LENGTH	A	B	C	D
4'/8' 2 Lamp	12" (305mm)	2-7/8" (73mm)	10-5/8" (270mm)	8-3/16" (208mm)
4'/8' 4 Lamp	18" (457mm)	2-7/8" (73mm)	16-5/8" (422mm)	14-3/16" (360mm)

• Equipped with energy

saving ballast/complies

with federal energy

efficiency standards

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : W B - 2 3 2 A - 1 2 0 V - E B 8 1 - U

•	Low profile
•	Low brightness/extruded
	acrylic refractor
• Injection molded end caps
•	Die formed channel
• Baked white enamel finish
• Lift and shift refractor for
	ease of re-lamping
• Surface or stem mounting,
	single or continuous row (3)
• Also available in tandem 8'
	lengths
• UL/CUL Listed. Suitable for
	damp locations.

Tandem

Blank=4' Length

8T=8' Length

WB=Series

Width

Blank=Standard

A=Wide Body for 2 Lamps

Number of

Lamps

2 or 4 lamps

(Not Included)

Wattage (Length)

40=40W T12 (48")

32=32W T8 (48")

Lens

A=Acrylic Refractor/Lens

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277 (2)

Options

GL=Single Element Fuse

GM=Double Element Fuse

Emergency - for EM installed, see EM options table

	Options	Packaging
	(See Options	U=Unit Pack
Ballast Type (1)
	Section)

LE3=T12 Magnetic Energy Saving

EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start.

	High Ballast Factor >1.13. Total
No. of	Harmonic Distortion < 20%
Ballast
1, 2 or 3

ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

420

	NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.
	(3)2 point suspension recommended.
COOPER LIGHTING	For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
	Representative for availability and ordering information.
