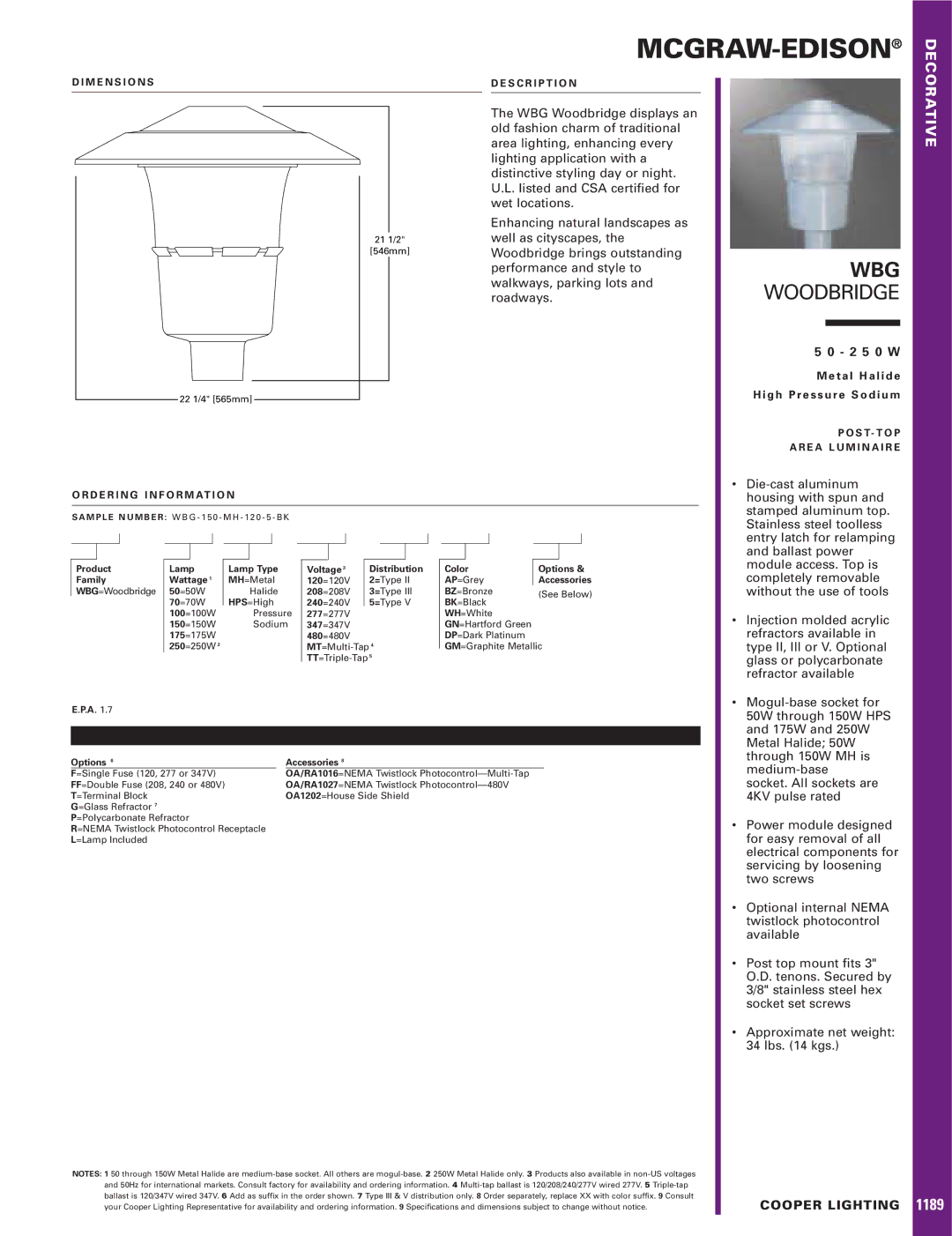

MCGRAW-EDISON®

D I M E N S I O N S

21 1/2"

[546mm]

22 1/4" [565mm]

D E S C R I P T I O N

The WBG Woodbridge displays an old fashion charm of traditional area lighting, enhancing every lighting application with a distinctive styling day or night. U.L. listed and CSA certified for wet locations.

Enhancing natural landscapes as well as cityscapes, the Woodbridge brings outstanding performance and style to walkways, parking lots and roadways.

WBG

WOODBRIDGE

5 0 - 2 5 0 W

M e t a l H a l i d e

H i g h P r e s s u r e S o d i u m

P O S T- T O P A R E A L U M I N A I R E

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : W B G - 1 5 0 - M H - 1 2 0 - 5 - B K

Die-cast aluminum

housing with spun and

stamped aluminum top.

Stainless steel toolless

entry latch for relamping

and ballast power

module access. Top is

Product

Family

WBG=Woodbridge

E.P.A. 1.7

Lamp Wattage 1 50=50W 70=70W 100=100W 150=150W 175=175W 250=250W 2

Lamp Type

MH=Metal

Halide

HPS=High

Pressure

Sodium



























































Voltage 3

Distribution



Color

Options &



120=120V

2=Type II



AP=Grey

Accessories



208=208V

3=Type III



BZ=Bronze

(See Below)



240=240V

5=Type V



BK=Black









277=277V









WH=White









347=347V









GN=Hartford Green









480=480V









DP=Dark Platinum









MT=Multi-Tap 4



GM=Graphite Metallic





TT=Triple-Tap 5















completely removable

without the use of tools

• Injection molded acrylic

refractors available in

type II, III or V. Optional

glass or polycarbonate

refractor available

Mogul-base socket for

50W through 150W HPS

and 175W and 250W

Metal Halide; 50W

through 150W MH is

DECORATIVE

Options 6

Accessories 8

F=Single Fuse (120, 277 or 347V)

OA/RA1016=NEMA Twistlock Photocontrol—Multi-Tap

FF=Double Fuse (208, 240 or 480V)

OA/RA1027=NEMA Twistlock Photocontrol—480V

T=Terminal Block

OA1202=House Side Shield

G=Glass Refractor 7



P=Polycarbonate Refractor



R=NEMA Twistlock Photocontrol Receptacle



L=Lamp Included





medium-base



socket. All sockets are



4KV pulse rated

Power module designed



for easy removal of all



electrical components for



servicing by loosening



two screws

Optional internal NEMA



twistlock photocontrol



available

• Post top mount fits 3"



O.D. tenons. Secured by



3/8" stainless steel hex



socket set screws

Approximate net weight:



34 lbs. (14 kgs.)

NOTES: 1 50 through 150W Metal Halide are medium-base socket. All others are mogul-base. 2 250W Metal Halide only. 3 Products also available in non-US voltages



and 50Hz for international markets. Consult factory for availability and ordering information. 4 Multi-tap ballast is 120/208/240/277V wired 277V. 5 Triple-tap



ballast is 120/347V wired 347V. 6 Add as suffix in the order shown. 7 Type III & V distribution only. 8 Order separately, replace XX with color suffix. 9 Consult

COOPER LIGHTING

your Cooper Lighting Representative for availability and ordering information. 9 Specifications and dimensions subject to change without notice.

1189

Page 1
