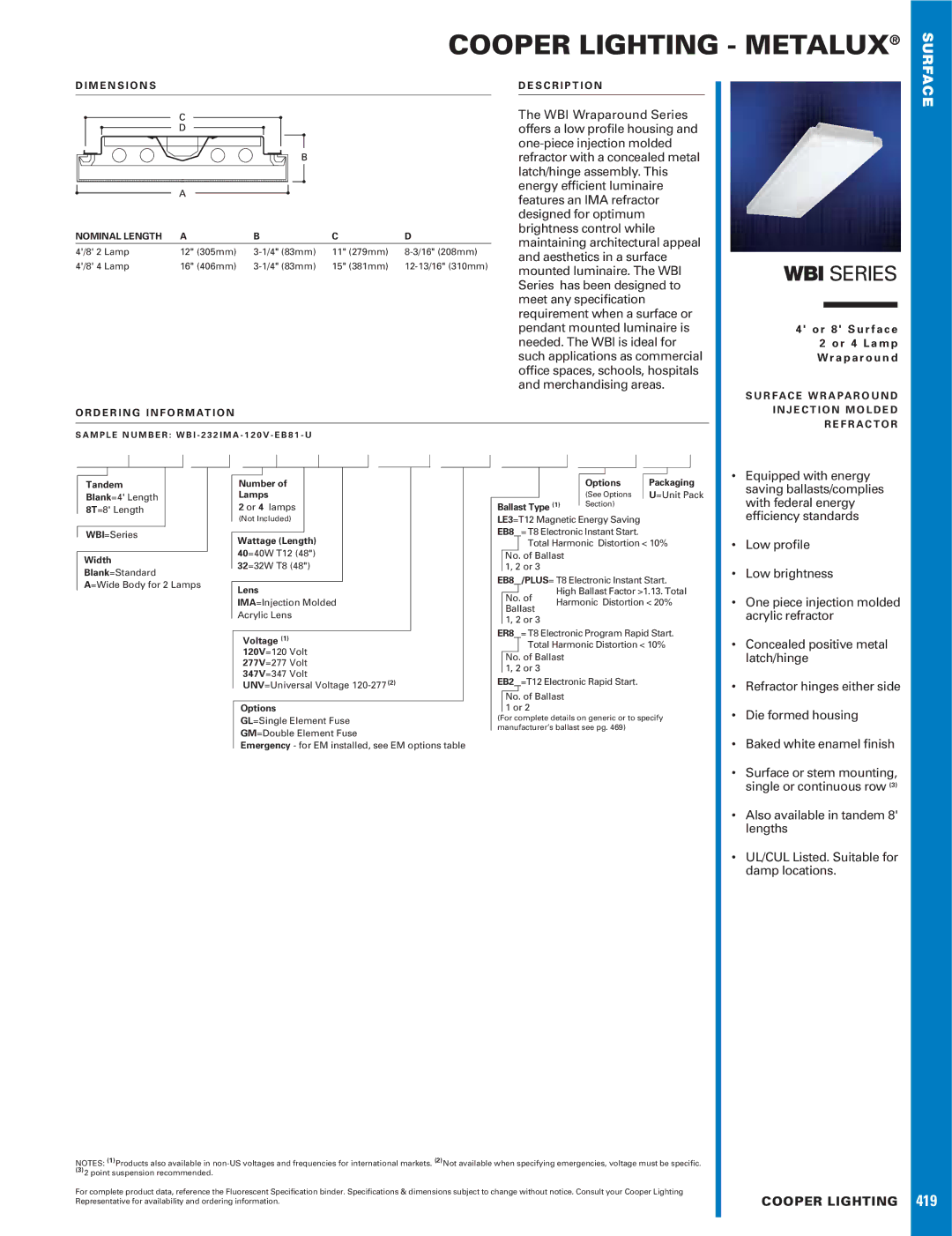

COOPER LIGHTING - METALUX®

SURFACE

D I M E N S I O N S

NOMINAL LENGTH	A	B	C	D
4'/8' 2 Lamp	12" (305mm)	3-1/4" (83mm)	11" (279mm)	8-3/16" (208mm)
4'/8' 4 Lamp	16" (406mm)	3-1/4" (83mm)	15" (381mm)	12-13/16" (310mm)

O R D E R I N G I N F O R M AT I O N

D E S C R I P T I O N

The WBI Wraparound Series offers a low profile housing and one-piece injection molded refractor with a concealed metal latch/hinge assembly. This energy efficient luminaire features an IMA refractor designed for optimum brightness control while maintaining architectural appeal and aesthetics in a surface mounted luminaire. The WBI Series has been designed to meet any specification requirement when a surface or pendant mounted luminaire is needed. The WBI is ideal for such applications as commercial office spaces, schools, hospitals and merchandising areas.

WBI SERIES

4 ' o r 8 ' S u r f a c e 2 o r 4 L a m p W r a p a r o u n d

S U R FA C E W R A PA R O U N D I N J E C T I O N M O L D E D R E F R A C T O R

S A M P L E N U M B E R : W B I - 2 3 2 I M A - 1 2 0 V - E B 8 1 - U

Tandem

Blank=4' Length

8T=8' Length

WBI=Series

Width

Blank=Standard

A=Wide Body for 2 Lamps

Number of

Lamps

2 or 4 lamps

(Not Included)

Wattage (Length) 40=40W T12 (48") 32=32W T8 (48")

Lens

IMA=Injection Molded

Acrylic Lens

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277 (2)

Options

GL=Single Element Fuse

GM=Double Element Fuse

Emergency - for EM installed, see EM options table

	Options	Packaging
	(See Options	U=Unit Pack
Ballast Type (1)	Section)

LE3=T12 Magnetic Energy Saving

EB8 = T8 Electronic Instant Start.

Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB8 /PLUS= T8 Electronic Instant Start.

	High Ballast Factor >1.13. Total
No. of	Harmonic Distortion < 20%
Ballast
1, 2 or 3

ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

•Equipped with energy saving ballasts/complies with federal energy efficiency standards

•Low profile

•Low brightness

•One piece injection molded acrylic refractor

•Concealed positive metal latch/hinge

•Refractor hinges either side

•Die formed housing

•Baked white enamel finish

•Surface or stem mounting, single or continuous row (3)

•Also available in tandem 8' lengths

•UL/CUL Listed. Suitable for damp locations.

NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.
(3)2 point suspension recommended.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting	COOPER LIGHTING
Representative for availability and ordering information.
