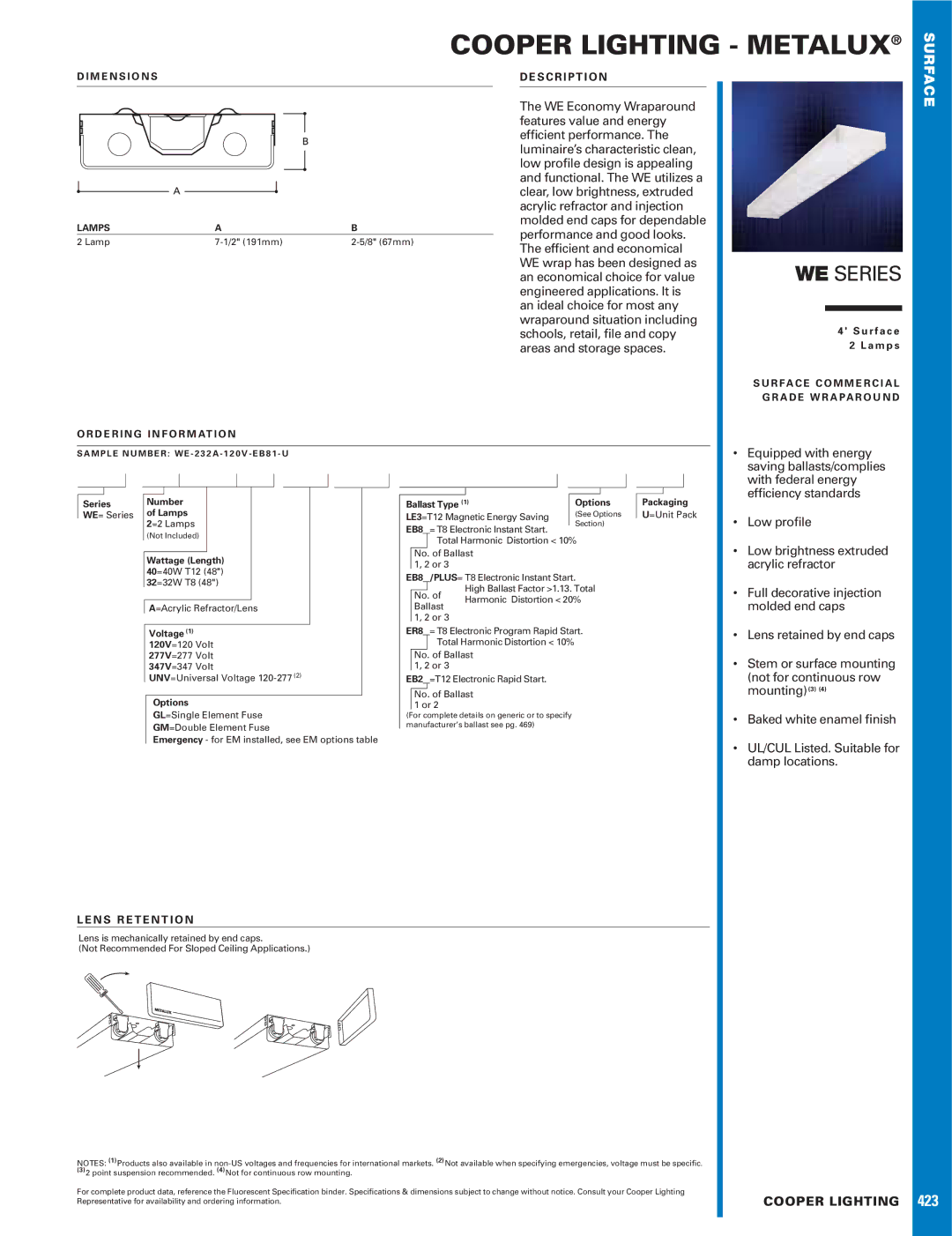

COOPER LIGHTING - METALUX®

D I M E N S I O N SD E S C R I P T I O N

SURFACE

LAMPS

A

B

2 Lamp

7-1/2" (191mm)

2-5/8" (67mm)

The WE Economy Wraparound features value and energy efficient performance. The luminaire’s characteristic clean, low profile design is appealing and functional. The WE utilizes a clear, low brightness, extruded acrylic refractor and injection molded end caps for dependable performance and good looks. The efficient and economical WE wrap has been designed as an economical choice for value engineered applications. It is an ideal choice for most any wraparound situation including schools, retail, file and copy areas and storage spaces.

WE SERIES

4 ' S u r f a c e

2 L a m p s

S U R F A C E C O M M E R C I A L G R A D E W R A PA R O U N D

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : W E - 2 3 2 A - 1 2 0 V - E B 8 1 - U

• Equipped with energy

saving ballasts/complies

with federal energy

efficiency standards

Series

WE= Series

Number

of Lamps

2=2 Lamps

(Not Included)

Wattage (Length) 40=40W T12 (48") 32=32W T8 (48")

A=Acrylic Refractor/Lens

Voltage (1)

120V=120 Volt

277V=277 Volt

347V=347 Volt

UNV=Universal Voltage 120-277 (2)

Options

GL=Single Element Fuse

GM=Double Element Fuse

Emergency - for EM installed, see EM options table

Ballast Type (1)

Options

LE3=T12 Magnetic Energy Saving

(See Options

EB8 = T8 Electronic Instant Start.

Section)









Total Harmonic Distortion < 10%



No.

of Ballast





1, 2 or 3





EB8 /PLUS= T8 Electronic Instant Start.









High Ballast Factor >1.13. Total



No. of

Harmonic Distortion < 20%



Ballast









1, 2 or 3





ER8 = T8 Electronic Program Rapid Start. Total Harmonic Distortion < 10%

No. of Ballast 1, 2 or 3

EB2 =T12 Electronic Rapid Start.

No. of Ballast 1 or 2

(For complete details on generic or to specify manufacturer’s ballast see pg. 469)

Packaging

U=Unit Pack

Low profile

Low brightness extruded



acrylic refractor

Full decorative injection



molded end caps

• Lens retained by end caps

• Stem or surface mounting



(not for continuous row



mounting)(3) (4)

• Baked white enamel finish

• UL/CUL Listed. Suitable for



damp locations.

L E N S R E T E N T I O N

Lens is mechanically retained by end caps.

(Not Recommended For Sloped Ceiling Applications.)

NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.



(3)2 point suspension recommended. (4)Not for continuous row mounting.



For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting

COOPER LIGHTING

Representative for availability and ordering information.

423
