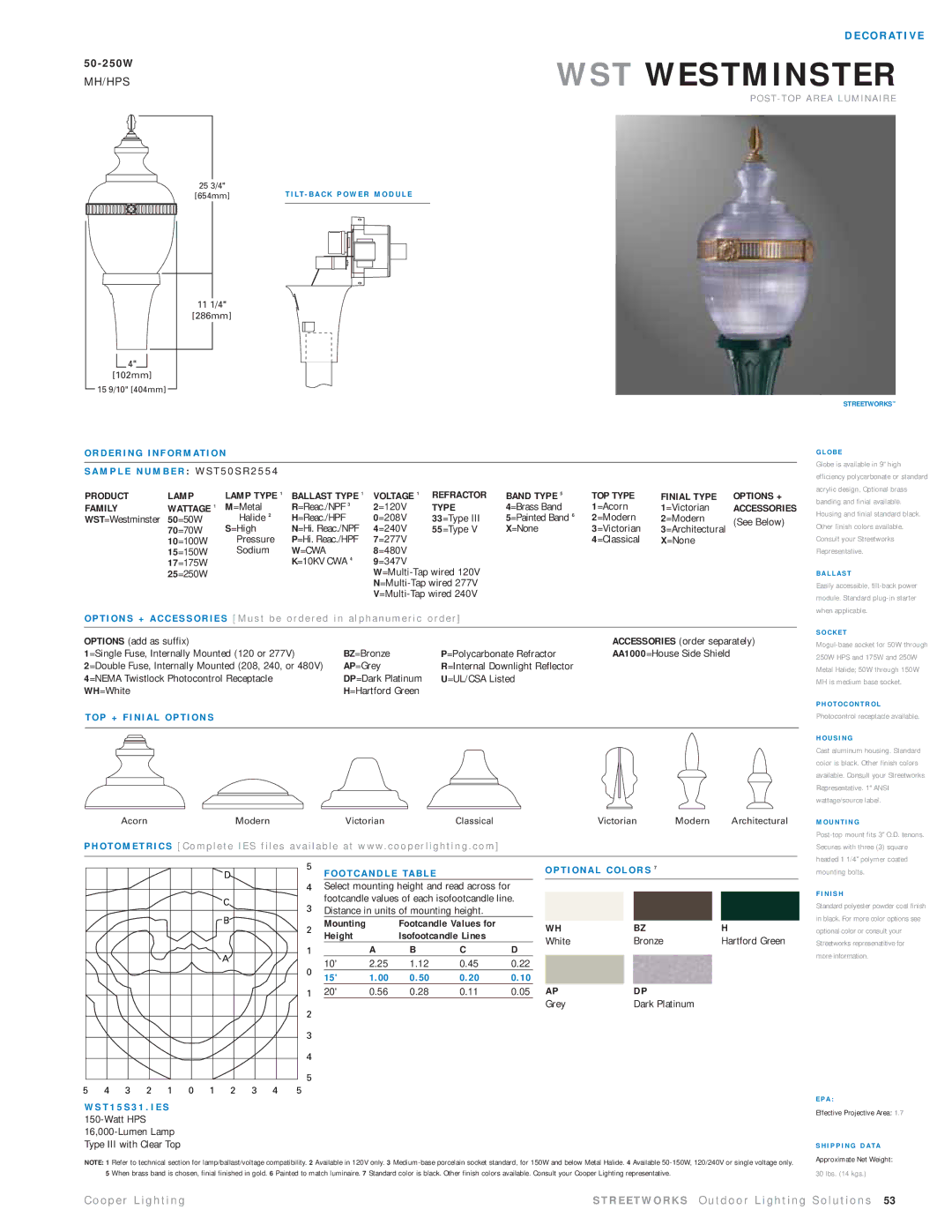

Cooper Lighting WST50SR2554 manual Wst Westminster, D E C O R At I V E, 50-250W, Mh/Hps

	D E C O R AT I V E
50-250W	WST WESTMINSTER
MH/HPS
	P O S T- T O P A R E A L U M I N A I R E

25 3/4"

[654mm]

11 1/4"

[286mm]

4"

[102mm]

15 9/10" [404mm]

T I LT - B A C K P O W E R M O D U L E

STREETWORKS™

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : W S T 5 0 S R 2 5 5 4

PRODUCT	LAMP	LAMP TYPE 1	BALLAST TYPE 1		VOLTAGE 1	REFRACTOR	BAND TYPE 5	TOP TYPE	FINIAL TYPE	OPTIONS +
FAMILY	WATTAGE 1	M=Metal	R=Reac./NPF 3		2=120V	TYPE	4=Brass Band	1=Acorn	1=Victorian	ACCESSORIES
WST=Westminster	50=50W	Halide 2	H=Reac./HPF		0=208V	33=Type III	5=Painted Band 6	2=Modern	2=Modern	(See Below)
	70=70W	S=High	N=Hi. Reac./NPF		4=240V	55=Type V	X=None	3=Victorian	3=Architectural
	10=100W	Pressure	P=Hi. Reac./HPF		7=277V			4=Classical	X=None
	15=150W	Sodium	W=CWA		8=480V
	17=175W		K=10KV CWA 4		9=347V
	25=250W				W=Multi-Tap wired 120V
					N=Multi-Tap wired 277V
					V=Multi-Tap wired 240V
O P T I O N S + A C C E S S O R I E S [ M u s t b e o r d e r e d i n a l p h a n u m e r i c o r d e r ]
OPTIONS (add as suffix)								ACCESSORIES (order separately)
1=Single Fuse, Internally Mounted (120 or 277V)				BZ=Bronze		P=Polycarbonate Refractor		AA1000=House Side Shield
2=Double Fuse, Internally Mounted (208, 240, or 480V)				AP=Grey		R=Internal Downlight Reflector
4=NEMA Twistlock Photocontrol Receptacle				DP=Dark Platinum		U=UL/CSA Listed
WH=White				H=Hartford Green

T O P + F I N I A L O P T I O N S

AcornModernVictorianClassicalVictorian Modern Architectural

P H O T O M E T R I C S [ C o m p l e t e I E S f i l e s a v a i l a b l e a t w w w. c o o p e r l i g h t i n g . c o m ]

G L O B E

Globe is available in 9" high efficiency polycarbonate or standard acrylic design. Optional brass banding and finial available. Housing and finial standard black. Other finish colors available. Consult your Streetworks Representative.

B A L L A S T

Easily accessible, tilt-back power module. Standard plug-in starter when applicable.

S O C K E T

Mogul-base socket for 50W through 250W HPS and 175W and 250W Metal Halide; 50W through 150W MH is medium base socket.

P H O T O C O N T R O L

Photocontrol receptacle available.

H O U S I N G

Cast aluminum housing. Standard color is black. Other finish colors available. Consult your Streetworks Representative. 1" ANSI wattage/source label.

M O U N T I N G

Post-top mount fits 3" O.D. tenons. Secures with three (3) square headed 1 1/4" polymer coated

D

C

B

A

5 4 3 2 1 0 1 2 3 4 5

5

F O O T C A N D L E TA B L E

4Select mounting height and read across for

footcandle values of each isofootcandle line.

3Distance in units of mounting height.

2	Mounting		Footcandle Values for
	Height		Isofootcandle Lines
1		A	B	C	D
0	10'	2.25	1.12	0.45	0.22
	15'	1.00	0.50	0.20	0.10
1	20'	0.56	0.28	0.11	0.05
2

3

4

5

O P T I O N A L C O L O R S 7

WH	BZ	H
White	Bronze	Hartford Green
AP	DP
Grey	Dark Platinum

mounting bolts.

F I N I S H

Standard polyester powder coat finish in black. For more color options see optional color or consult your Streetworks represenatitive for more information.

E PA :

W S T 1 5 S 3 1 . I E S 150-Watt HPS

16,000-Lumen Lamp Type III with Clear Top

NOTE: 1 Refer to technical section for lamp/ballast/voltage compatibility. 2 Available in 120V only. 3 Medium-base porcelain socket standard, for 150W and below Metal Halide. 4 Available 50-150W, 120/240V or single voltage only. 5 When brass band is chosen, finial finished in gold. 6 Painted to match luminaire. 7 Standard color is black. Other finish colors available. Consult your Cooper Lighting representative.

Effective Projective Area: 1.7

S H I P P I N G D ATA

Approximate Net Weight:

30 lbs. (14 kgs.)

C o o p e r L i g h t i n g S T R E E T W O R K S O u t d o o r L i g h t i n g S o l u t i o n s 53
