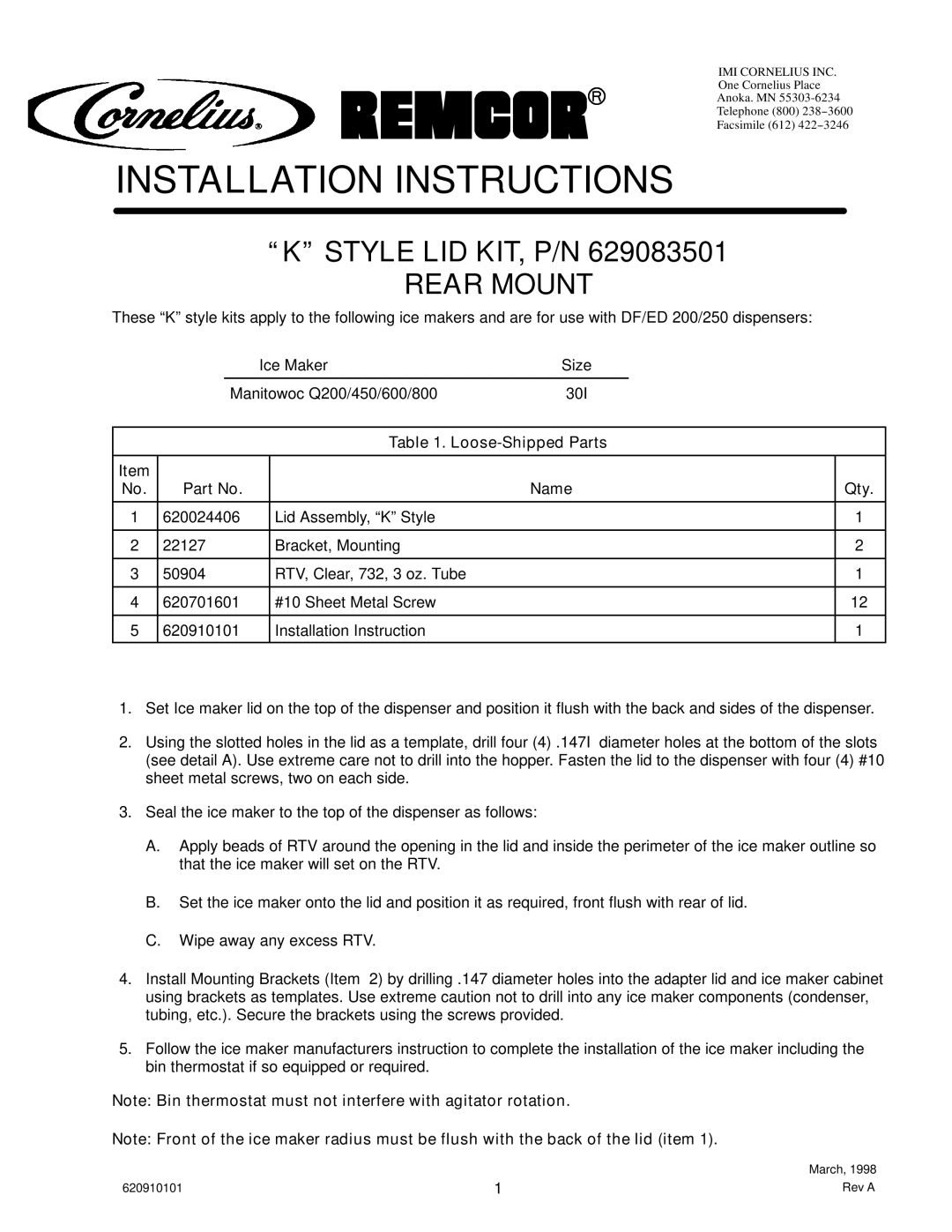

IMI CORNELIUS INC.

One Cornelius Place

Anoka. MN 55303-6234

Telephone (800) 238--3600

Facsimile (612) 422--3246

INSTALLATION INSTRUCTIONS

“K” STYLE LID KIT, P/N 629083501

REAR MOUNT

These “K”style kits apply to the following ice makers and are for use with DF/ED 200/250 dispensers:







Ice Maker

Size









Manitowoc Q200/450/600/800

30I



























Table 1. Loose-Shipped Parts





















Item















No.

Part No.





Name



Qty.

1

620024406



Lid Assembly, “K”Style





1

















2

22127





Bracket, Mounting





2

















3

50904





RTV, Clear, 732, 3 oz. Tube





1















4

620701601



#10 Sheet Metal Screw





12















5

620910101



Installation Instruction





1

















1.Set Ice maker lid on the top of the dispenser and position it flush with the back and sides of the dispenser.

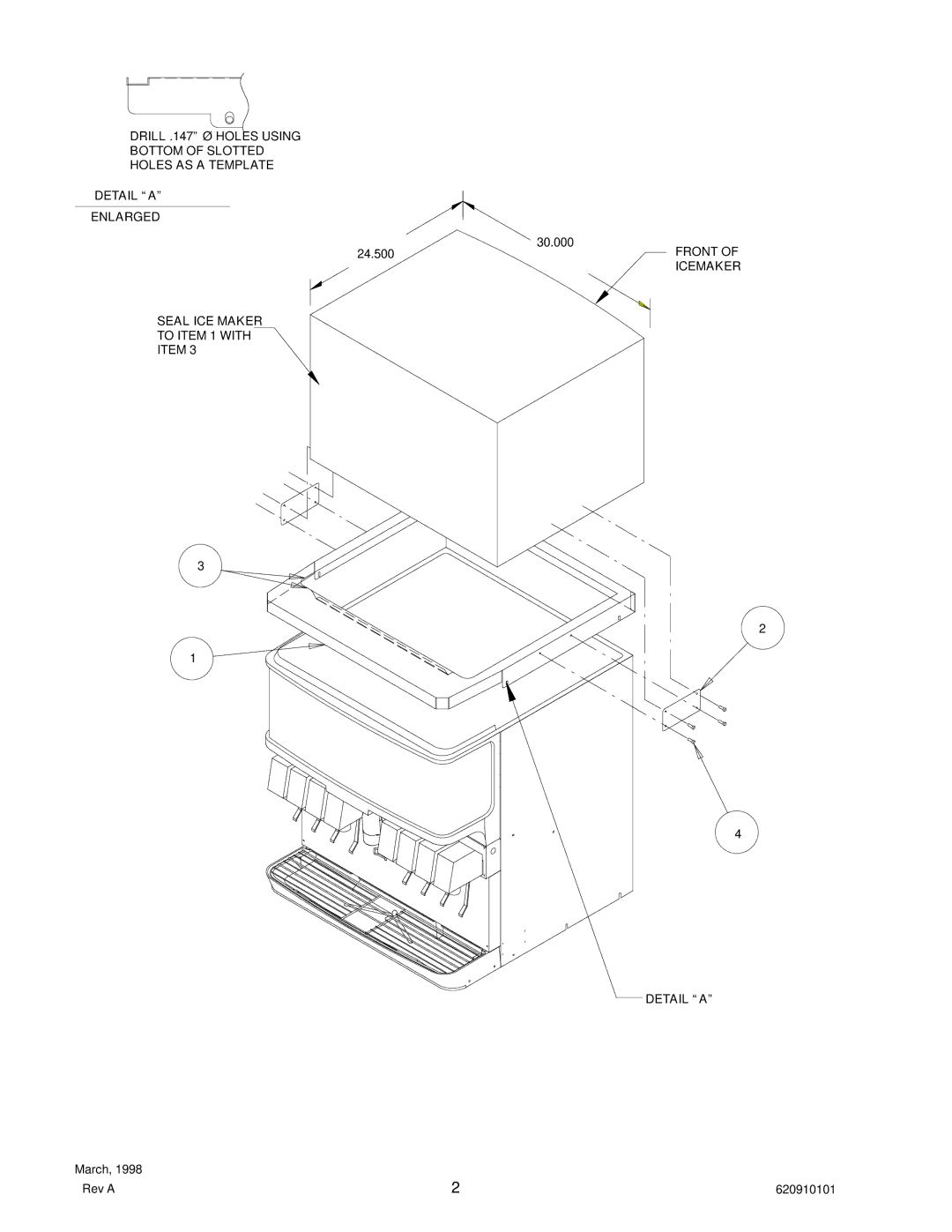

2.Using the slotted holes in the lid as a template, drill four (4) .147Idiameter holes at the bottom of the slots (see detail A). Use extreme care not to drill into the hopper. Fasten the lid to the dispenser with four (4) #10 sheet metal screws, two on each side.

3.Seal the ice maker to the top of the dispenser as follows:

A.Apply beads of RTV around the opening in the lid and inside the perimeter of the ice maker outline so that the ice maker will set on the RTV.

B.Set the ice maker onto the lid and position it as required, front flush with rear of lid.

C.Wipe away any excess RTV.

4.Install Mounting Brackets (Item 2) by drilling .147 diameter holes into the adapter lid and ice maker cabinet using brackets as templates. Use extreme caution not to drill into any ice maker components (condenser, tubing, etc.). Secure the brackets using the screws provided.

5.Follow the ice maker manufacturers instruction to complete the installation of the ice maker including the bin thermostat if so equipped or required.

Note: Bin thermostat must not interfere with agitator rotation.

Note: Front of the ice maker radius must be flush with the back of the lid (item 1).

620910101

1

March, 1998 Rev A

Page 1
