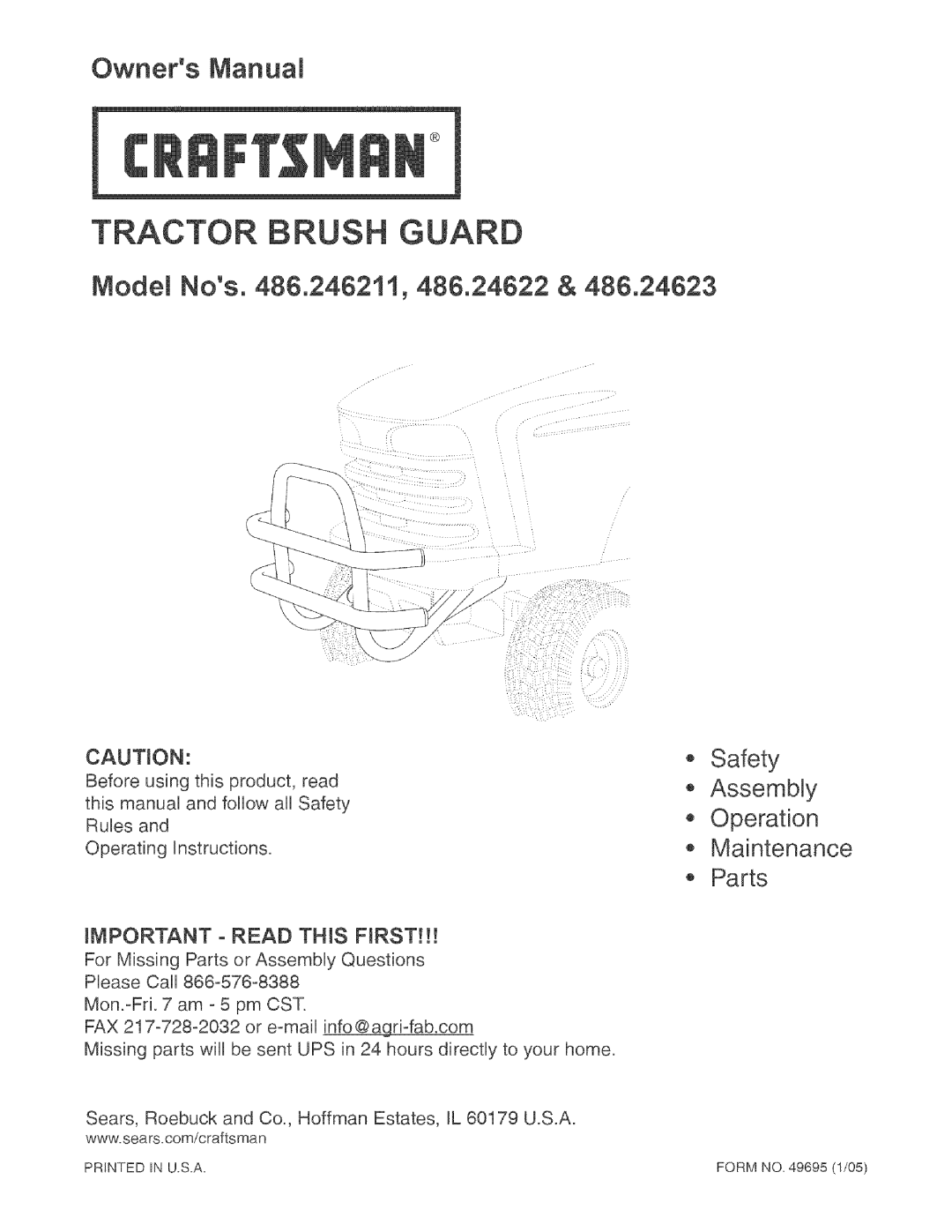

Craftsman 486.24623, 486.246211, 486.24622 owner manual Full, Carton Contents

Any power equipment can cause injury ifoperated improperly or if the user does not understand how to operate the equipment. Exercise caution at al! times, when using power equipment.

Refer to your tractor owners manual for "Rules For Safe Operation",

Look for this symbol to point out important safety

precautions. It means--Attention!! Become alert!! Your safety is involved.

X-

E

Y

\	H
\

FULL	SmZE HARDWARE CHART
Ref,	Part No,	Qty.	Description
A	48894	2	Self Threading Screw, 3/8o16x 1-1/2'

B43062 2 Hex Bolt, 3/8-16 x 1-1/2"

c43001 2 Hex Bolt, 3/8-16 x 1"

D 44742 4 Plug

E	48866	2	Pivot Spacer
F	1643-60	2	Plastic Grip
G	43070	4	Washer, 3/8"

H43003 4 Lock Washer, 3/8"

CARTON		CONTENTS
1.	Left Mounting		Bracket	#25037
2.	Right Mounting		Bracket	#25038
3.	Locking	Lever		#64862
4.	Bumper			#64614B (71-246211 )
				#64614S	(71-24622)
				#64614C	(71°24623)

TOOLS REQUIRED

(1)9/16" Wrench

(1)1/2" Wrench (for heat shields)

CAUTION! Muffler is hot! Allow engine to cool down before proceeding with bumper installation.

STEP 1: (SEE FIGURE 1)

. Place cardboard on work surface to protect painted parts from scratches.

. Remove hood from tractor using instructions in your tractor owner's manual. Place hood on cardboard or

on a mat to protect paint.

. if your tractor has a heat shield shaped like the one in figure 1, temporarily remove it.

iMPORTANT: Be sure to reattach the heat shield after bumper is installed.

MUFFLER HEAT SHIELD

J //

FIGURE 1

STEP 2: (SEE HGURE 2)

,Place plug (D) on a work bench or solid table and push end of bumper down onto plug. Repeat for a!l four plugs.

BUMPER

PUSH DOWN

W{TH EVEN

PRESSURE

WORK BENCH

OR SOUD TABLE__PLUG

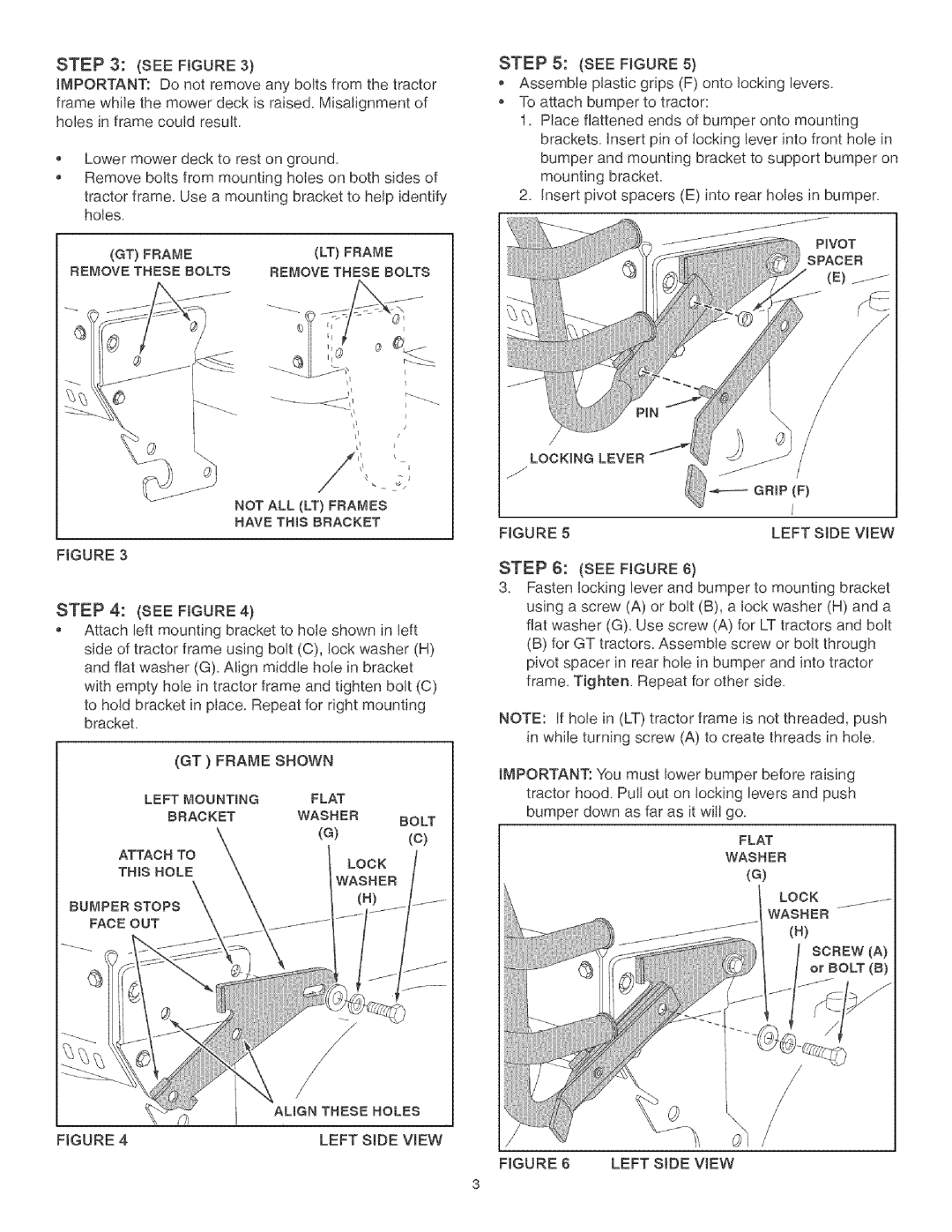

FIGURE 2
