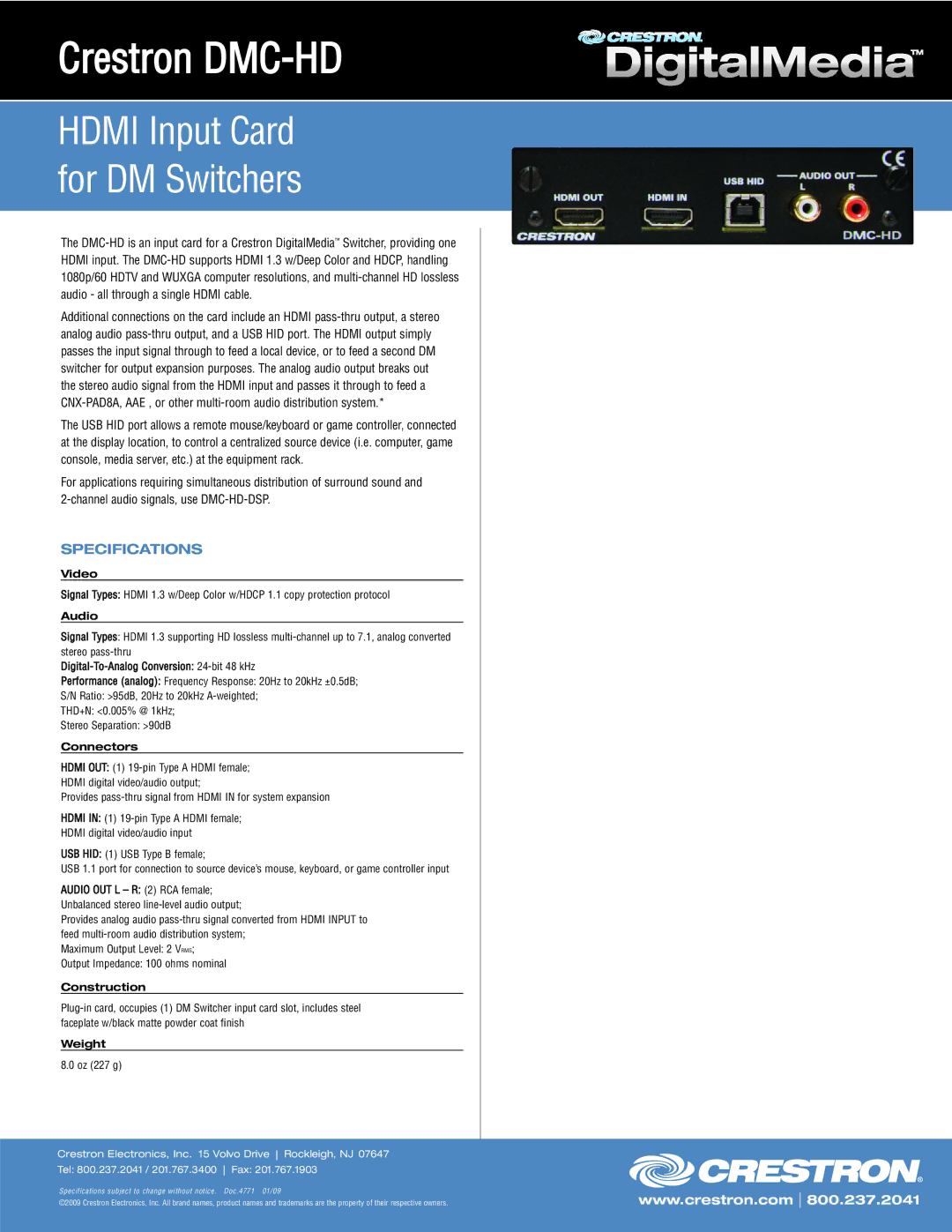

Crestron DMC-HD

HDMI Input Card for DM Switchers

The DMC-HD is an input card for a Crestron DigitalMedia™ Switcher, providing one HDMI input. The DMC-HD supports HDMI 1.3 w/Deep Color and HDCP, handling 1080p/60 HDTV and WUXGA computer resolutions, and multi-channel HD lossless audio - all through a single HDMI cable.

Additional connections on the card include an HDMI pass-thru output, a stereo analog audio pass-thru output, and a USB HID port. The HDMI output simply passes the input signal through to feed a local device, or to feed a second DM switcher for output expansion purposes. The analog audio output breaks out the stereo audio signal from the HDMI input and passes it through to feed a CNX-PAD8A, AAE , or other multi-room audio distribution system.*

The USB HID port allows a remote mouse/keyboard or game controller, connected at the display location, to control a centralized source device (i.e. computer, game console, media server, etc.) at the equipment rack.

For applications requiring simultaneous distribution of surround sound and 2-channel audio signals, use DMC-HD-DSP.

SPECIFICATIONS

Video

Signal Types: HDMI 1.3 w/Deep Color w/HDCP 1.1 copy protection protocol

Audio

Signal Types: HDMI 1.3 supporting HD lossless multi-channel up to 7.1, analog converted stereo pass-thru

Digital-To-Analog Conversion: 24-bit 48 kHz

Performance (analog): Frequency Response: 20Hz to 20kHz ±0.5dB;

S/N Ratio: >95dB, 20Hz to 20kHz A-weighted;

THD+N: <0.005% @ 1kHz;

Stereo Separation: >90dB

Connectors

HDMI OUT: (1) 19-pin Type A HDMI female;

HDMI digital video/audio output;

Provides pass-thru signal from HDMI IN for system expansion

HDMI IN: (1) 19-pin Type A HDMI female;

HDMI digital video/audio input

USB HID: (1) USB Type B female;

USB 1.1 port for connection to source device’s mouse, keyboard, or game controller input

AUDIO OUT L – R: (2) RCA female; Unbalanced stereo line-level audio output;

Provides analog audio pass-thru signal converted from HDMI INPUT to feed multi-room audio distribution system;

Maximum Output Level: 2 VRMS;

Output Impedance: 100 ohms nominal

Construction

Plug-in card, occupies (1) DM Switcher input card slot, includes steel faceplate w/black matte powder coat finish

Weight

8.0 oz (227 g)
