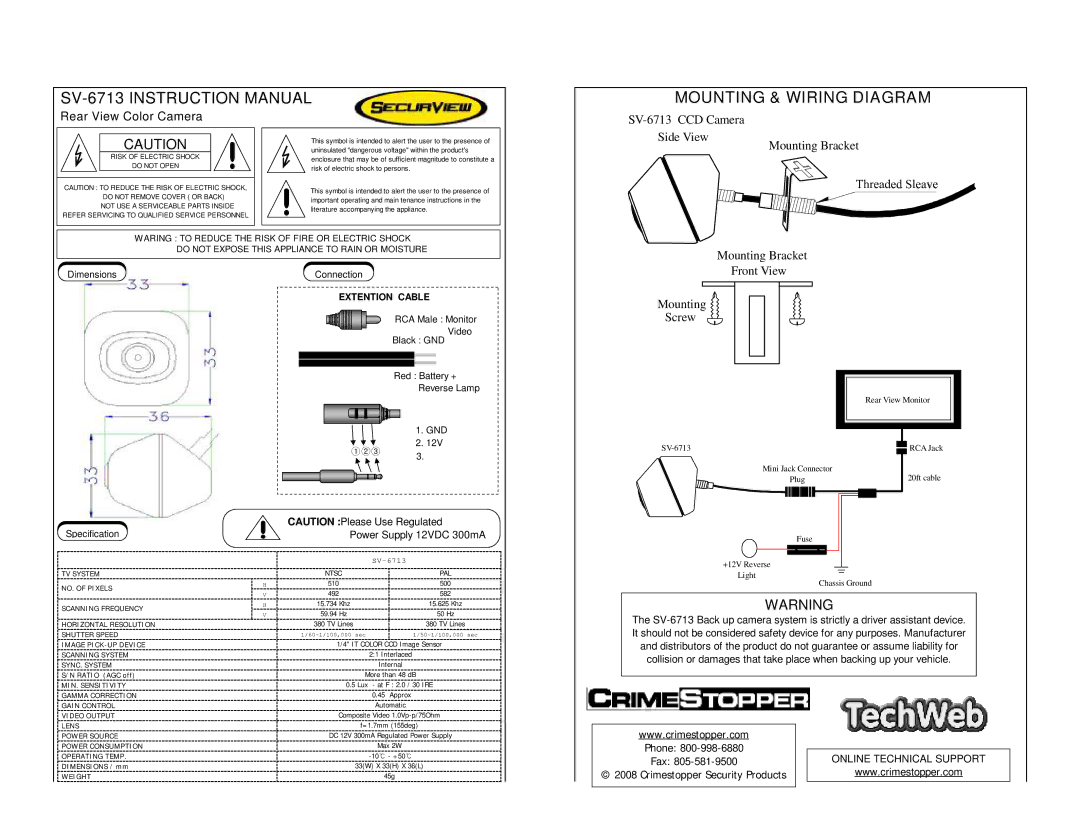

SV-6713 INSTRUCTION MANUAL

Rear View Color Camera

MOUNTING & WIRING DIAGRAM

SV-6713 CCD Camera

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK)

NOT USE A SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and main tenance instructions in the literature accompanying the appliance.

Side View Mounting Bracket

WARING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE

Mounting Bracket

Dimensions

Specification

TV SYSTEM

NO. OF PIXELS

SCANNING FREQUENCY

HORIZONTAL RESOLUTION

SHUTTER SPEED

IMAGE PICK-UP DEVICE

SCANNING SYSTEM

SYNC. SYSTEM

S/N RATIO (AGC off)

MIN. SENSITIVITY

GAMMA CORRECTION

GAIN CONTROL

VIDEO OUTPUT

LENS

POWER SOURCE

POWER CONSUMPTION

OPERATING TEMP.

DIMENSIONS / mm

WEIGHT

Connection

EXTENTION CABLE

RCA Male : Monitor

Video

Black : GND

Red : Battery +

Reverse Lamp

1. GND

2. 12V

①②③ 3.

CAUTION :Please Use Regulated Power Supply 12VDC 300mA

		SV-6713
	NTSC	PAL
H	510	500
V	492	582
H	15.734 Khz	15.625 Khz
V	59.94 Hz	50 Hz
	380 TV Lines	380 TV Lines
	1/60~1/100,000 sec	1/50~1/100,000 sec
	1/4" IT COLOR CCD Image Sensor
		2:1 Interlaced
		Internal
	More than 48 dB
	0.5 Lux	- at F : 2.0 / 30 IRE
		0.45 Approx

Automatic

Composite Video 1.0Vp-p/75Ohm

f=1.7mm (155deg)

DC 12V 300mA Regulated Power Supply

Max 2W -10℃- +50℃

33(W) X 33(H) X 36(L)

45g

Front View
Mounting
Screw
	Rear View Monitor
SV-6713	RCA Jack
Mini Jack Connector
Plug	20ft cable
Fuse
+12V Reverse
Light	Chassis Ground
WARNING
The SV-6713 Back up camera system is strictly a driver assistant device.
It should not be considered safety device for any purposes. Manufacturer
and distributors of the product do not guarantee or assume liability for
collision or damages that take place when backing up your vehicle.
www.crimestopper.com
Phone: 800-998-6880	ONLINE TECHNICAL SUPPORT
Fax: 805-581-9500
© 2008 Crimestopper Security Products	www.crimestopper.com
