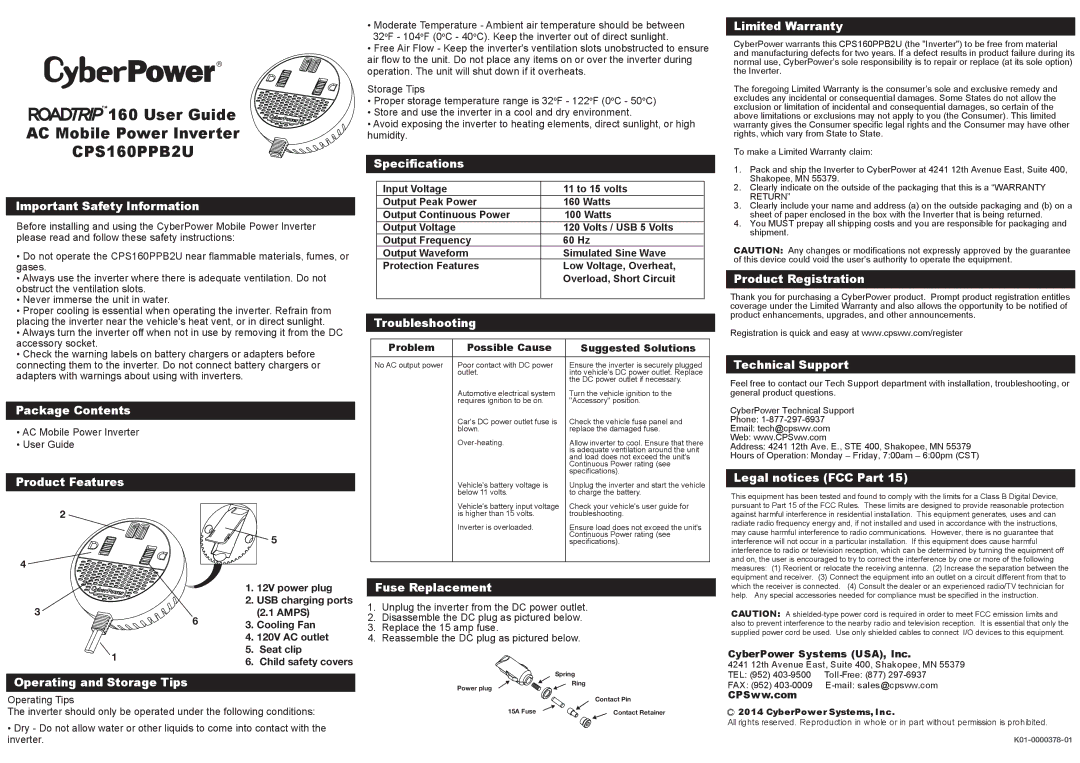

TM160 User Guide
AC Mobile Power Inverter
CPS160PPB2U
Important Safety Information
Before installing and using the CyberPower Mobile Power Inverter please read and follow these safety instructions:
•Do not operate the CPS160PPB2U near flammable materials, fumes, or gases.
•Always use the inverter where there is adequate ventilation. Do not obstruct the ventilation slots.
•Never immerse the unit in water.
•Proper cooling is essential when operating the inverter. Refrain from placing the inverter near the vehicle's heat vent, or in direct sunlight.
•Always turn the inverter off when not in use by removing it from the DC accessory socket.
•Check the warning labels on battery chargers or adapters before connecting them to the inverter. Do not connect battery chargers or adapters with warnings about using with inverters.
Package Contents
•AC Mobile Power Inverter
•User Guide
Product Features
2
5
4
|
| 1. | 12V power plug |
3 |
| 2. | USB charging ports |
6 |
| (2.1 AMPS) | |
| 3. | Cooling Fan | |
|
| ||
|
| 4. | 120V AC outlet |
1 |
| 5. | Seat clip |
| 6. | Child safety covers | |
|
|
Operating and Storage Tips
Operating Tips
The inverter should only be operated under the following conditions:
•Dry - Do not allow water or other liquids to come into contact with the inverter.
•Moderate Temperature - Ambient air temperature should be between 32oF - 104oF (0oC - 40oC). Keep the inverter out of direct sunlight.
•Free Air Flow - Keep the inverter's ventilation slots unobstructed to ensure air flow to the unit. Do not place any items on or over the inverter during operation. The unit will shut down if it overheats.
Storage Tips
•Proper storage temperature range is 32oF - 122oF (0oC - 50oC)
•Store and use the inverter in a cool and dry environment.
•Avoid exposing the inverter to heating elements, direct sunlight, or high humidity.
Specifications
Input Voltage | 11 to 15 volts | |
Output Peak Power | 160 Watts |
|
Output Continuous Power | 100 Watts |
|
Output Voltage | 120 Volts / USB 5 Volts |
|
Output Frequency | 60 Hz |
|
Output Waveform | Simulated Sine Wave |
|
Protection Features | Low Voltage, Overheat, |
|
| Overload, Short Circuit | |
|
|
|
Troubleshooting
Problem | Possible Cause | Suggested Solutions |
|
|
|
No AC output power | Poor contact with DC power | Ensure the inverter is securely plugged |
| outlet. | into vehicle's DC power outlet. Replace |
|
| the DC power outlet if necessary. |
| Automotive electrical system | Turn the vehicle ignition to the |
| requires ignition to be on. | "Accessory" position. |
| Car's DC power outlet fuse is | Check the vehicle fuse panel and |
| blown. | replace the damaged fuse. |
| Allow inverter to cool. Ensure that there | |
|
| is adequate ventilation around the unit |
|
| and load does not exceed the unit's |
|
| Continuous Power rating (see |
|
| specifications). |
| Vehicle's battery voltage is | Unplug the inverter and start the vehicle |
| below 11 volts. | to charge the battery. |
| Vehicle's battery input voltage | Check your vehicle's user guide for |
| is higher than 15 volts. | troubleshooting. |
| Inverter is overloaded. | Ensure load does not exceed the unit's |
|
| Continuous Power rating (see |
|
| specifications). |
|
|
|
Fuse Replacement
1.Unplug the inverter from the DC power outlet.
2.Disassemble the DC plug as pictured below.
3.Replace the 15 amp fuse.
4.Reassemble the DC plug as pictured below.
| Spring |
Power plug | Ring |
| |
| Contact Pin |
15A Fuse | Contact Retainer |
Limited Warranty
CyberPower warrants this CPS160PPB2U (the "Inverter") to be free from material and manufacturing defects for two years. If a defect results in product failure during its normal use, CyberPower’s sole responsibility is to repair or replace (at its sole option) the Inverter.
The foregoing Limited Warranty is the consumer’s sole and exclusive remedy and excludes any incidental or consequential damages. Some States do not allow the exclusion or limitation of incidental and consequential damages, so certain of the above limitations or exclusions may not apply to you (the Consumer). This limited warranty gives the Consumer specific legal rights and the Consumer may have other rights, which vary from State to State.
To make a Limited Warranty claim:
1.Pack and ship the Inverter to CyberPower at 4241 12th Avenue East, Suite 400, Shakopee, MN 55379.
2.Clearly indicate on the outside of the packaging that this is a “WARRANTY RETURN”
3.Clearly include your name and address (a) on the outside packaging and (b) on a sheet of paper enclosed in the box with the Inverter that is being returned.
4.You MUST prepay all shipping costs and you are responsible for packaging and shipment.
CAUTION: Any changes or modifications not expressly approved by the guarantee of this device could void the user’s authority to operate the equipment.
Product Registration
Thank you for purchasing a CyberPower product. Prompt product registration entitles coverage under the Limited Warranty and also allows the opportunity to be notified of product enhancements, upgrades, and other announcements.
Registration is quick and easy at www.cpsww.com/register
Technical Support
Feel free to contact our Tech Support department with installation, troubleshooting, or general product questions.
CyberPower Technical Support
Phone:
Email: tech@cpsww.com
Web: www.CPSww.com
Address: 4241 12th Ave. E., STE 400, Shakopee, MN 55379
Hours of Operation: Monday – Friday, 7:00am – 6:00pm (CST)
Legal notices (FCC Part 15)
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction.
CAUTION: A
CyberPower Systems (USA), Inc.
4241 12th Avenue East, Suite 400, Shakopee, MN 55379 TEL: (952)
FAX: (952)
CPSww.com
C2014 CyberPower Systems, Inc.
All rights reserved. Reproduction in whole or in part without permission is prohibited.
