CyberPower Systems 649532010905 Technical Specifications, General, Input, Output, Indicators

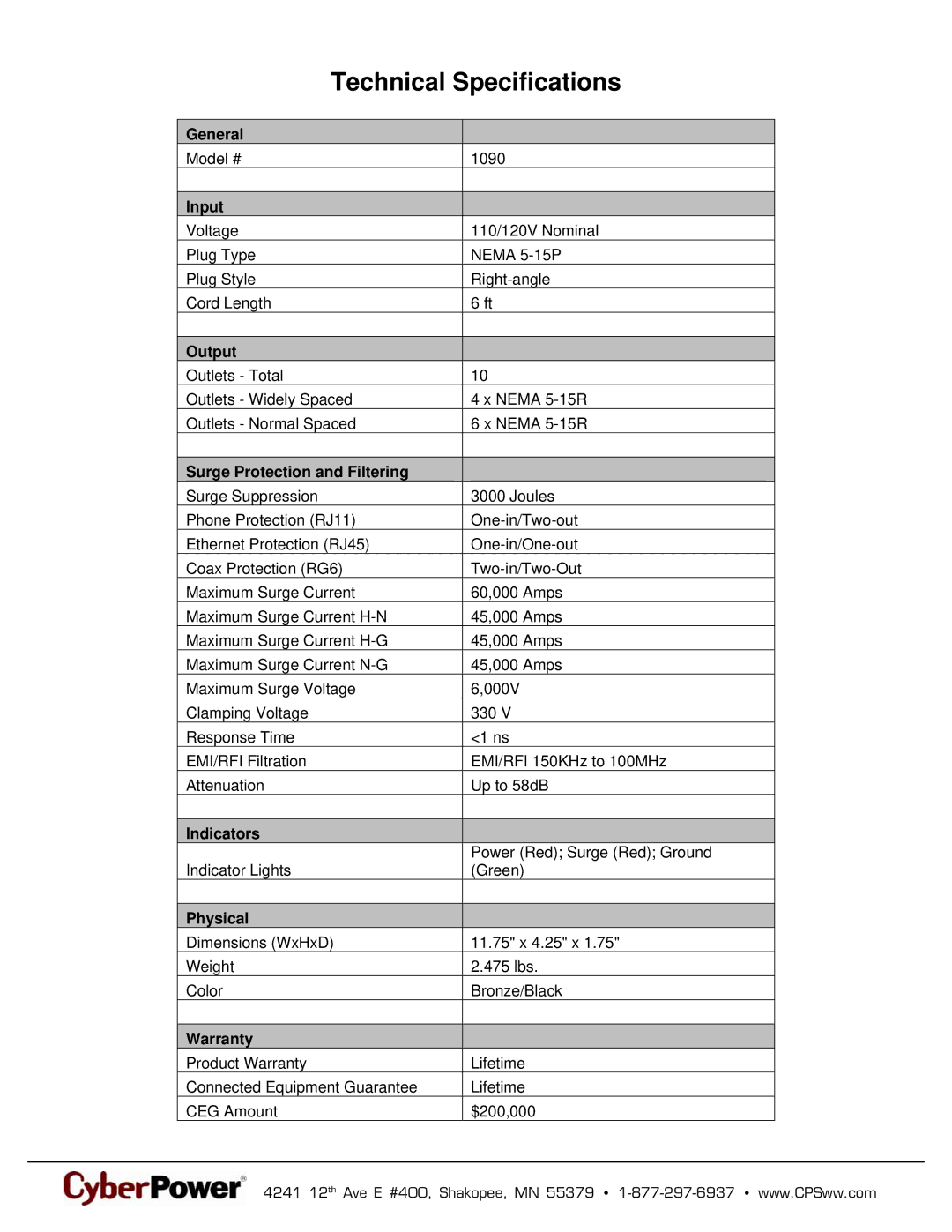

Technical Specifications
General
Model #	1090
Input
Voltage	110/120V Nominal
Plug Type	NEMA 5-15P
Plug Style	Right-angle
Cord Length	6 ft
Output
Outlets - Total	10
Outlets - Widely Spaced	4 x NEMA 5-15R
Outlets - Normal Spaced	6 x NEMA 5-15R
Surge Protection and Filtering
Surge Suppression	3000 Joules
Phone Protection (RJ11)	One-in/Two-out
Ethernet Protection (RJ45)	One-in/One-out
Coax Protection (RG6)	Two-in/Two-Out
Maximum Surge Current	60,000 Amps
Maximum Surge Current H-N	45,000 Amps
Maximum Surge Current H-G	45,000 Amps
Maximum Surge Current N-G	45,000 Amps
Maximum Surge Voltage	6,000V
Clamping Voltage	330 V
Response Time	<1 ns
EMI/RFI Filtration	EMI/RFI 150KHz to 100MHz
Attenuation	Up to 58dB
Indicators
	Power (Red); Surge (Red); Ground
Indicator Lights	(Green)
Physical
Dimensions (WxHxD)	11.75" x 4.25" x 1.75"
Weight	2.475 lbs.
Color	Bronze/Black
Warranty
Product Warranty	Lifetime
Connected Equipment Guarantee	Lifetime
CEG Amount	$200,000

4241 12th Ave E #400, Shakopee, MN 55379 • 1-877-297-6937 • www.CPSww.com
