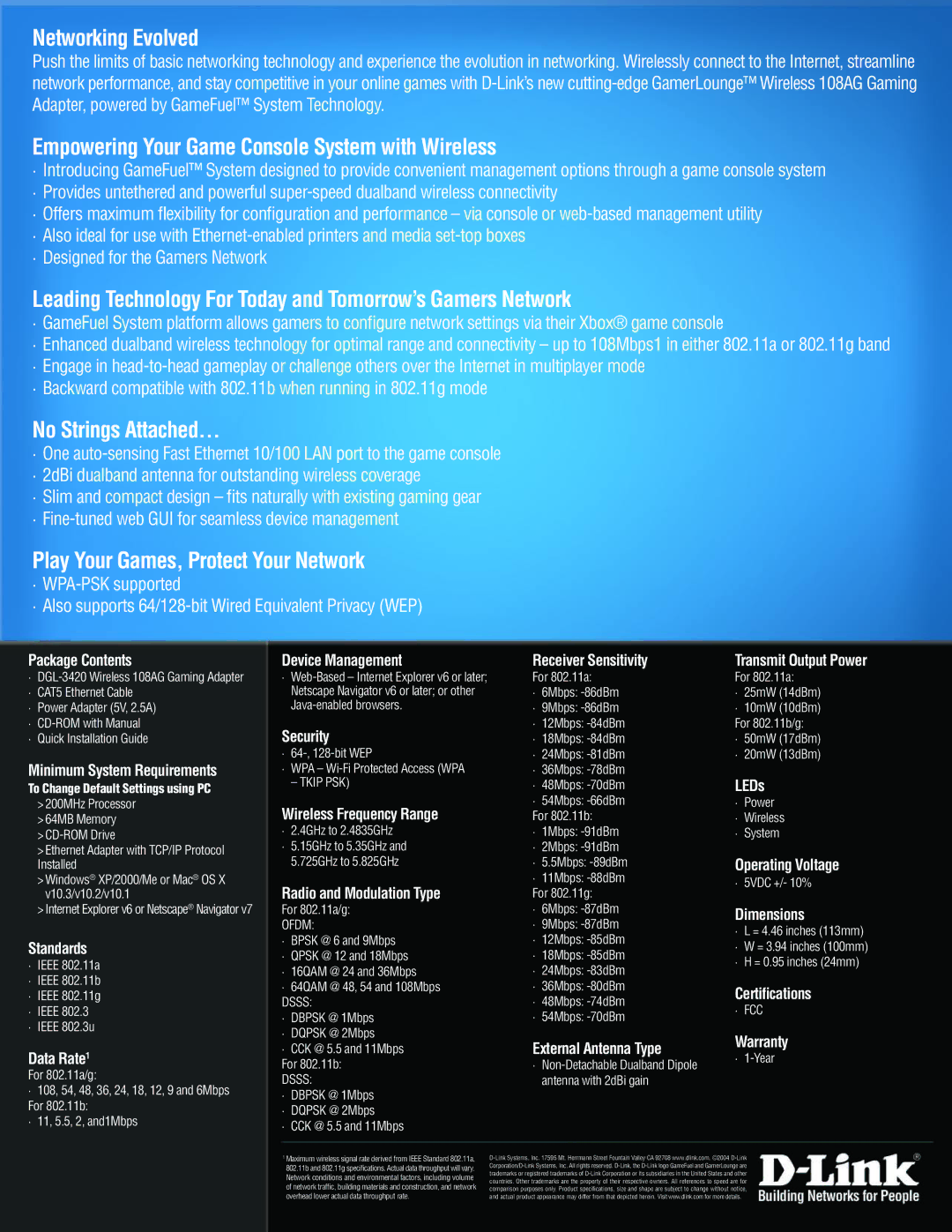

Networking Evolved

Push the limits of basic networking technology and experience the evolution in networking. Wirelessly connect to the Internet, streamline network performance, and stay competitive in your online games with D-Link’s new cutting-edge GamerLounge™ Wireless 108AG Gaming Adapter, powered by GameFuel™ System Technology.

Empowering Your Game Console System with Wireless

·Introducing GameFuel™ System designed to provide convenient management options through a game console system

·Provides untethered and powerful super-speed dualband wireless connectivity

·Offers maximum flexibility for configuration and performance – via console or web-based management utility

·Also ideal for use with Ethernet-enabled printers and media set-top boxes

·Designed for the Gamers Network

Leading Technology For Today and Tomorrow’s Gamers Network

·GameFuel System platform allows gamers to configure network settings via their Xbox® game console

·Enhanced dualband wireless technology for optimal range and connectivity – up to 108Mbps1 in either 802.11a or 802.11g band

·Engage in head-to-head gameplay or challenge others over the Internet in multiplayer mode

·Backward compatible with 802.11b when running in 802.11g mode

No Strings Attached…

·One auto-sensing Fast Ethernet 10/100 LAN port to the game console

·2dBi dualband antenna for outstanding wireless coverage

·Slim and compact design – fits naturally with existing gaming gear

·Fine-tuned web GUI for seamless device management

Play Your Games, Protect Your Network

·WPA-PSK supported

·Also supports 64/128-bit Wired Equivalent Privacy (WEP)

Package Contents

·DGL-3420 Wireless 108AG Gaming Adapter

·CAT5 Ethernet Cable

·Power Adapter (5V, 2.5A)

·CD-ROM with Manual

·Quick Installation Guide

Minimum System Requirements

To Change Default Settings using PC

>200MHz Processor

>64MB Memory

>CD-ROM Drive

>Ethernet Adapter with TCP/IP Protocol Installed

>Windows® XP/2000/Me or Mac® OS X v10.3/v10.2/v10.1

>Internet Explorer v6 or Netscape® Navigator v7

Standards

·IEEE 802.11a

·IEEE 802.11b

·IEEE 802.11g

·IEEE 802.3

·IEEE 802.3u

Data Rate1

For 802.11a/g:

·108, 54, 48, 36, 24, 18, 12, 9 and 6Mbps For 802.11b:

·11, 5.5, 2, and1Mbps

Device Management

·Web-Based – Internet Explorer v6 or later; Netscape Navigator v6 or later; or other Java-enabled browsers.

Security

·64-, 128-bit WEP

·WPA – Wi-Fi Protected Access (WPA

– TKIP PSK)

Wireless Frequency Range

·2.4GHz to 2.4835GHz

·5.15GHz to 5.35GHz and 5.725GHz to 5.825GHz

Radio and Modulation Type

For 802.11a/g:

OFDM:

·BPSK @ 6 and 9Mbps

·QPSK @ 12 and 18Mbps

·16QAM @ 24 and 36Mbps

·64QAM @ 48, 54 and 108Mbps DSSS:

·DBPSK @ 1Mbps

·DQPSK @ 2Mbps

·CCK @ 5.5 and 11Mbps

For 802.11b:

DSSS:

·DBPSK @ 1Mbps

·DQPSK @ 2Mbps

·CCK @ 5.5 and 11Mbps

Receiver Sensitivity

For 802.11a:

·6Mbps: -86dBm

·9Mbps: -86dBm

·12Mbps: -84dBm

·18Mbps: -84dBm

·24Mbps: -81dBm

·36Mbps: -78dBm

·48Mbps: -70dBm

·54Mbps: -66dBm For 802.11b:

·1Mbps: -91dBm

·2Mbps: -91dBm

·5.5Mbps: -89dBm

·11Mbps: -88dBm For 802.11g:

·6Mbps: -87dBm

·9Mbps: -87dBm

·12Mbps: -85dBm

·18Mbps: -85dBm

·24Mbps: -83dBm

·36Mbps: -80dBm

·48Mbps: -74dBm

·54Mbps: -70dBm

External Antenna Type

·Non-Detachable Dualband Dipole antenna with 2dBi gain

Transmit Output Power

For 802.11a:

·25mW (14dBm)

·10mW (10dBm) For 802.11b/g:

·50mW (17dBm)

·20mW (13dBm)

LEDs

·Power

·Wireless

·System

Operating Voltage

· 5VDC +/- 10%

Dimensions

·L = 4.46 inches (113mm)

·W = 3.94 inches (100mm)

·H = 0.95 inches (24mm)

Certifications

· FCC

Warranty

· 1-Year

1Maximum wireless signal rate derived from IEEE Standard 802.11a, D-Link Systems, Inc. 17595 Mt. Herrmann Street Fountain Valley CA 92708 www.dlink.com. ©2004 D-Link

802.11b and 802.11g specifications. Actual data throughput will vary.	Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo GameFuel and GamerLounge are
Network conditions and environmental factors, including volume	trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States and other
	countries. Other trademarks are the property of their respective owners. All references to speed are for
of network traffic, building materials and construction, and network
	comparison purposes only. Product specifications, size and shape are subject to change without notice,
overhead lower actual data throughput rate.	and actual product appearance may differ from that depicted herein. Visit www.dlink.com for more details.
