SPECIFICATIONS

Dayton® Double Bowl Sink Models DDEMR23322 and DDEMR23322R

GENERAL

Sink bowls are formed of #22 gauge, nickel bearing stainless steel. Self-rimming.

DESIGN FEATURES

Bowl Depth: 7" (large bowl), 5-1/8" (disposer bowl).

Coved Corners: 3" vertical and 2-1/4" horizontal (large bowl), 1-3/4" horizontal (small bowl).

Finish: Exposed surfaces are polished to a satin finish with highshine bowl radius.

Underside: Fully undercoated to prevent condensation and deaden sound.

OTHER

Drain opening: 3-1/2".

NOTE: Unless otherwise specified, sink is furnished with 4 faucet holes as shown.

These sinks do NOT comply with ASME A112.19.3-2000.

SINK DIMENSIONS (INCHES)*

Model DDEMR233224



















Cutout in

No. of





















Countertop











Inside





Inside



11/2" Dia.

















(11/2" Radius

Faucet

Minimum



Overall

Left Bowl



Right Bowl

Corners)

Model



Holes

Cabinet

Number

L

W

L

W

D

L

W

D

L

W

4" Centers

Size

DDEMR23322

33

22

71/2

153/4 51/8

21

153/4

7

323/8 213/8

3 or 4

36

DDEMR23322R

33

22

21

153/4

7

71/2

153/4

51/8

323/8

213/8

3 or 4

36

*Length is left to right. Width is front to back.

4"

4"

4"

4"

4"

4"



22"

22"





15-3/4"

15-3/4"



3" R

3" R

3" R

3" R

7-1/2"

21"

21"

7-1/2"



33"

33"



Model DDEMR233224 Illustrated

Model DDEMR23322R4 Illustrated



HOLE DRILLING CONFIGURATIONS





4" 4"

4" 4"



3

3









4"



4"



4"







4"



4"



4"







































4

4

ALL DIMENSIONS IN INCHES, TO CONVERT TO MILLIMETERS MULTIPLY BY 25.4.

In keeping with our policy of continuing product improvement, Elkay reserves the right to change product specifications without notice.

This specification describes an Elkay product with design, quality and functional benefits to the user. When making a comparison of other producers’ offerings, be certain these features are not overlooked.

Elkay

2222 Camden Court

Printed in U.S.A.

elkayusa.com

Oak Brook, IL 60523

©2007 Elkay



(Rev. 1/07) 2-33D





Page 1

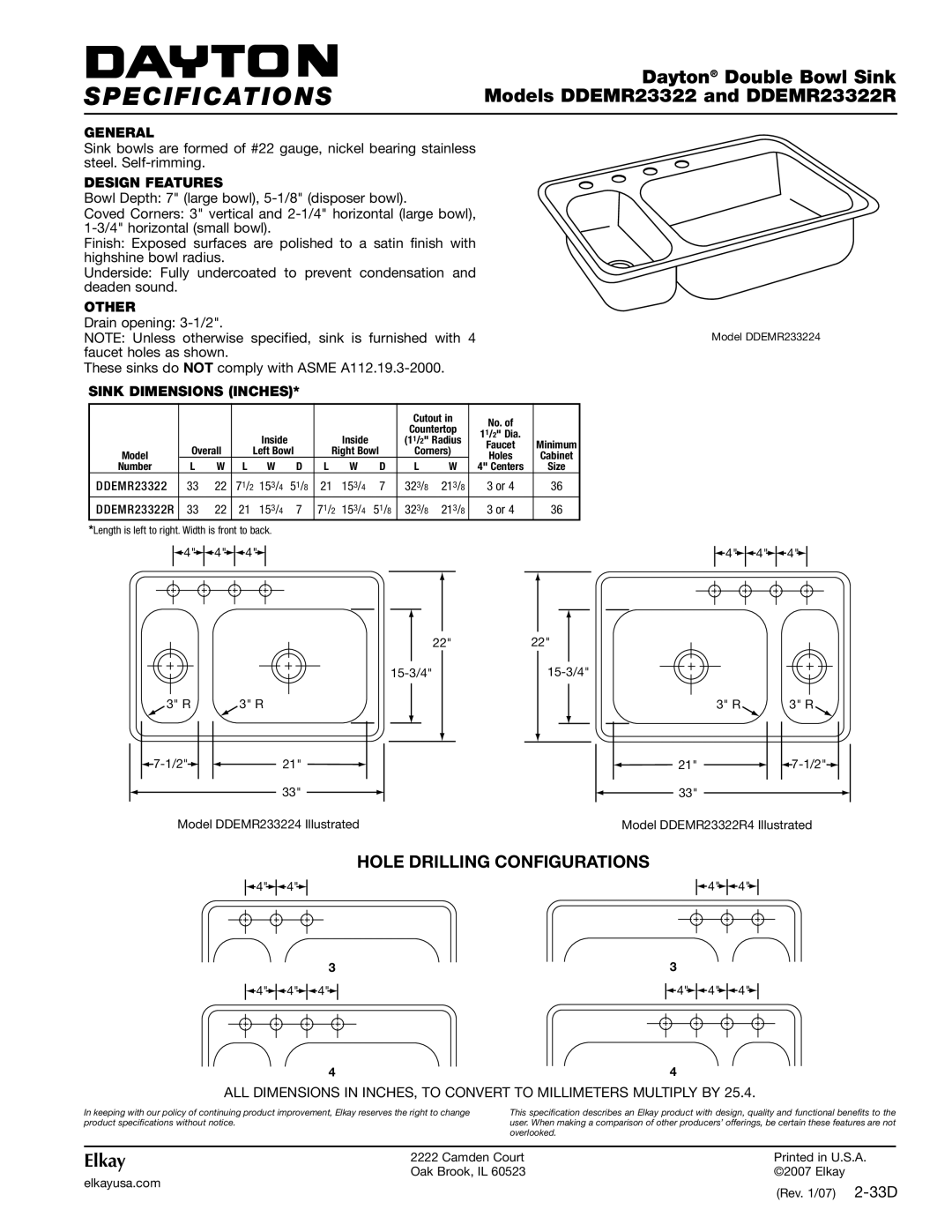

Image 1
Dayton specifications Specifications, Dayton Double Bowl Sink Models DDEMR23322 and DDEMR23322R, Elkay

DDEMR23322R, DDEMR23322 specifications
