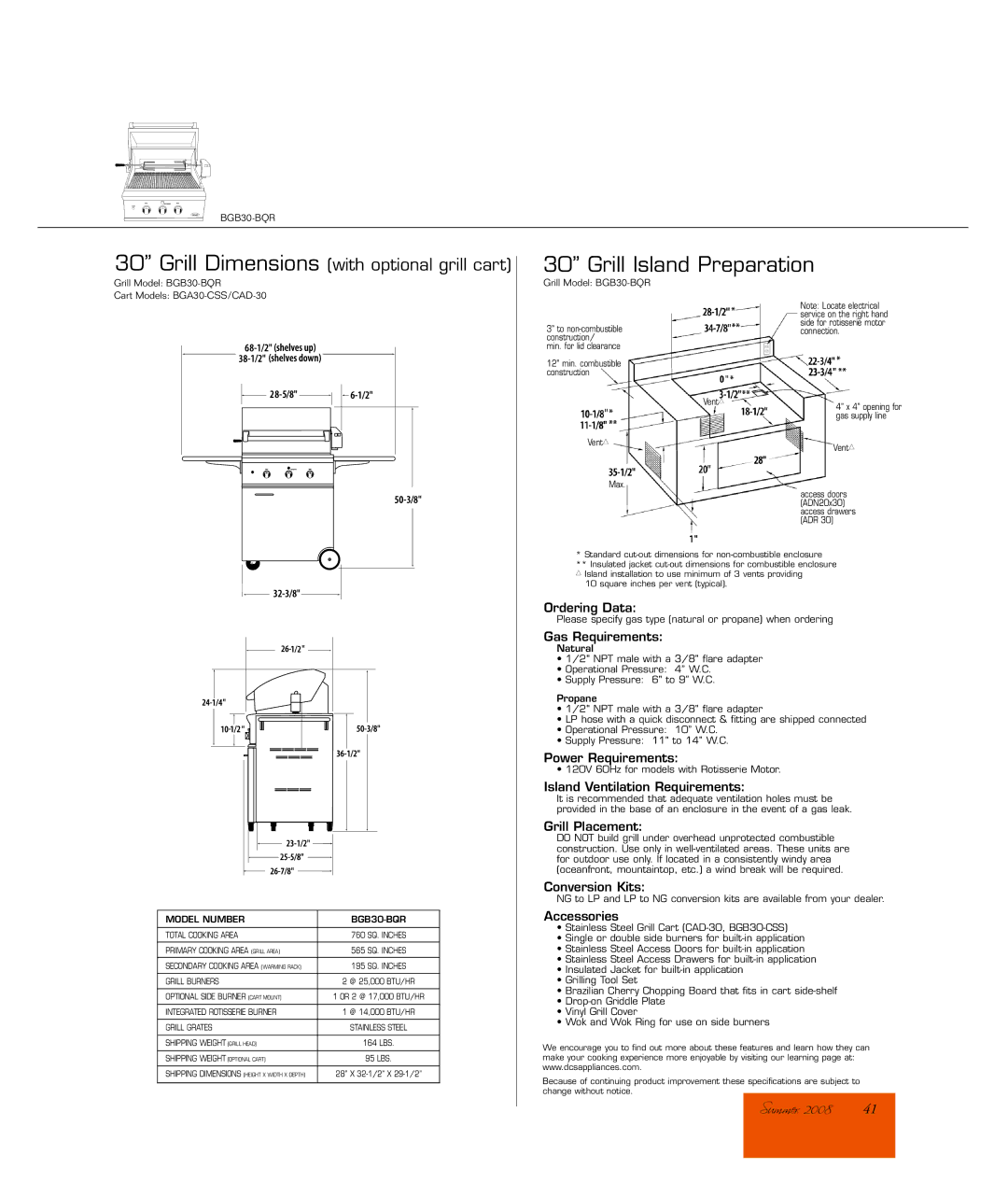

DCS OGP30iN Summer, 30” Grill Island Preparation, 30” Grill Dimensions with optional grill cart

BGB30-BQR

30” Grill Dimensions (with optional grill cart)

Grill Model: BGB30-BQR

Cart Models: BGA30-CSS/CAD-30

MODEL NUMBER	BGB30-BQR
TOTAL COOKING AREA	760 SQ. INCHES
PRIMARY COOKING AREA (GRILL AREA)	565 SQ. INCHES
SECONDARY COOKING AREA (WARMING RACK)	195 SQ. INCHES
GRILL BURNERS	2 @ 25,000 BTU/HR
OPTIONAL SIDE BURNER (CART MOUNT)	1 OR 2 @ 17,000 BTU/HR
INTEGRATED ROTISSERIE BURNER	1 @ 14,000 BTU/HR
GRILL GRATES	STAINLESS STEEL
SHIPPING WEIGHT (GRILL HEAD)	164 LBS.
SHIPPING WEIGHT (OPTIONAL CART)	95 LBS.
SHIPPING DIMENSIONS (HEIGHT X WIDTH X DEPTH)	28” X 32-1/2” X 29-1/2”

30” Grill Island Preparation

Grill Model: BGB30-BQR

Note: Locate electrical service on the right hand side for rotisserie motor

3” to non-combustibleconnection. construction/

min. for lid clearance

12” min. combustible construction

Vent#	4” x 4” opening for
	gas supply line
Vent#	Vent#
Max.	access doors
	(ADN20x30)
	access drawers
	(ADR 30)

*Standard cut-out dimensions for non-combustible enclosure

**Insulated jacket cut-out dimensions for combustible enclosure

# Island installation to use minimum of 3 vents providing 10 square inches per vent (typical).

Ordering Data:

Please specify gas type (natural or propane) when ordering

Gas Requirements:

Natural

•1/2" NPT male with a 3/8" flare adapter

•Operational Pressure: 4” W.C.

•Supply Pressure: 6" to 9” W.C.

Propane

•1/2" NPT male with a 3/8" flare adapter

•LP hose with a quick disconnect & fitting are shipped connected

•Operational Pressure: 10” W.C.

•Supply Pressure: 11" to 14” W.C.

Power Requirements:

• 120V 60Hz for models with Rotisserie Motor.

Island Ventilation Requirements:

It is recommended that adequate ventilation holes must be provided in the base of an enclosure in the event of a gas leak.

Grill Placement:

DO NOT build grill under overhead unprotected combustible construction. Use only in well-ventilated areas. These units are for outdoor use only. If located in a consistently windy area (oceanfront, mountaintop, etc.) a wind break will be required.

Conversion Kits:

NG to LP and LP to NG conversion kits are available from your dealer.

Accessories

•Stainless Steel Grill Cart (CAD-30, BGB30-CSS)

•Single or double side burners for built-in application

•Stainless Steel Access Doors for built-in application

•Stainless Steel Access Drawers for built-in application

•Insulated Jacket for built-in application

•Grilling Tool Set

•Brazilian Cherry Chopping Board that fits in cart side-shelf

•Drop-on Griddle Plate

•Vinyl Grill Cover

•Wok and Wok Ring for use on side burners

We encourage you to find out more about these features and learn how they can make your cooking experience more enjoyable by visiting our learning page at: www.dcsappliances.com.

Because of continuing product improvement these specifications are subject to change without notice.
