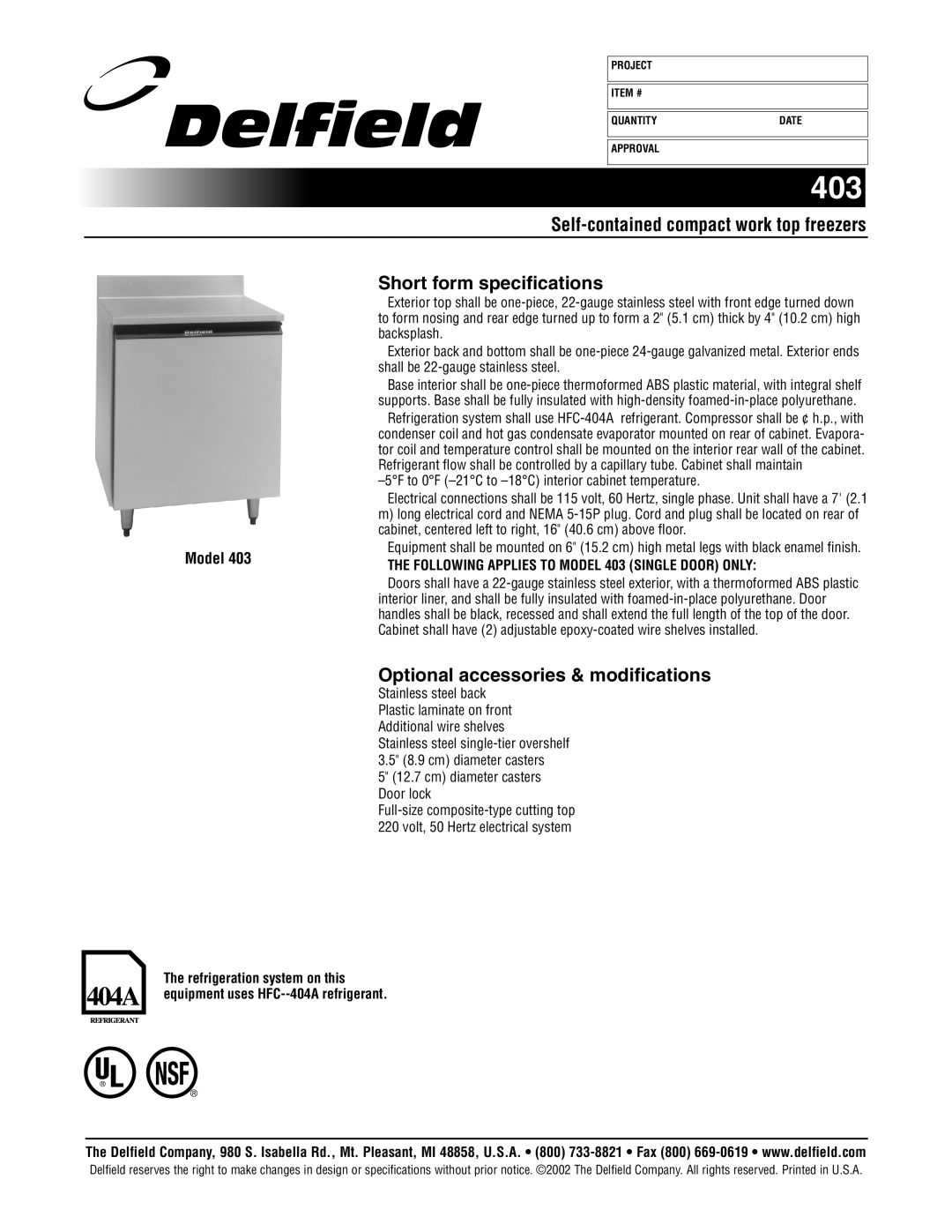

PROJECT



ITEM #



QUANTITY

DATE

APPROVAL

403

Self-contained compact work top freezers

Short form specifications



Exterior top shall be one-piece, 22-gauge stainless steel with front edge turned down



to form nosing and rear edge turned up to form a 2" (5.1 cm) thick by 4" (10.2 cm) high



backsplash.



Exterior back and bottom shall be one-piece 24-gauge galvanized metal. Exterior ends



shall be 22-gauge stainless steel.



Base interior shall be one-piece thermoformed ABS plastic material, with integral shelf



supports. Base shall be fully insulated with high-density foamed-in-place polyurethane.



Refrigeration system shall use HFC-404A refrigerant. Compressor shall be ¢ h.p., with



condenser coil and hot gas condensate evaporator mounted on rear of cabinet. Evapora-



tor coil and temperature control shall be mounted on the interior rear wall of the cabinet.



Refrigerant flow shall be controlled by a capillary tube. Cabinet shall maintain



–5°F to 0°F (–21°C to –18°C) interior cabinet temperature.



Electrical connections shall be 115 volt, 60 Hertz, single phase. Unit shall have a 7' (2.1



m) long electrical cord and NEMA 5-15P plug. Cord and plug shall be located on rear of



cabinet, centered left to right, 16" (40.6 cm) above floor.

Model 403

Equipment shall be mounted on 6" (15.2 cm) high metal legs with black enamel finish.

THE FOLLOWING APPLIES TO MODEL 403 (SINGLE DOOR) ONLY:





Doors shall have a 22-gauge stainless steel exterior, with a thermoformed ABS plastic



interior liner, and shall be fully insulated with foamed-in-place polyurethane. Door



handles shall be black, recessed and shall extend the full length of the top of the door.



Cabinet shall have (2) adjustable epoxy-coated wire shelves installed.

Optional accessories & modifications

Stainless steel back Plastic laminate on front Additional wire shelves Stainless steel single-tier overshelf 3.5" (8.9 cm) diameter casters

5" (12.7 cm) diameter casters Door lock

Full-size composite-type cutting top 220 volt, 50 Hertz electrical system

The refrigeration system on this equipment uses HFC--404A refrigerant.

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.

Page 1
Image 1
Delfield 403 Standard specifications Optional accessories & modifications, Backsplash, Shall be 22-gauge stainless steel

403 Standard specifications

The Delfield 403 Standard is an essential refrigeration unit designed to meet the rigorous demands of commercial food service environments. Renowned for its reliability and efficiency, this unit serves as an invaluable asset in restaurants, catering operations, and other food service settings.

One of the standout features of the Delfield 403 Standard is its robust construction. Crafted from high-quality stainless steel, the exterior is not only durable but also easy to clean, promoting hygiene and ensuring a professional appearance. The interior is designed with a seamless liner, preventing the accumulation of debris and facilitating maintenance.

In terms of capacity, the Delfield 403 Standard offers ample storage space for perishable goods. It boasts adjustable shelving, allowing users to customize the interior layout according to their specific needs. This adaptability makes it easy to store a variety of items, from large trays to smaller containers.

Temperature control is a critical characteristic of the Delfield 403. The unit features advanced digital thermostats that provide precise temperature regulation. This ensures that food items are kept at safe temperatures, maximizing freshness and minimizing spoilage. The refrigeration system operates with a high-efficiency compressor and an eco-friendly refrigerant, combining performance with energy efficiency.

For added convenience, the Delfield 403 Standard incorporates user-friendly controls. The intuitive digital interface allows for quick adjustments to settings, while the unit's self-closing doors improve energy conservation by limiting the amount of time the doors are open. Additionally, the doors are equipped with a magnetic gasket, ensuring a tight seal that further enhances temperature retention.

Another notable technology featured in the Delfield 403 is its advanced air circulation system, which promotes even cooling throughout the cabinet. This technology helps eliminate hot spots, ensuring that all areas of the unit maintain consistent temperatures.

In summary, the Delfield 403 Standard stands out in the realm of commercial refrigerators due to its combination of durability, efficient temperature control, customizable storage options, and user-friendly features. This unit is an excellent choice for any food service operation looking to ensure the safe and effective storage of perishable items.
