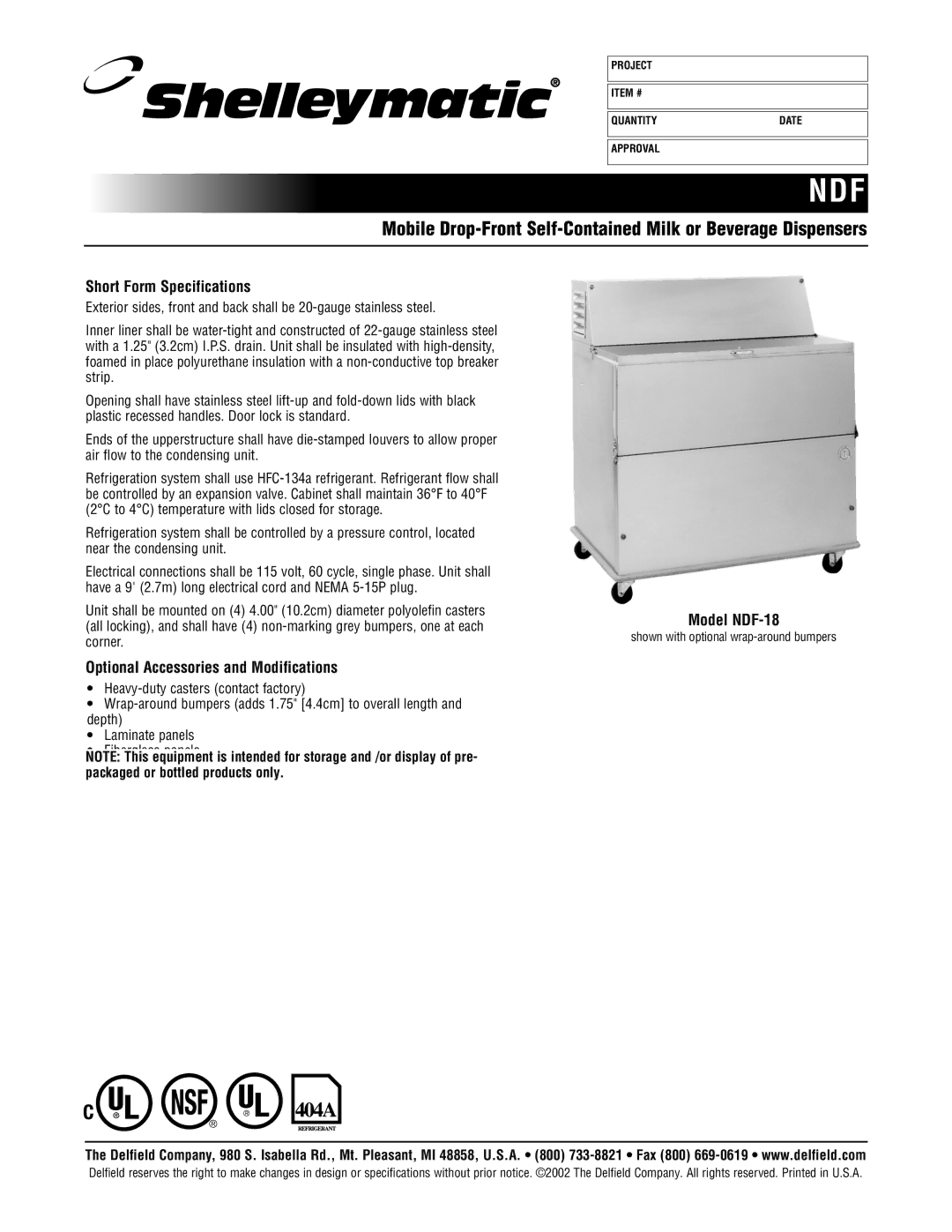

Mobile Drop-Front Self-Contained Milk or Beverage Dispensers

Short Form Specifications

Exterior sides, front and back shall be 20-gauge stainless steel.

Inner liner shall be water-tight and constructed of 22-gauge stainless steel with a 1.25" (3.2cm) I.P.S. drain. Unit shall be insulated with high-density, foamed in place polyurethane insulation with a non-conductive top breaker strip.

Opening shall have stainless steel lift-up and fold-down lids with black plastic recessed handles. Door lock is standard.

Ends of the upperstructure shall have die-stamped louvers to allow proper air flow to the condensing unit.

Refrigeration system shall use HFC-134a refrigerant. Refrigerant flow shall be controlled by an expansion valve. Cabinet shall maintain 36°F to 40°F (2°C to 4°C) temperature with lids closed for storage.

Refrigeration system shall be controlled by a pressure control, located near the condensing unit.

Electrical connections shall be 115 volt, 60 cycle, single phase. Unit shall have a 9' (2.7m) long electrical cord and NEMA 5-15P plug.

Unit shall be mounted on (4) 4.00" (10.2cm) diameter polyolefin casters (all locking), and shall have (4) non-marking grey bumpers, one at each corner.

Model NDF-18

shown with optional wrap-around bumpers

Optional Accessories and Modifications

Heavy-duty casters (contact factory)

Wrap-around bumpers (adds 1.75" [4.4cm] to overall length and depth)

Laminate panels

NOTE: This equipment is intended for storage and /or display of pre- packaged or bottled products only.

The Delfield Company, 980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

Delfield reserves the right to make changes in design or specifications without prior notice. ©2002 The Delfield Company. All rights reserved. Printed in U.S.A.

Page 1
Image 1
Delfield specifications Ndf, Short Form Specifications, Model NDF-18, Optional Accessories and Modifications

NDF specifications

Delfield NDF, also known as the Delfield NDF Series, is renowned in the foodservice industry for its state-of-the-art refrigeration systems designed for the commercial kitchen environment. Delivering robust performance and reliability, the NDF line features several key technologies and characteristics that set it apart from traditional refrigeration units.

One of the main highlights of the Delfield NDF series is its advanced insulation technology. The use of high-density, foamed-in-place polyurethane insulation ensures maximum energy efficiency while maintaining optimal temperature control. This feature significantly reduces energy consumption, thus lowering operational costs for businesses.

Another standout characteristic of the NDF series is the innovative airflow design. Delfield has engineered these units to provide uniform air distribution, eliminating hot spots and ensuring that all stored items are kept at safe and consistent temperatures. This is particularly crucial in maintaining food safety standards and extending the shelf life of perishables.

In terms of durability, the Delfield NDF boasts stainless steel construction, which not only ensures longevity but also makes the units easy to clean and maintain. The exterior is resistant to corrosion and damage, which is essential in the busy environments of commercial kitchens. Additionally, the interior design maximizes space utilization, allowing for efficient storage and organization.

The Delfield NDF series also incorporates advanced electronic controls that offer intuitive operation and monitoring capabilities. These controls allow users to easily set and adjust temperatures, ensuring that they can quickly respond to varying kitchen demands. Moreover, the integrated diagnostic features help in troubleshooting and maintaining optimal performance, reducing downtime.

Another innovative technology employed in the NDF series is the use of environment-friendly refrigerants. By adhering to sustainable practices, Delfield contributes to minimizing the environmental impact of its refrigeration solutions. This commitment to sustainability resonates well with contemporary businesses looking to reduce their carbon footprint.

In summary, the Delfield NDF series stands out for its energy-efficient insulation, superior airflow design, durable construction, intuitive electronic controls, and commitment to sustainability. These features empower foodservice operators to optimize their refrigeration processes, enhance food safety, and minimize operational costs, making Delfield a trusted name in commercial kitchen refrigeration solutions.
