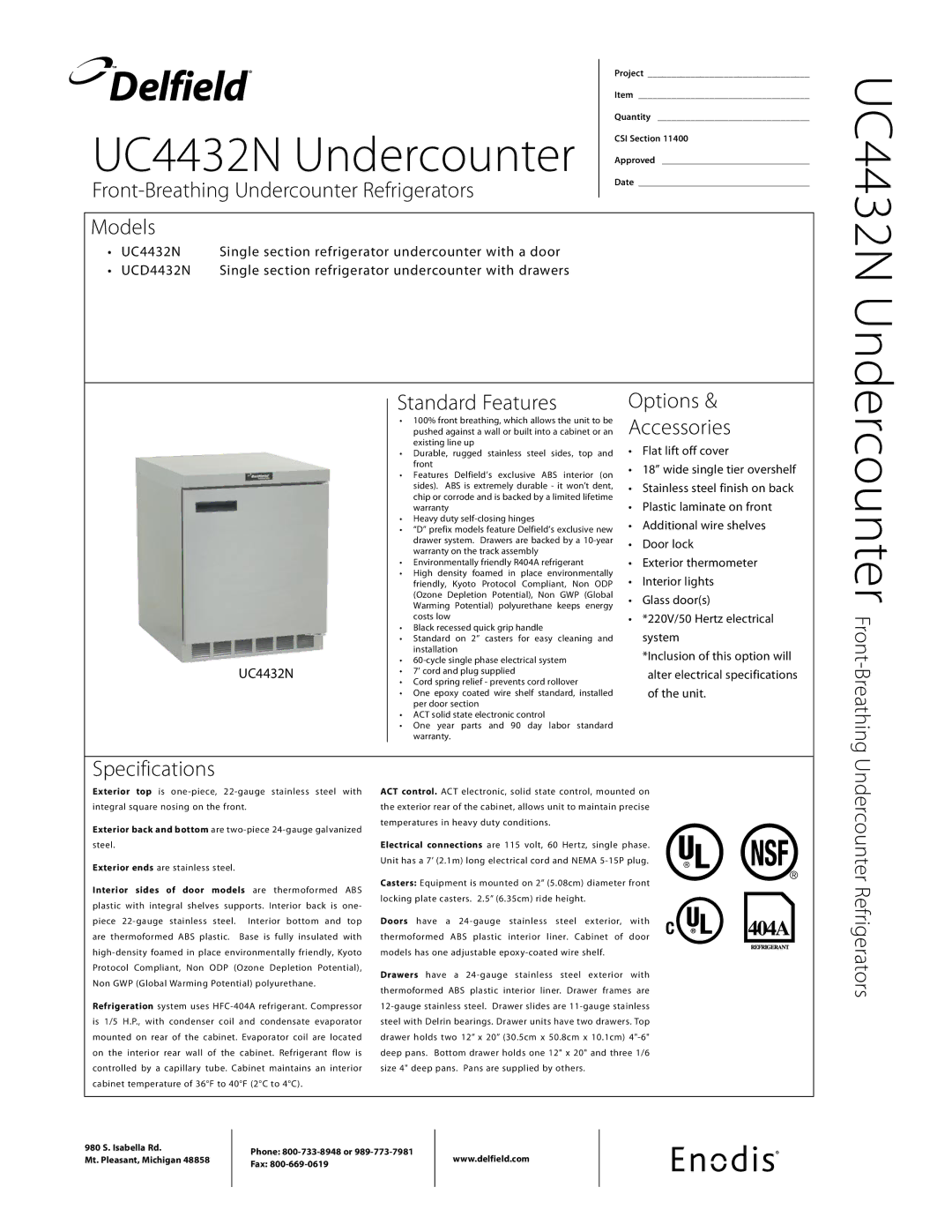

Delfield®

Front-Breathing Undercounter Refrigerators

 ;=





 ;=





 ;=





 ;=

 ;=

 ;=

 ;=

 ;=

!,4 3(%,&





 ;=





 ;=

3(%,&







;=





;=







;=

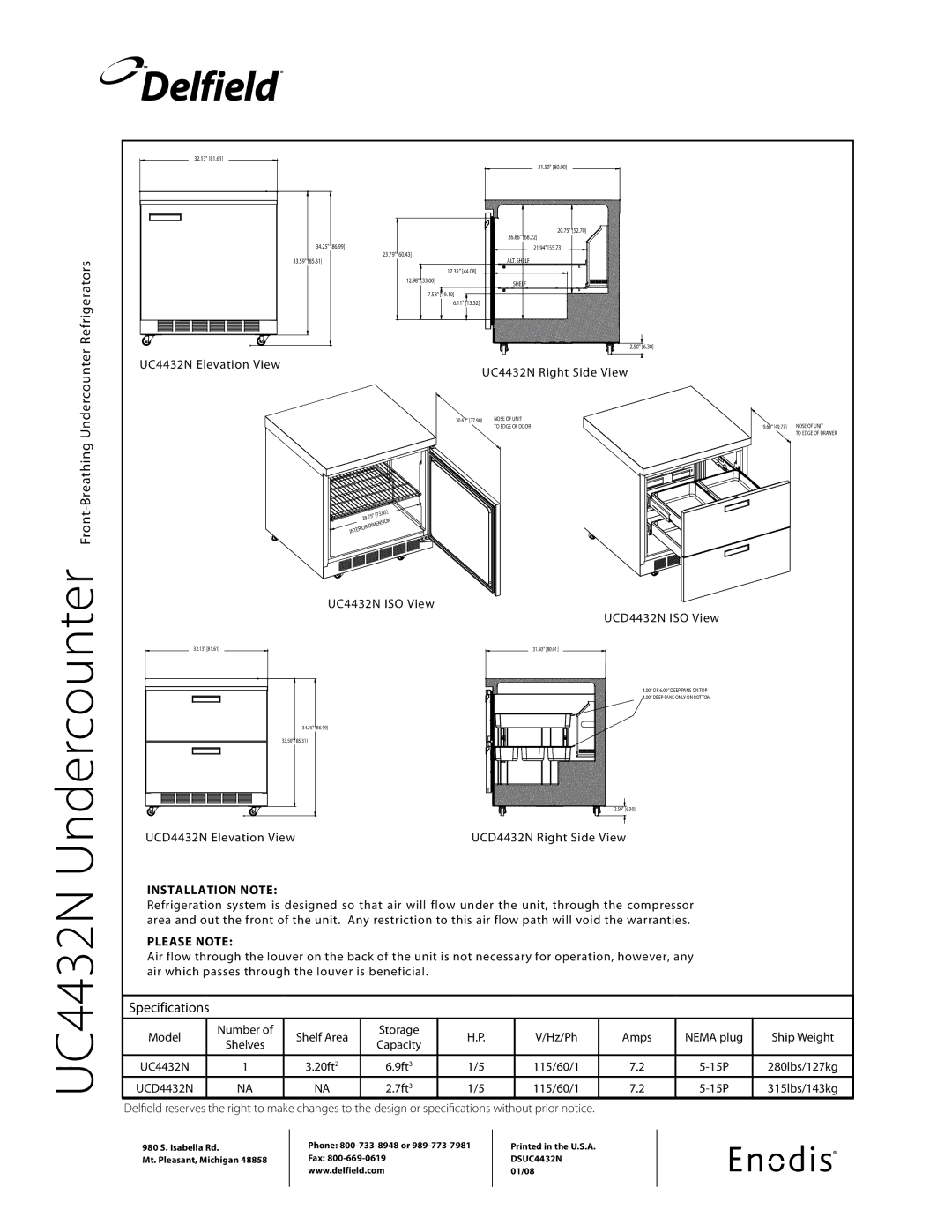

UC4432N Elevation View

UC4432N Right Side View











./3% /&%5.)4







 ;=















4//%$'% /&'$//2













;=  . $)-%.3)/ ).4%2)/2

UC4432N ISO View

UCD4432N ISO View

19.60" [49.77]

NOSE OF UNIT



TO EDGE OF DRAWER

Undercounter

32.13" [81.61]

31.50" [80.01]



34.25" [86.99]



33.59" [85.31]

4.00" OR 6.00" DEEP PANS ON TOP 4.00" DEEP PANS ONLY ON BOTTOM

2.50" [6.30]

UC4432N

UCD4432N Elevation View

UCD4432N Right Side View

INSTALLATION NOTE:

Refrigeration system is designed so that air will flow under the unit, through the compressor area and out the front of the unit. Any restriction to this air flow path will void the warranties.

PLEASE NOTE:

Air flow through the louver on the back of the unit is not necessary for operation, however, any air which passes through the louver is beneficial.

Specifications

Model

Number of

Shelf Area

Storage

h.p.



V/Hz/Ph

Amps

NEMA plug

Ship Weight

Shelves

Capacity







































UC4432N

1

3.20ft2

6.9ft3

1/5



115/60/1

7.2

5-15P

280lbs/127kg





















UCD4432N

NA

NA

2.7ft3

1/5



115/60/1

7.2

5-15P

315lbs/143kg

Delfield reserves the right to make changes to the design or specifications

without prior notice.







980 S. Isabella Rd.

Mt. Pleasant, Michigan 48858

Phone: 800-733-8948 or 989-773-7981

Fax: 800-669-0619 www.delfield.com

Printed in the U.S.A. DSUC4432N 01/08
