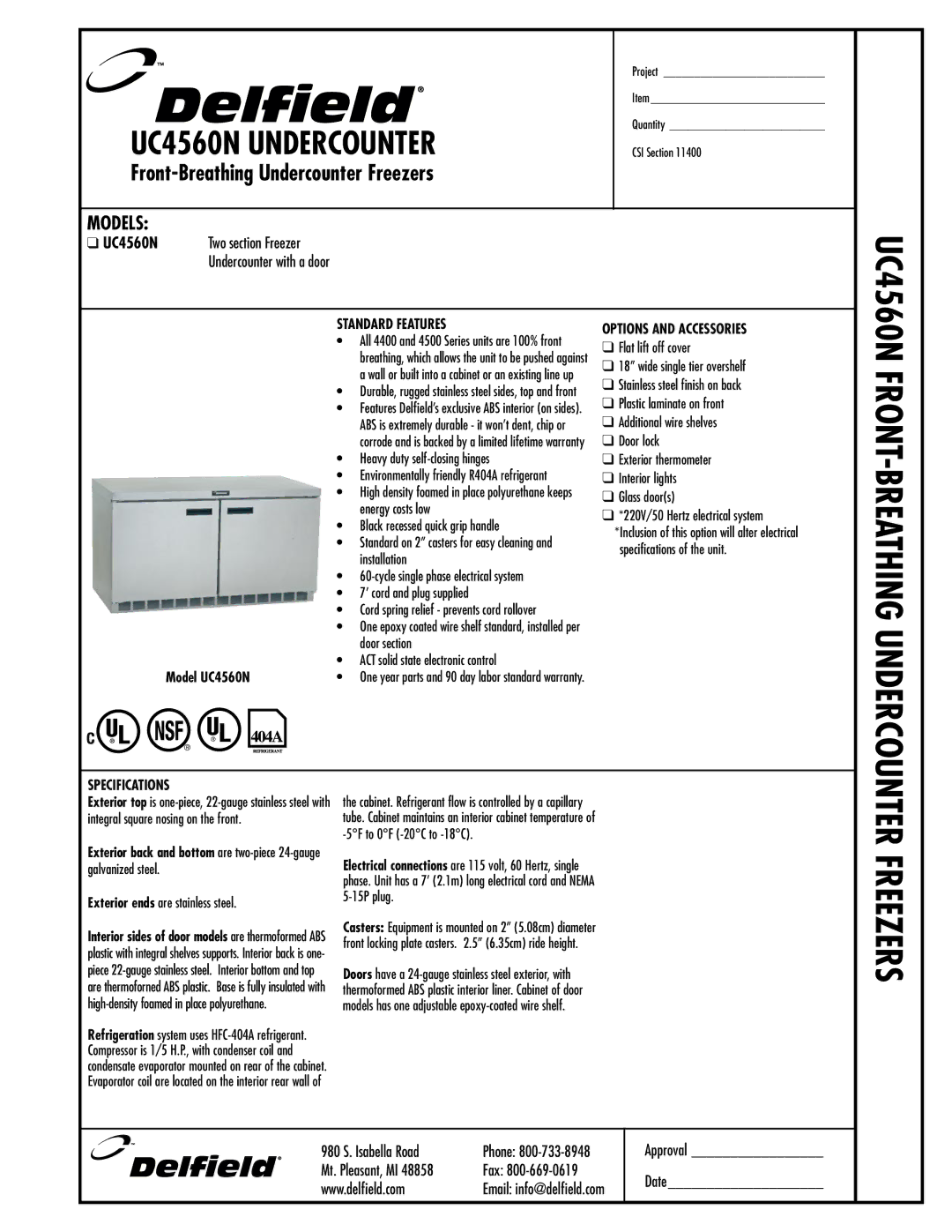

UC4560N UNDERCOUNTER

Front-Breathing Undercounter Freezers

Project_ __________________________

Item_____________________________

Quantity_ _________________________

CSI Section 11400

MODELS:

UC4560N

Two section Freezer



Undercounter with a door

UC4560N



STANDARD FEATURES



All 4400 and 4500 Series units are 100% front





breathing, which allows the unit to be pushed against





a wall or built into a cabinet or an existing line up



Durable, rugged stainless steel sides, top and front



Features Delfield’s exclusive ABS interior (on sides).





ABS is extremely durable - it won’t dent, chip or





corrode and is backed by a limited lifetime warranty



Heavy duty self-closing hinges



Environmentally friendly R404A refrigerant



High density foamed in place polyurethane keeps





energy costs low



Black recessed quick grip handle



Standard on 2” casters for easy cleaning and





installation



60-cycle single phase electrical system



7’ cord and plug supplied



Cord spring relief - prevents cord rollover



One epoxy coated wire shelf standard, installed per





door section



ACT solid state electronic control

Model UC4560N

One year parts and 90 day labor standard warranty.

OPTIONS AND ACCESSORIES

Flat lift off cover

18” wide single tier overshelf

Stainless steel finish on back

Plastic laminate on front

Additional wire shelves

Door lock

Exterior thermometer

Interior lights

Glass door(s)

*220V/50 Hertz electrical system

*Inclusion of this option will alter electrical specifications of the unit.

FRONT-BREATHING U

SPECIFICATIONS

Exterior top is one-piece, 22-gauge stainless steel with integral square nosing on the front.

Exterior back and bottom are two-piece24-gauge

galvanized steel.

Exterior ends are stainless steel.

Interior sides of door models are thermoformed ABS

plastic with integral shelves supports. Interior back is one- piece 22-gauge stainless steel. Interior bottom and top are thermoforned ABS plastic. Base is fully insulated with high-density foamed in place polyurethane.

Refrigeration system uses HFC-404A refrigerant. Compressor is 1/5 H.P., with condenser coil and condensate evaporator mounted on rear of the cabinet. Evaporator coil are located on the interior rear wall of

the cabinet. Refrigerant flow is controlled by a capillary tube. Cabinet maintains an interior cabinet temperature of

-5°F to 0°F (-20°C to -18°C).

Electrical connections are 115 volt, 60 Hertz, single phase. Unit has a 7’ (2.1m) long electrical cord and NEMA 5-15P plug.

Casters: Equipment is mounted on 2” (5.08cm) diameter front locking plate casters. 2.5” (6.35cm) ride height.

Doors have a 24-gauge stainless steel exterior, with thermoformed ABS plastic interior liner. Cabinet of door models has one adjustable epoxy-coated wire shelf.

980 S. Isabella Road

Phone: 800-733-8948

Approval__________________



Mt. Pleasant, MI 48858

Fax: 800-669-0619

Date_____________________

www.delfield.com

Email: info@delfield.com













Page 1
Image 1
Delfield UC4560N specifications Standard Features, Options and Accessories, Specifications

UC4560N specifications

The Delfield UC4560N is a highly efficient undercounter freezer designed for the rigorous demands of commercial kitchens. This robust unit offers optimal storage solutions and enhances food preservation while ensuring easy access in bustling dining environments. Renowned for its reliability and advanced technology, the UC4560N features a sleek stainless steel exterior, providing not only durability but also a contemporary look that fits seamlessly into any kitchen design.

One of the standout features of the Delfield UC4560N is its impressive capacity, designed to hold up to 20 cubic feet of frozen items. This model includes adjustable shelving that allows for flexible organization, making it easy to store and retrieve ingredients. Additionally, its internal design maximizes space utilization, catering to the needs of foodservice operations ranging from restaurants to catering businesses.

The UC4560N incorporates advanced refrigeration technology, ensuring rapid cooling and consistent temperatures that help maintain the integrity of frozen products. With a top-mounted compressor, the unit allows for improved airflow and temperature management, reducing the risk of overheating and ensuring efficient operation. The freezer’s digital thermostat provides precise temperature control, further enhancing food safety standards.

Energy efficiency is another key characteristic of the Delfield UC4560N. This model is designed to minimize energy consumption, contributing to lower operating costs and promoting environmentally friendly practices. With its LED lighting, the freezer ensures visibility inside the storage area while using minimal energy.

Safety features are paramount in the UC4560N's design. The unit includes a self-closing door with a stay-open feature, making restocking simple while ensuring that the interior remains at optimal temperatures. The door is also equipped with a secure lock, providing added security for stored items.

In summary, the Delfield UC4560N stands out in the commercial kitchen realm due to its combination of capacity, energy efficiency, and innovative refrigeration technology. With its focus on user convenience and food safety, this undercounter freezer is an essential asset for any foodservice operation looking to streamline operations while enhancing food storage capabilities. Whether for busy restaurants or catering services, the Delfield UC4560N delivers reliability and performance that meets the high standards of the culinary industry.
