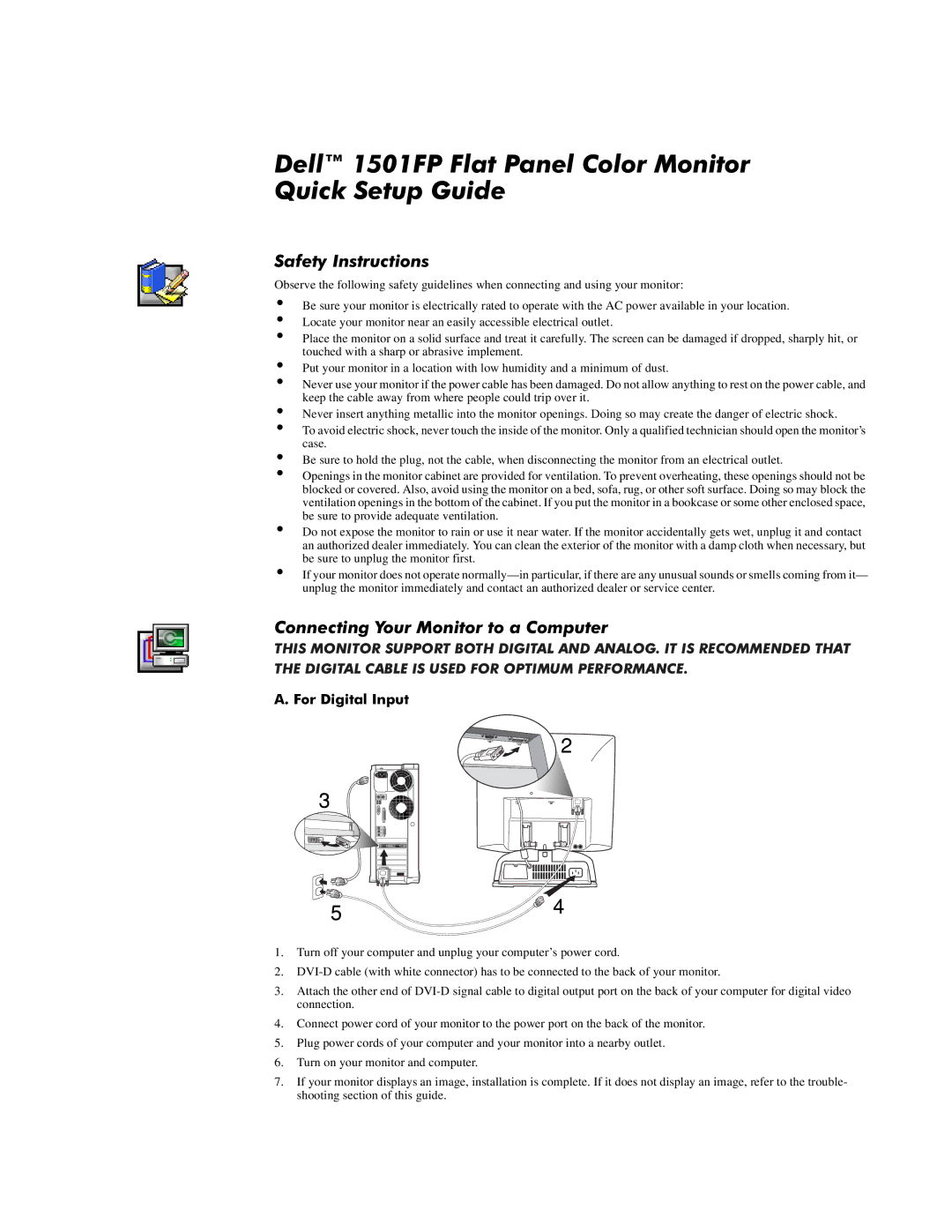

Dell 1501FP manual 0RQLWRU&RQWUROVDQG,QGLFDWRUV, Ru$Qdorj,Qsxw

%￿￿)RU￿$QDORJ￿,QSXW

2

3

5 4

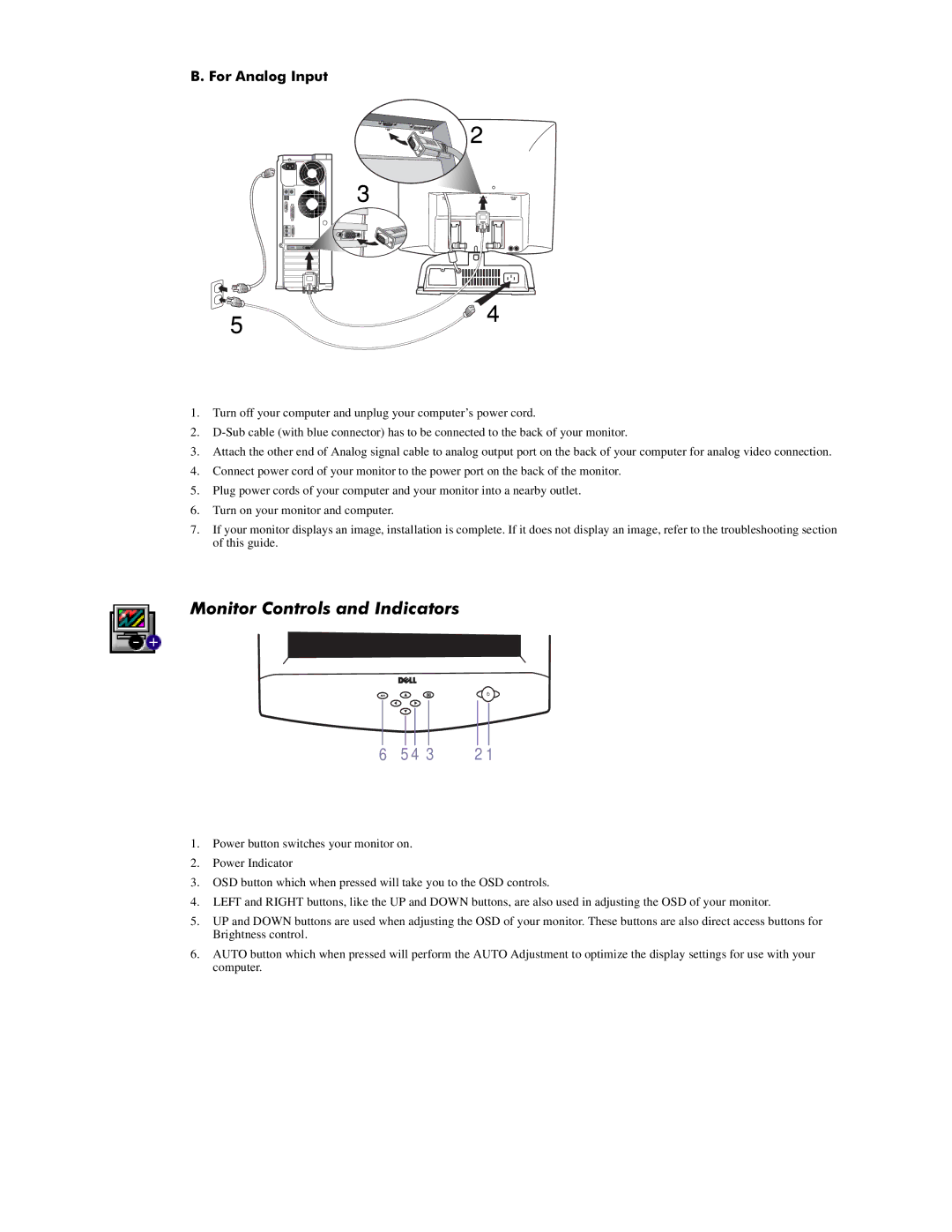

1.Turn off your computer and unplug your computer’s power cord.

2.D-Sub cable (with blue connector) has to be connected to the back of your monitor.

3.Attach the other end of Analog signal cable to analog output port on the back of your computer for analog video connection.

4.Connect power cord of your monitor to the power port on the back of the monitor.

5.Plug power cords of your computer and your monitor into a nearby outlet.

6.Turn on your monitor and computer.

7.If your monitor displays an image, installation is complete. If it does not display an image, refer to the troubleshooting section of this guide.

0RQLWRU￿&RQWUROV￿DQG￿,QGLFDWRUV

6 5 4 3 2 1

1.Power button switches your monitor on.

2.Power Indicator

3.OSD button which when pressed will take you to the OSD controls.

4.LEFT and RIGHT buttons, like the UP and DOWN buttons, are also used in adjusting the OSD of your monitor.

5.UP and DOWN buttons are used when adjusting the OSD of your monitor. These buttons are also direct access buttons for Brightness control.

6.AUTO button which when pressed will perform the AUTO Adjustment to optimize the display settings for use with your computer.
