Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
|
|
| 13 15/16″ |
|
|
|
|
|
| (354 mm) | 9 3/8″ (238 mm) |
| |
|
|
|
|
| ||
|
|
|
|
|
| 1 3/4″ |
|
|
| 2 19/32″ |
|
| (45 mm) |
|
|
| (66 mm) |
|
|
|
|
|
| Dia. Base |
|
|
|
| 4 3/8″ | 2 1/8″ |
|
|
|
|
| (111 mm) |
|
|
|
| |
| (54 mm) |
|
|
| ||
3 1/2″ |
|
|
| |||
Dia. |
|
|
|
| ||
(89 mm) |
|
|
|
|
| |
|
|
| 8 9/16″ |
|
| 8 3/8″ |
|
|
| (217 mm) |
|
| |
| 6″ |
|
|
|
| (213 mm) |
| (152 mm) |
|
|
|
| |
8 9/16″ | 2 1/4″ | 8 3/8″ | 1 3/8″ |
| ||
(217 mm) | (35 mm) |
| ||||
Max. |
| (57 mm) | (213 mm) |
|
| 2 1/2″ |
|
| Max. | 1 1/4″ |
|
| (64 mm) |
| 1 1/16″ | Deck |
|
| ||
| 9 3/4 | ″ | Max. Deck | |||
| (27 mm) | Thickness | (32 mm) Min. | |||
|
| Thickness | ||||
| Dia. | 1 1/4″ | Hole Dia. | (248 mm) | ||
|
|
|
| |||
|
| (32 mm) |
|
|
| 3/8″ O.D. |
|
| Max. |
|
|
| Copper Tubing |
|
| Deck |
|
|
|
|
|
| Thickness | 1/2″ - 14 NPSM - Adapter |
| ||
|
|
|
| |||

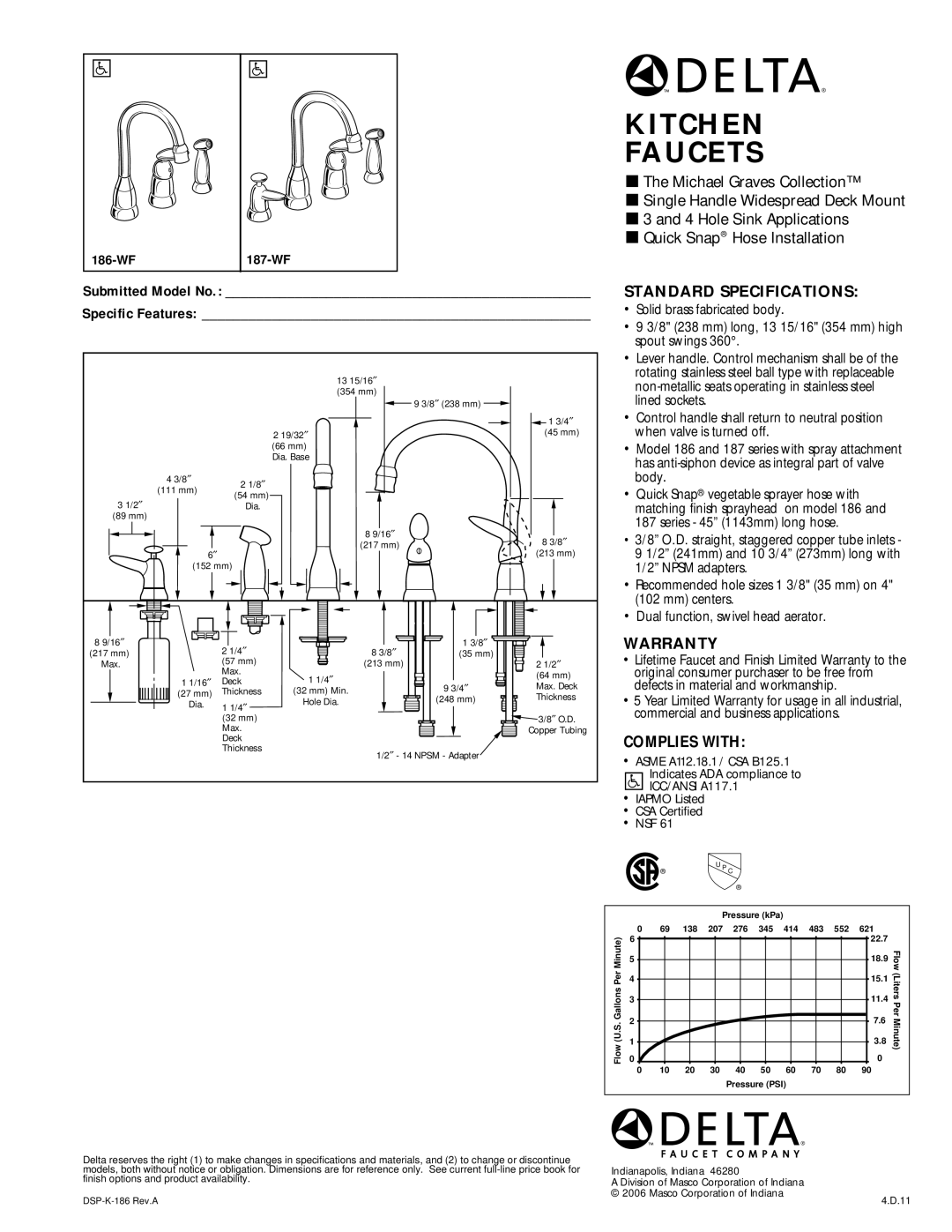

KITCHEN
FAUCETS
■The Michael Graves Collection™
■Single Handle Widespread Deck Mount
■3 and 4 Hole Sink Applications
■Quick Snap® Hose Installation
STANDARD SPECIFICATIONS:
•Solid brass fabricated body.
•9 3/8" (238 mm) long, 13 15/16" (354 mm) high spout swings 360°.
•Lever handle. Control mechanism shall be of the rotating stainless steel ball type with replaceable
•Control handle shall return to neutral position when valve is turned off.
•Model 186 and 187 series with spray attachment has
•Quick Snap® vegetable sprayer hose with matching finish sprayhead on model 186 and 187 series - 45” (1143mm) long hose.
•3/8” O.D. straight, staggered copper tube inlets - 9 1/2” (241mm) and 10 3/4” (273mm) long with 1/2” NPSM adapters.
•Recommended hole sizes 1 3/8" (35 mm) on 4" (102 mm) centers.
•Dual function, swivel head aerator.
WARRANTY
•Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
•5 Year Limited Warranty for usage in all industrial, commercial and business applications.
COMPLIES WITH:
•ASME A112.18.1/ CSA B125.1 Indicates ADA compliance to
ICC/ANSI A117.1
•IAPMO Listed
•CSA Certified
•NSF 61
® | U P | C |
®
Flow (U.S. Gallons Per Minute)
|
|
|
|
|
|
| Pressure (kPa) |
|
|
|
|
|
|
|
|
|
| ||||
0 | 69 | 138 | 207 | 276 | 345 | 414 | 483 | 552 | 621 |
| |||||||||||
6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 22.7 | Flow |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 18.9 | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| (Liters | |||
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 15.1 | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 11.4 | Per | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7.6 | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Minute) | |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3.8 | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 0 |
| |
0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| |||||||||||
|
|
|
|
|
|
|
| Pressure (PSI) |
|
|
|
|
|
|
|
| |||||
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current
Indianapolis, Indiana 46280
A Division of Masco Corporation of Indiana
© 2006 Masco Corporation of Indiana
4.D.11
