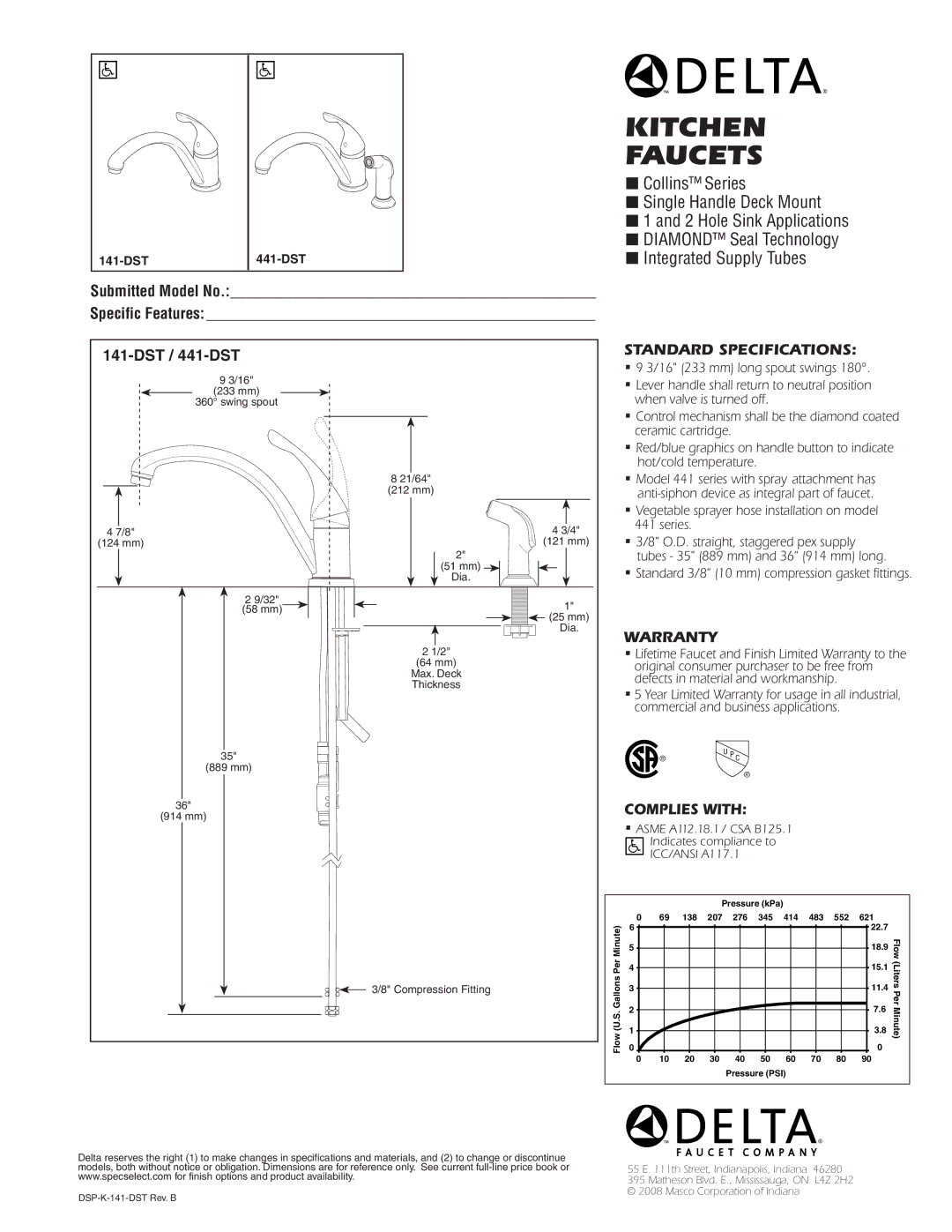

KITCHEN
FAUCETS
■Collins™ Series
■Single Handle Deck Mount
■1 and 2 Hole Sink Applications
■DIAMOND™ Seal Technology
■Integrated Supply Tubes
Submitted Model No.:_______________________________________________
Specific Features:___________________________________________________
|
| |
9 3/16" |
| |
(233 mm) |
| |
360° swing spout |
| |
| 8 21/64" | |
| (212 mm) | |
4 7/8" | 4 3/4" | |
(124 mm) | (121 mm) | |
| 2" | |
| (51 mm) | |
| Dia. | |
2 9/32" | 1" | |
(58 mm) | ||
(25 mm) | ||
| ||
| Dia. | |
| 2 1/2" | |
| (64 mm) | |
| Max. Deck | |
| Thickness | |
35" |
| |
(889 mm) |
| |
36" |
| |
(914 mm) |
| |
| 3/8" Compression Fitting |
STANDARD SPECIFICATIONS:
•9 3/16" (233 mm) long spout swings 180°.
•Lever handle shall return to neutral position when valve is turned off.
•Control mechanism shall be the diamond coated ceramic cartridge.
•Red/blue graphics on handle button to indicate hot/cold temperature.
•Model 441 series with spray attachment has
•Vegetable sprayer hose installation on model 441 series.
•3/8" O.D. straight, staggered pex supply tubes - 35" (889 mm) and 36" (914 mm) long.
•Standard 3/8" (10 mm) compression gasket fittings.WARRANTY
•Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
•5 Year Limited Warranty for usage in all industrial, commercial and business applications.
® | U P | C |
|
®
COMPLIES WITH:
•ASME A112.18.1 / CSA B125.1 Indicates compliance to
ICC/ANSI A117.1
|
|
|
|
|
|
| Pressure (kPa) |
|
|
|
|
|
|
|
|
|
| ||||
| 0 | 69 | 138 | 207 | 276 | 345 | 414 | 483 | 552 | 621 |
| ||||||||||
Minute) | 6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 22.7 | Flow |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 18.9 | |||
Gallons(U.S.Flow Per |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| (Liters PerMinute) | |||
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 0 | |||
| 4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 15.1 |
| |
| 3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 11.4 |
| |
| 2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 7.6 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
| 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3.8 |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
| ||||||||||
|
|
|
|
|
|
|
| Pressure (PSI) |
|
|
|
|
|
|
|
| |||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2 © 2008 Masco Corporation of Indiana
