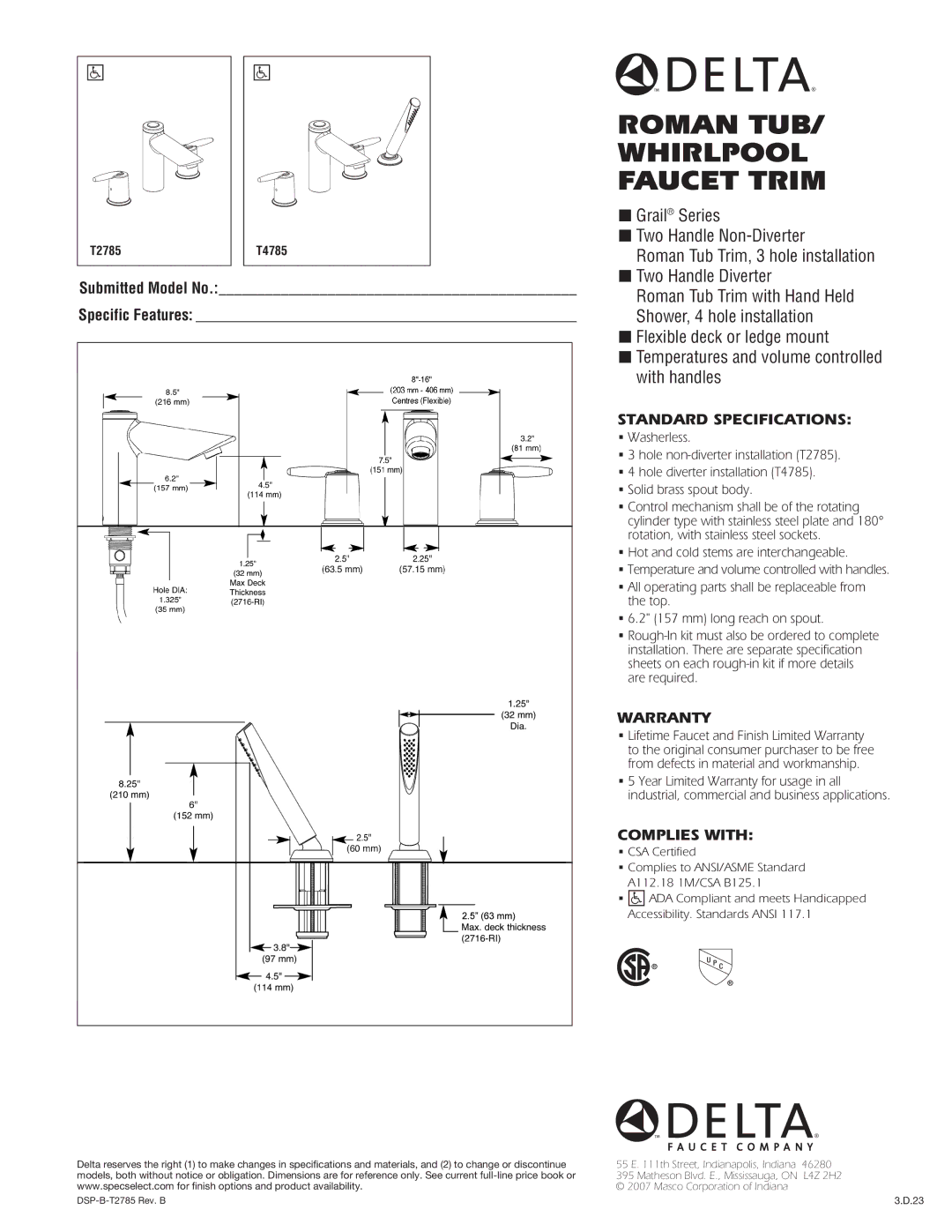

T2785 | T4785 |
Submitted Model No.:______________________________________________
Specific Features: _________________________________________________
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current
ROMAN TUB/
WHIRLPOOL
FAUCET TRIM
■Grail® Series
■Two Handle
Roman Tub Trim, 3 hole installation
■Two Handle Diverter
Roman Tub Trim with Hand Held Shower, 4 hole installation
■Flexible deck or ledge mount
■Temperatures and volume controlled with handles
STANDARD SPECIFICATIONS:
•Washerless.
•3 hole
•4 hole diverter installation (T4785).
•Solid brass spout body.
•Control mechanism shall be of the rotating cylinder type with stainless steel plate and 180° rotation, with stainless steel sockets.
•Hot and cold stems are interchangeable.
•Temperature and volume controlled with handles.
•All operating parts shall be replaceable from the top.
•6.2" (157 mm) long reach on spout.
•
WARRANTY
•Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
•5 Year Limited Warranty for usage in all industrial, commercial and business applications.
COMPLIES WITH:
•CSA Certified
•Complies to ANSI/ASME Standard A112.18 1M/CSA B125.1
• ADA Compliant and meets Handicapped Accessibility. Standards ANSI 117.1
U | P | C |
® |
|
®
55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2 © 2007 Masco Corporation of Indiana
3.D.23
