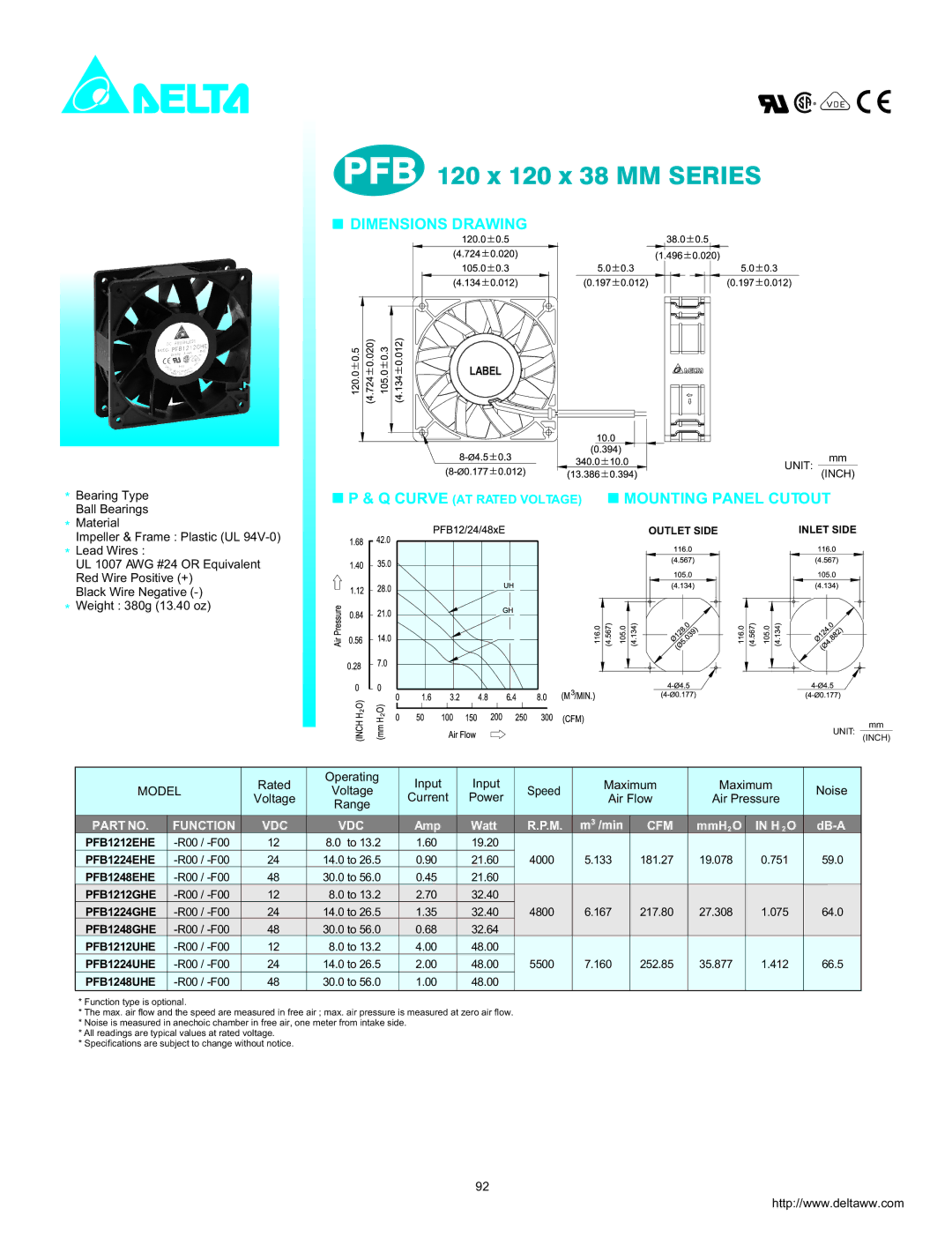

PFB 120 x 120 x 38 MM SERIES
DIMENSIONS DRAWING
LABEL
|
|
| mm |
|
|
| UNIT: |
|
|
| (INCH) |
* Bearing Type | P & Q CURVE (AT RATED VOLTAGE) | MOUNTING PANEL CUTOUT | |
Ball Bearings |
|
|
|
* Material |
| OUTLET SIDE | INLET SIDE |
Impeller & Frame : Plastic (UL |
|
|
|
* Lead Wires : |
|
|
|
UL 1007 AWG #24 OR Equivalent |
|
|
|
Red Wire Positive (+) |
|
|
|
Black Wire Negative |
|
|
|
* Weight : 380g (13.40 oz) |
|
|
|
|
|
|
|
|
|
|
|
|
|
| mm | |
|
|
|
|
|
|
|
|
|
|
| UNIT: | |
|
|
|
|
|
|
|
|
|
|
| (INCH) | |
|
| Rated | Operating | Input | Input |
| Maximum | Maximum |
| |||
MODEL | Voltage | Speed | Noise | |||||||||
Voltage | Current | Power | Air Flow | Air Pressure | ||||||||
|
| Range |
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
| ||
PART NO. | FUNCTION | VDC | VDC | Amp | Watt | R.P.M. |
| CFM | mmH2 O | IN H 2 O | ||
PFB1212EHE | 12 | 8.0 to 13.2 | 1.60 | 19.20 |
|
|
|
|
|
| ||
PFB1224EHE | 24 | 14.0 to 26.5 | 0.90 | 21.60 | 4000 | 5.133 | 181.27 | 19.078 | 0.751 | 59.0 | ||
PFB1248EHE | 48 | 30.0 to 56.0 | 0.45 | 21.60 |
|
|
|
|
|
| ||
PFB1212GHE | 12 | 8.0 to 13.2 | 2.70 | 32.40 |
|
|
|
|
|
| ||
PFB1224GHE | 24 | 14.0 to 26.5 | 1.35 | 32.40 | 4800 | 6.167 | 217.80 | 27.308 | 1.075 | 64.0 | ||
PFB1248GHE | 48 | 30.0 to 56.0 | 0.68 | 32.64 |
|
|
|
|
|
| ||
PFB1212UHE | 12 | 8.0 to 13.2 | 4.00 | 48.00 |
|
|
|
|
|
| ||
PFB1224UHE | 24 | 14.0 to 26.5 | 2.00 | 48.00 | 5500 | 7.160 | 252.85 | 35.877 | 1.412 | 66.5 | ||
PFB1248UHE | 48 | 30.0 to 56.0 | 1.00 | 48.00 |
|
|
|
|
|
| ||
*Function type is optional.
*The max. air flow and the speed are measured in free air ; max. air pressure is measured at zero air flow.
*Noise is measured in anechoic chamber in free air, one meter from intake side.
*All readings are typical values at rated voltage.
*Specifications are subject to change without notice.
