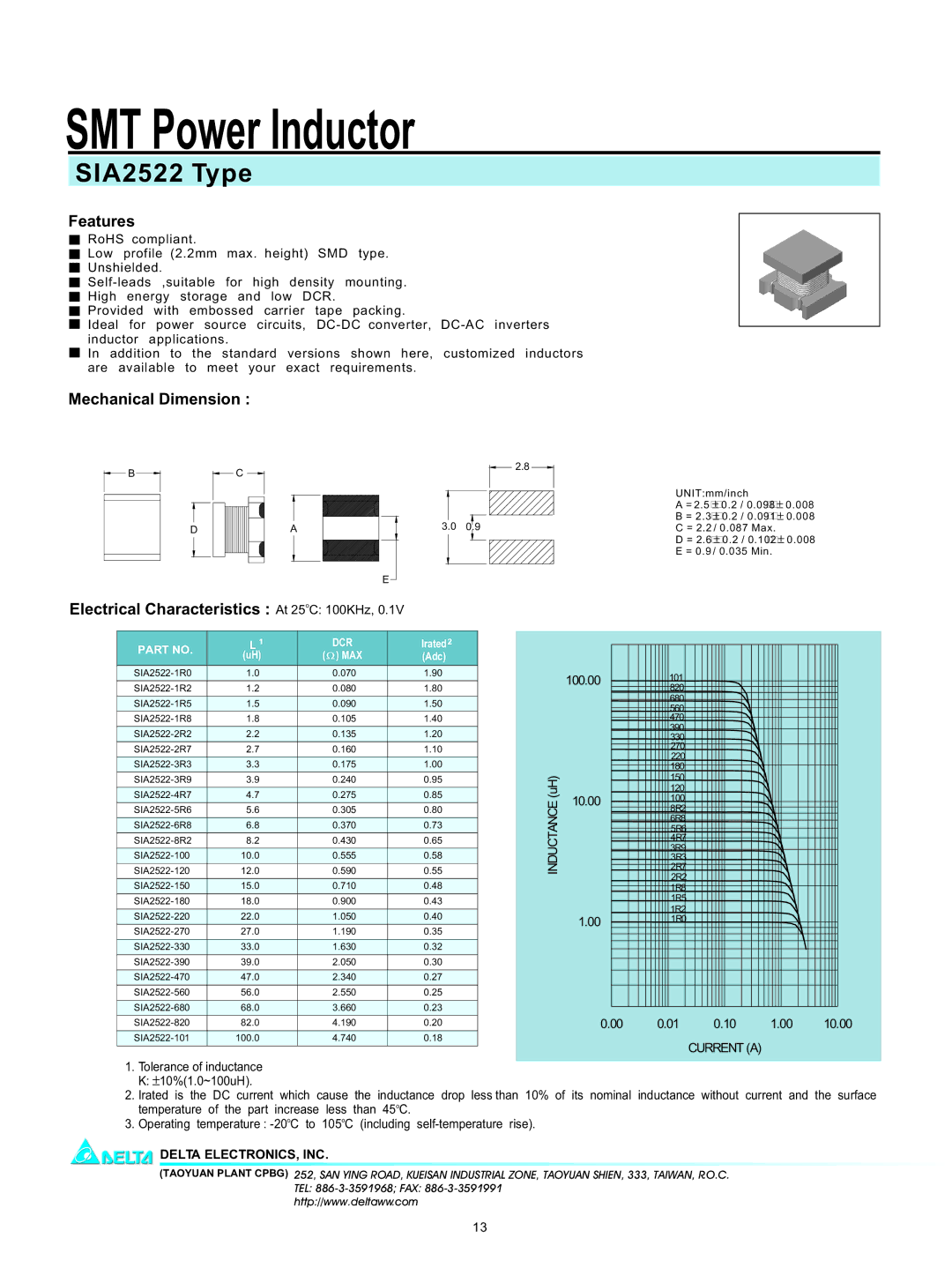

Page 1
Image 1
SMT Power Inductor

SMT Power Inductor

SIA2522 Type

Features

RoHS compliant.

Low profile (2.2mm max. height) SMD type.

Unshielded.

Self-leads ,suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Ideal for power source circuits, DC-DC converter, DC-AC inverters inductor applications.

In addition to the standard versions shown here, customized inductors are available to meet your exact requirements.

Mechanical Dimension :

SIA2522 Type 2.8 Features

B

C

D

A

3.0 0.9





E

UNIT:mm/inch

A= 2.5¡Ó0.2 / 0.098¡ÓMechanical Dimension : 0.008

B= 2.3¡Ó0.2 / 0.091¡ÓElectrical Characteristics : At 25oC: 100KHz, 0.1V 0.008

C= 2.2 / 0.087 Max.

D= 2.6¡Ó 0.2 / 0.102¡Ó DELTA ELECTRONICS, INC. 0.008

E= 0.9 / 0.035 Min.

Electrical Characteristics : At 25oC: 100KHz, 0.1V

PART NO.

L 1

DCR

Irated2

(uH)

( ) MAX

(Adc)



SIA2522-1R0

1.0

0.070

1.90

SIA2522-1R2

1.2

0.080

1.80

SIA2522-1R5

1.5

0.090

1.50

SIA2522-1R8

1.8

0.105

1.40

SIA2522-2R2

2.2

0.135

1.20

SIA2522-2R7

2.7

0.160

1.10

SIA2522-3R3

3.3

0.175

1.00

SIA2522-3R9

3.9

0.240

0.95

SIA2522-4R7

4.7

0.275

0.85

SIA2522-5R6

5.6

0.305

0.80

SIA2522-6R8

6.8

0.370

0.73

SIA2522-8R2

8.2

0.430

0.65

SIA2522-100

10.0

0.555

0.58

SIA2522-120

12.0

0.590

0.55

SIA2522-150

15.0

0.710

0.48

SIA2522-180

18.0

0.900

0.43

SIA2522-220

22.0

1.050

0.40

SIA2522-270

27.0

1.190

0.35

SIA2522-330

33.0

1.630

0.32

SIA2522-390

39.0

2.050

0.30

SIA2522-470

47.0

2.340

0.27









SIA2522-560

56.0

2.550

0.25

SIA2522-680

68.0

3.660

0.23

SIA2522-820

82.0

4.190

0.20









SIA2522-101

100.0

4.740

0.18









100.00

820

560

470





220





180

(uH)



150



120

INDUCTANCE

10.00

100



6R8





5R6

4R7

3R9

2R7

2R2

1R8

1R2

1.001R0

0.00 0.01 0.10 1.00 10.00

CURRENT (A)

1.Tolerance of inductance

K:Manual background10%(1.0~100uH).

2.Irated is the DC current which cause the inductance drop less than 10% of its nominal inductance without current and the surface temperature of the part increase less than 45oC.

3.Operating temperature : -20oC to 105oC (including self-temperature rise).

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com
