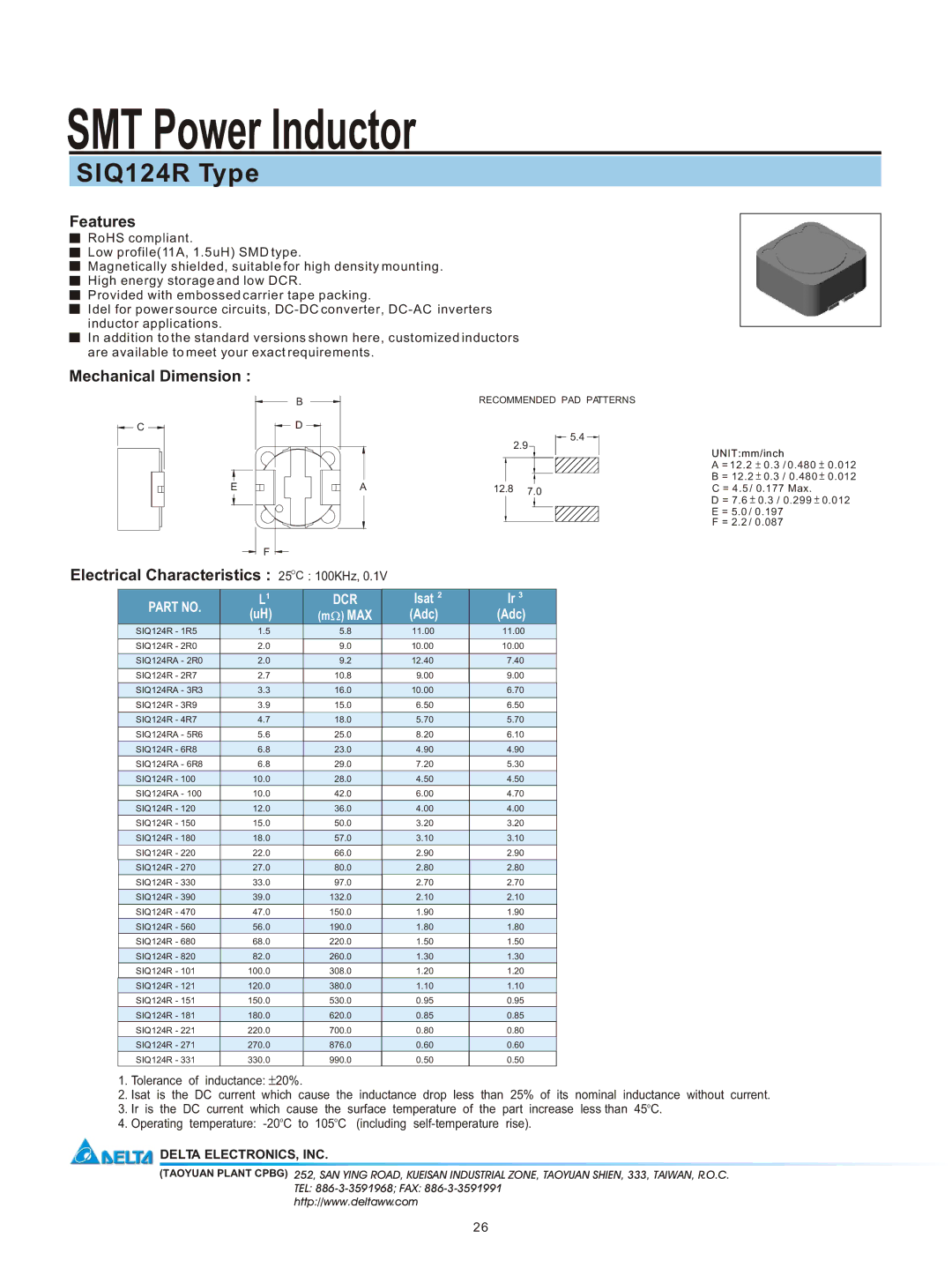

SMT Power Inductor

SIQ124R Type

Features

RoHS compliant.

Low profile(11A, 1.5uH) SMD type.

Magnetically shielded, suitable for high density mounting.

High energy storage and low DCR.

Provided with embossed carrier tape packing.

Idel for power source circuits, DC-DC converter, DC-AC inverters inductor applications.

In addition to the standard versions shown here, customized inductors are available to meet your exact requirements.

Mechanical Dimension :

C

E

B¡Ó

D¡Ó

F

RECOMMENDED PAD PATTERNS

	2.9	5.4
		UNIT:mm/inch
		A = 12.2 0.3 / 0.480		0.012
A¡Ó		B = 12.2 0.3 / 0.480		0.012
	12.8 7.0	C = 4.5 / 0.177 Max.		0.012
		D = 7.6 0.3 / 0.299
		E = 5.0	/ 0.197
		F = 2.2	/ 0.087

Electrical Characteristics : 25OC : 100KHz, 0.1V

PART NO.

SIQ124R - 1R5

SIQ124R - 2R0

SIQ124RA - 2R0

SIQ124R - 2R7

SIQ124RA - 3R3

SIQ124R - 3R9

SIQ124R - 4R7

SIQ124RA - 5R6

SIQ124R - 6R8

SIQ124RA - 6R8

SIQ124R - 100

SIQ124RA - 100

SIQ124R - 120

SIQ124R - 150

SIQ124R - 180

SIQ124R - 220

SIQ124R - 270

SIQ124R - 330

SIQ124R - 390

SIQ124R - 470

SIQ124R - 560

SIQ124R - 680

SIQ124R - 820

SIQ124R - 101

SIQ124R - 121

SIQ124R - 151

SIQ124R - 181

SIQ124R - 221

SIQ124R - 271

SIQ124R - 331

L1	DCR
(uH)	(m ) MAX

1.55.8

2.09.0

2.09.2

2.710.8

3.316.0

3.915.0

4.718.0

5.625.0

6.823.0

6.829.0

10.028.0

10.042.0

12.036.0

15.050.0

18.057.0

22.066.0

27.080.0

33.097.0

39.0132.0

47.0150.0

56.0190.0

68.0220.0

82.0260.0

100.0308.0

120.0380.0

150.0530.0

180.0620.0

220.0700.0

270.0876.0

330.0990.0

Isat 2	Ir 3
(Adc)	(Adc)

11.0011.00

10.0010.00

12.407.40

9.009.00

10.006.70

6.506.50

5.705.70

8.206.10

4.904.90

7.205.30

4.504.50

6.004.70

4.004.00

3.203.20

3.103.10

2.902.90

2.802.80

2.702.70

2.102.10

1.901.90

1.801.80

1.501.50

1.301.30

1.201.20

1.101.10

0.950.95

0.850.85

0.800.80

0.600.60

0.500.50

1.Tolerance of inductance: 20%.

2.Isat is the DC current which cause the inductance drop less than 25% of its nominal inductance without current.

3.	Ir is the	DC current which cause the	surface temperature of the part increase less than 45oC.
4.	Operating	temperature: -20oC to 105oC	(including self-temperature rise).
